سلسلة عربات الطعام المصنوعة من الفولاذ المقاوم للصدأ (عرض 750-950 مم)

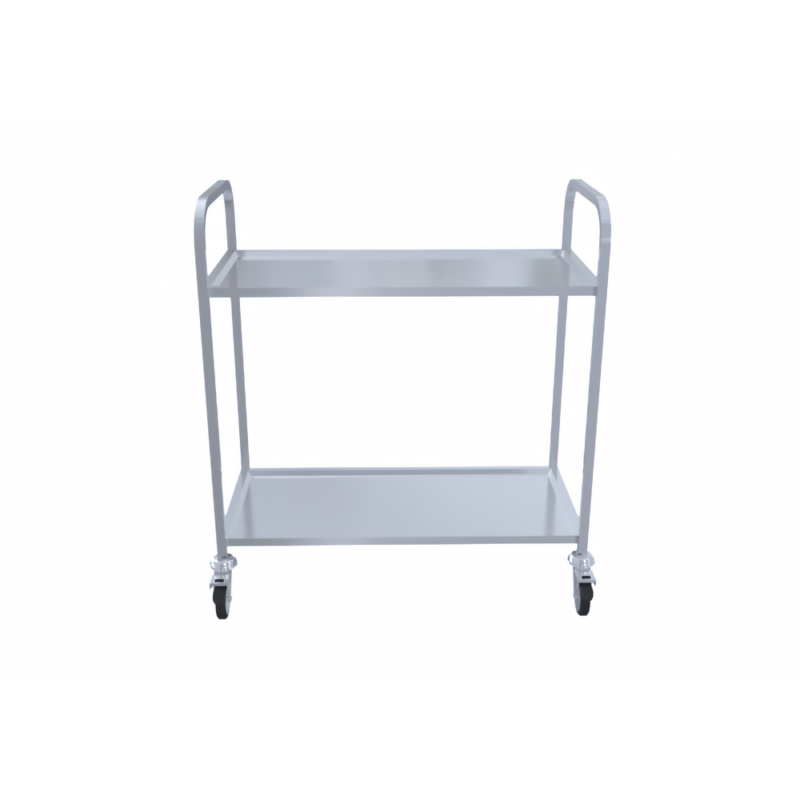

⁦Stainless Steel Food Trolley Series (750–950 mm Width)⁩ - الصورة ⁦2⁩

سلسلة عربات الطعام المصنوعة من الفولاذ المقاوم للصدأ (عرض 750-950 مم)

This stainless steel food trolley series includes two-layer and three-layer models with widths from 750 mm to 950 mm. Each trolley features 1.0 mm 304-grade stainless steel platforms, a 38 × 38 × 1.0 mm stainless steel frame, reinforcement ribs, and four 4-inch silent swivel casters for meal delivery and food transport in restaurants, hotels, and canteens.

    طلب عرض أسعار

    أدخل بريدك الإلكتروني وسنعاود الاتصال بك قريباً.

    الفئات: , العلامة التجارية:

    This stainless steel food trolley series is designed for meal delivery, plate transport, food service, and tableware handling in restaurants, hotels, banquet halls, canteens, healthcare facilities, and commercial foodservice operations. The trolley structure helps operators move prepared meals, dishes, and serving items conveniently between kitchen preparation areas and dining zones.

    The series includes two-layer and three-layer food trolley models, with width options of 750 mm, 850 mm, and 950 mm. The two-layer configuration is suitable for lighter transport needs and compact service corridors, while the three-layer configuration provides additional loading capacity for higher-volume meal delivery and peak service periods.

    The trolley body is manufactured from 304-grade stainless steel plate. The loading platforms use 1.0 mm thick stainless steel plate for durable daily use. The main frame structure is built with 38 × 38 × 1.0 mm stainless steel square tubes, providing a strong and stable trolley body. Reinforcement ribs made from 1.0 mm thick 304-grade stainless steel machined parts provide additional structural support for heavy-duty commercial transport. Four 4-inch high-quality silent swivel casters are fitted to the base for smooth movement and quiet operation. Overall manufacturing tolerance is ±5 mm.

    ميزات المنتج

    • Designed for meal delivery, food transport, and tableware handling in commercial foodservice environments.
    • Available in two-layer and three-layer configurations to match different service volumes.
    • Width options of 750 mm, 850 mm, and 950 mm suit varied space and capacity requirements.
    • 1.0 mm thick 304-grade stainless steel loading platforms.
    • 38 × 38 × 1.0 mm stainless steel square tube main frame structure.
    • 1.0 mm thick 304-grade stainless steel reinforcement ribs for added stability.
    • Four 4-inch high-quality silent swivel casters for smooth and quiet movement.
    • تفاوت التصنيع الكلي هو ± 5 مم.

    مجالات التطبيق

    Suitable for restaurants, hotels, banquet halls, canteens, catering kitchens, healthcare facilities, food courts, and other commercial foodservice areas requiring reliable meal transport trolleys.

    رقم الموديل اسم المنتج Trolley Type التكوين الرئيسي أبعاد المنتج صورة المنتج
    HYL-CK-SS-C07 Three-Layer Food Trolley Three-layer meal transport 1.0 mm 304-grade stainless steel platforms; 38 × 38 × 1.0 mm stainless steel frame; 1.0 mm 304-grade reinforcement ribs; four 4-inch silent swivel casters 750 × 400 × 835 مم HYL-CK-SS-C07 Three-Layer Food Trolley
    HYL-CK-SS-C08 Three-Layer Food Trolley Three-layer meal transport 1.0 mm 304-grade stainless steel platforms; 38 × 38 × 1.0 mm stainless steel frame; 1.0 mm 304-grade reinforcement ribs; four 4-inch silent swivel casters 850 × 450 × 900 مم HYL-CK-SS-C08 Three-Layer Food Trolley
    HYL-CK-SS-C09 Three-Layer Food Trolley Three-layer meal transport 1.0 mm 304-grade stainless steel platforms; 38 × 38 × 1.0 mm stainless steel frame; 1.0 mm 304-grade reinforcement ribs; four 4-inch silent swivel casters 950 × 500 × 950 مم HYL-CK-SS-C09 Three-Layer Food Trolley
    HYL-CK-SS-C10 Two-Layer Food Trolley Two-layer meal transport 1.0 mm 304-grade stainless steel platforms; 38 × 38 × 1.0 mm stainless steel frame; 1.0 mm 304-grade reinforcement ribs; four 4-inch silent swivel casters 750 × 400 × 835 مم HYL-CK-SS-C10 Two-Layer Food Trolley
    HYL-CK-SS-C11 Two-Layer Food Trolley Two-layer meal transport 1.0 mm 304-grade stainless steel platforms; 38 × 38 × 1.0 mm stainless steel frame; 1.0 mm 304-grade reinforcement ribs; four 4-inch silent swivel casters 850 × 450 × 900 مم HYL-CK-SS-C11 Two-Layer Food Trolley
    HYL-CK-SS-C12 Two-Layer Food Trolley Two-layer meal transport 1.0 mm 304-grade stainless steel platforms; 38 × 38 × 1.0 mm stainless steel frame; 1.0 mm 304-grade reinforcement ribs; four 4-inch silent swivel casters 950 × 500 × 950 مم HYL-CK-SS-C12 Two-Layer Food Trolley

    التكوين الفني

    عنصر التكوين تفاصيل السلسلة
    Trolley Type Options Two-layer and three-layer food trolley models are available
    Available Widths 750 mm, 850 mm, and 950 mm width options
    مواد المنصة 1.0 mm thick 304-grade stainless steel plate
    Frame Structure 38 × 38 × 1.0 mm stainless steel square tube
    التعزيز 1.0 mm thick 304-grade stainless steel machined reinforcement ribs
    تهيئة العجلات أربع عجلات دوارة صامتة عالية الجودة مقاس 4 بوصة
    تحمل التصنيع ± 5 مم
    نوع التثبيت عربة متنقلة قائمة بذاتها مزودة بعجلات
