活性炭除臭净化器系列（4000-60000 m³/h）

活性炭除臭净化器系列（4000-60000 m³/h）

This activated carbon odor removal purifier series includes ten models for commercial kitchen exhaust deodorization with rated air volumes from 4000 m³/h to 60000 m³/h. All models feature a uniform cabinet cross-section of 900 × 1000 × 700 mm with 600 × 480 mm inlet and outlet flanges, replaceable activated carbon media beds, and 900 mm front service clearance, suitable for restaurants, hotel kitchens, central kitchens, and food courts.

    申请报价

    请输入您的电子邮件地址，我们将尽快给您回复。

    分类： , 品牌：

    This activated carbon odor removal purifier series is designed for adsorption-based deodorization of cooking exhaust air in commercial kitchen ventilation systems. It is suitable for restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, food courts, school kitchens, factory dining halls, and other foodservice environments where residual cooking odors and volatile organic compounds must be treated before atmospheric discharge.

    The series includes ten models with rated air volume capacities from 4000 m³/h to 60000 m³/h. All models share a uniform cabinet cross-section dimension, with differing internal activated carbon bed configurations to match the required treatment capacity and contact time. The units are designed for in-line ductwork installation downstream of primary grease removal or electrostatic filtration equipment, serving as a final polishing stage for odor control in low-level commercial kitchen exhaust systems.

    Each unit is constructed with a welded enclosure frame housing replaceable activated carbon media beds. The inlet and outlet flanges are uniformly sized at 600 × 480 mm for all models, simplifying ductwork connection. A front service clearance of 900 mm must be reserved before the access door for routine carbon media inspection and replacement. No electrical power supply is required for the adsorption process itself.

    产品特点

    • Designed for adsorption-based odor removal and deodorization of commercial kitchen exhaust air.
    • 十种型号，额定风量从 4000 m³/h 到 60000 m³/h 不等。
    • Uniform cabinet cross-section across all models for simplified installation planning.
    • Inlet and outlet flange size of 600 × 480 mm for all units in the series.
    • Replaceable activated carbon media beds for ongoing maintenance.
    • Front service clearance of 900 mm required for carbon media access.
    • No electrical power required for the adsorption process.
    • Welded enclosure frame designed for in-line ductwork installation.

    应用领域

    Suitable for restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, food courts, school kitchens, factory dining halls, and other commercial foodservice environments requiring activated carbon odor removal as a final exhaust air polishing stage.

    型号 产品名称 空气量 产品尺寸 Flange Size 产品图像

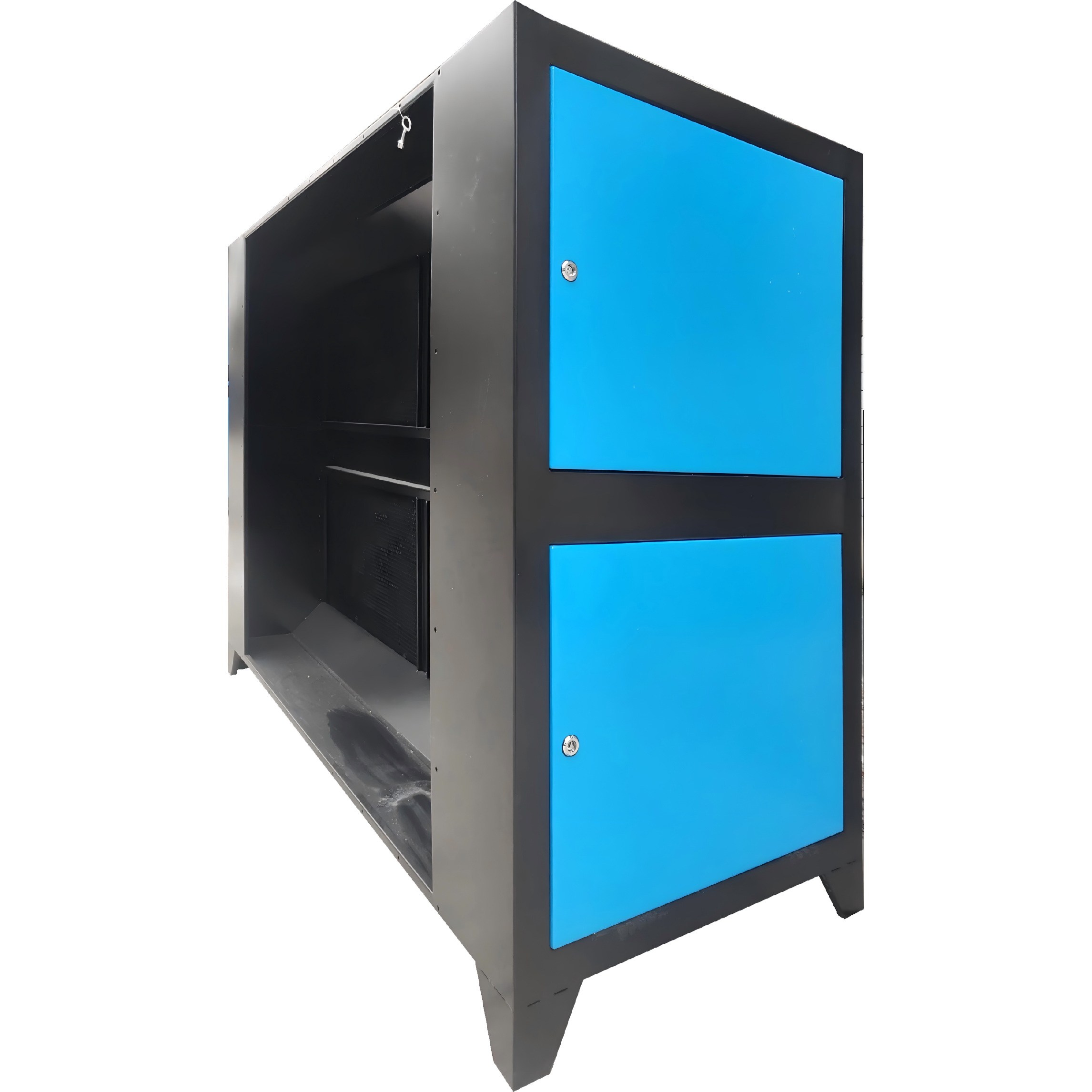

    HYL-CK-PF-HXT01 Activated Carbon Odor Remover 4000 m³/h 4000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT01 Activated Carbon Odor Remover 4000 m³/h
    HYL-CK-PF-HXT02 Activated Carbon Odor Remover 6000 m³/h 6000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT02 Activated Carbon Odor Remover 6000 m³/h
    HYL-CK-PF-HXT03 Activated Carbon Odor Remover 8000 m³/h 8000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT03 Activated Carbon Odor Remover 8000 m³/h
    HYL-CK-PF-HXT04 Activated Carbon Odor Remover 12000 m³/h 12000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT04 Activated Carbon Odor Remover 12000 m³/h
    HYL-CK-PF-HXT05 Activated Carbon Odor Remover 16000 m³/h 16000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT05 Activated Carbon Odor Remover 16000 m³/h
    HYL-CK-PF-HXT06 Activated Carbon Odor Remover 24000 m³/h 24000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT06 Activated Carbon Odor Remover 24000 m³/h
    HYL-CK-PF-HXT07 Activated Carbon Odor Remover 32000 m³/h 32000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT07 Activated Carbon Odor Remover 32000 m³/h
    HYL-CK-PF-HXT08 Activated Carbon Odor Remover 40000 m³/h 40000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT08 Activated Carbon Odor Remover 40000 m³/h
    HYL-CK-PF-HXT09 Activated Carbon Odor Remover 48000 m³/h 48000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT09 Activated Carbon Odor Remover 48000 m³/h
    HYL-CK-PF-HXT10 Activated Carbon Odor Remover 60000 m³/h 60000 立方米/小时 900 × 1000 × 700 mm 600 × 480 mm HYL-CK-PF-HXT10 Activated Carbon Odor Remover 60000 m³/h

    技术配置

    配置项目 系列详情
    净化方法 Activated carbon adsorption for odor removal and deodorization of cooking exhaust air
    风量范围 4000 m³/h 至 60000 m³/h 额定处理能力
    Cabinet Dimensions 900 × 1000 × 700 mm uniform cross-section for all models
    Flange Size 600 × 480 mm inlet and outlet flange for all models
    服务清理 Front access door requires 900 mm maintenance clearance for all models
    Media Type Replaceable activated carbon media beds
    安装类型 In-line ductwork installation downstream of primary grease removal or electrostatic filtration equipment
