喷淋式圆筒制冰机系列（55-110 公斤/天）

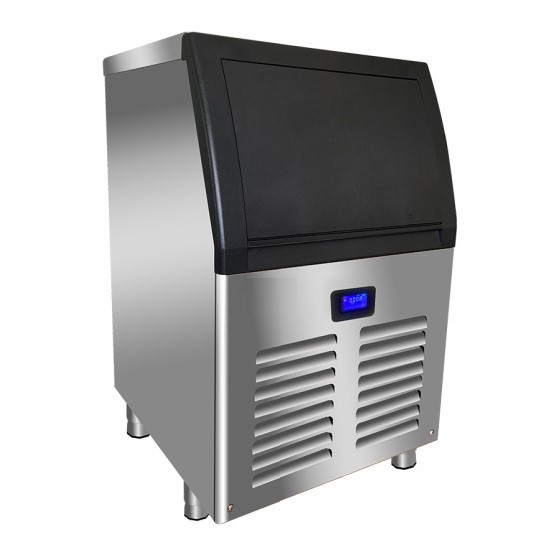

This spray-type cylindrical ice machine series includes three commercial models with daily ice production capacities ranging from 55 kg to 110 kg. Built-in ice storage capacities range from 10 kg to 20 kg, making the series suitable for commercial beverage service areas that require stable cylindrical ice supply.

The series uses a spray-type ice making system to produce clear and hard round cylindrical ice. Water is sprayed onto the evaporator surface and frozen layer by layer, while hot gas defrosting helps release the ice efficiently. This process helps improve ice clarity, hardness, and overall beverage presentation.

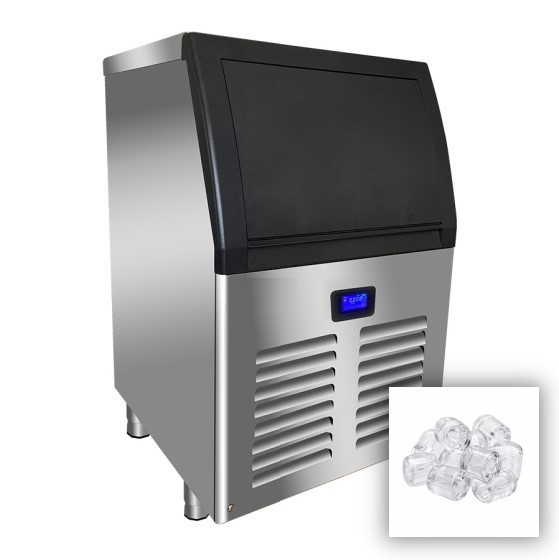

The machine produces round cylindrical ice with a standard ice size of 33 × 33 × 30 mm and an approximate weight of 15 g per piece. This ice type is suitable for bars, clubs, hotels, KTV venues, lounges, and other high-end beverage service environments where attractive ice appearance and clean ice quality are important.

冰规格

• Ice type: round cylindrical ice.
• Ice size: 33 × 33 × 30 mm.
• Approximate ice weight: 15 g.

测试条件

• 环境温度：21°C。
• 进水温度10°C.

Spray-Type Ice Making Principle

• The spray system distributes water evenly onto the evaporator surface through spray nozzles.
• The water freezes layer by layer on the evaporator surface to form clear and solid cylindrical ice.
• Hot gas defrosting helps release the finished ice efficiently after the freezing cycle.
• The dynamic water flow helps remove air bubbles during freezing, improving ice transparency and hardness.

Product Advantages

• High-quality ice with clear appearance and hard texture, suitable for premium beverage service.
• Dynamic water circulation helps reduce air bubbles and improve ice clarity.
• Efficient water circulation design helps reduce water consumption compared with traditional methods.
• Suitable for commercial locations that require stable cylindrical ice production.

应用领域

Suitable for bars, clubs, hotels, KTV venues, business lounges, premium beverage shops, and other commercial places that require clear cylindrical ice for drink service.
