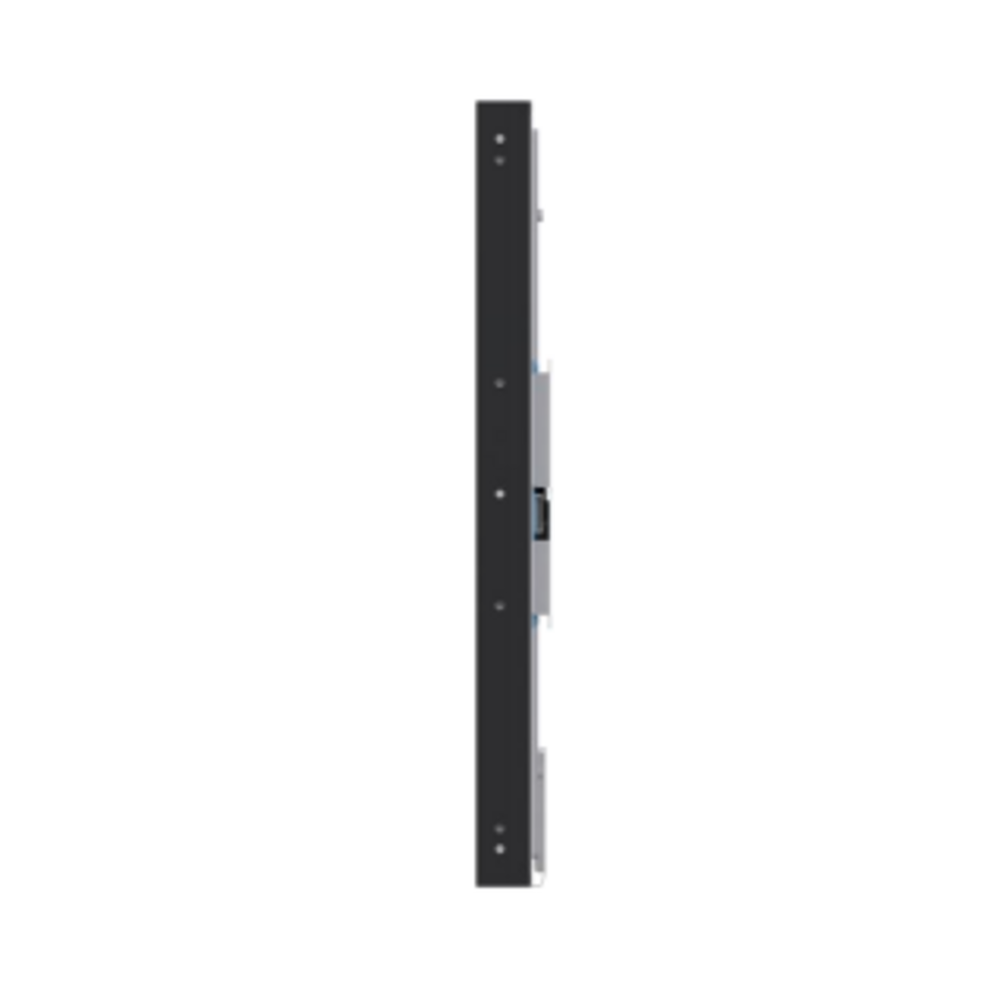

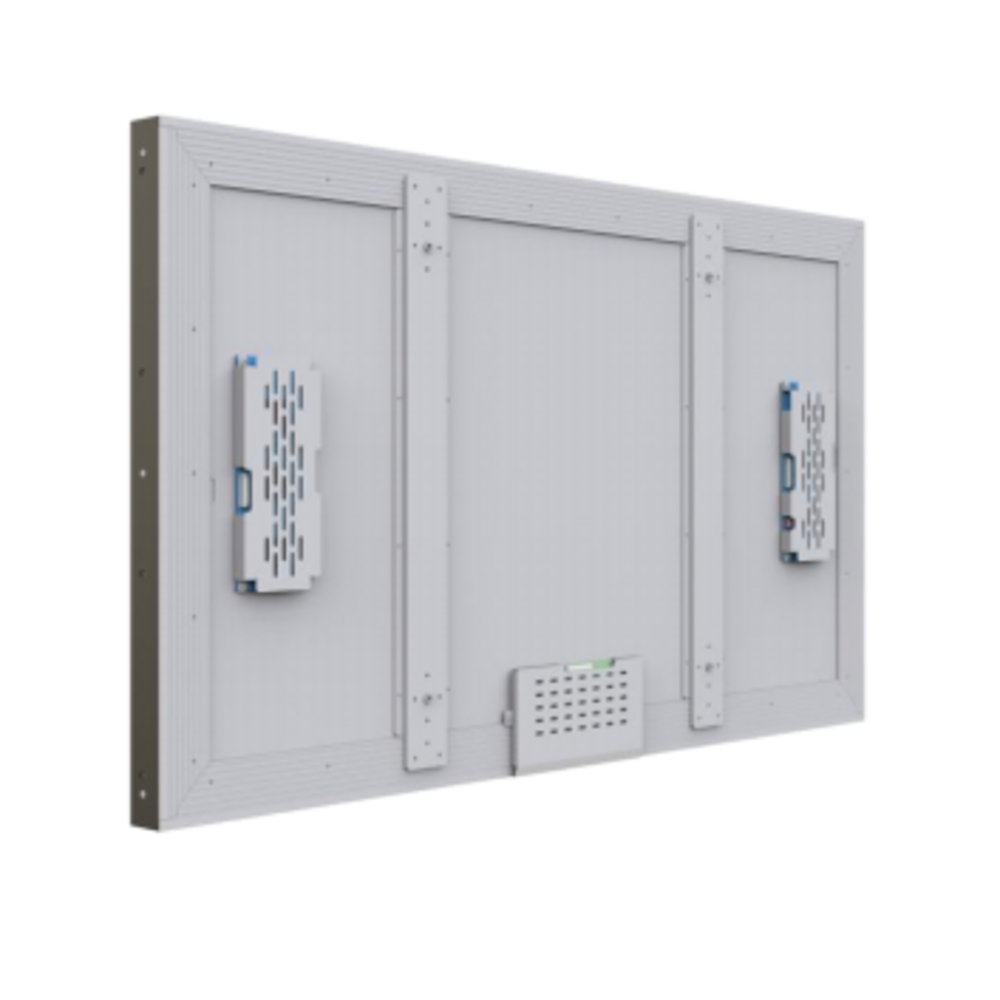

Product Overview
The 43-Inch Outdoor High-Brightness LCD Module Series is designed for professional display integration projects that require sunlight readability, stable continuous operation, and flexible resolution and brightness selection. The series includes Full HD and 4K configurations with brightness options from 1000 nits to 3000 nits.
Four LCD panel platforms are available: Full HD Standard, Full HD 105°C Hi-Tni, 4K Standard, and 4K Wide-T. The different platforms allow projects to balance resolution, panel temperature grade, image performance, operating environment, power consumption, and budget.
The 1000 and 1500 nits models use an Edge-Lit (ELED) structure for a slimmer module profile, while the 2000 nits and higher-brightness models use a Direct-Lit (DLED) structure. All configurations are designed for integration into a properly protected enclosure and are not supplied as complete standalone IP-rated outdoor displays.
Product Features
- Full HD and 4K Options: Available in 1920 × 1080 Full HD and 3840 × 2160 4K UHD configurations.
- 1000–3000 Nits Brightness: Multiple brightness levels support different outdoor and strong ambient-light environments.
- Four LCD Panel Platforms: Full HD Standard, Full HD 105°C Hi-Tni, 4K Standard, and 4K Wide-T versions are available.
- Two Backlight Structures: 1000 / 1500 nits use Edge-Lit (ELED), while 2000 / 2500 / 3000 nits use Direct-Lit (DLED).
- Sunlight Readable: High-brightness backlight improves visibility in daylight and strong ambient-light environments.
- Manual or Automatic Dimming: Brightness adjustment is available from approximately 25% to 100% according to the selected control configuration.
- Wide Viewing Angle: Supports approximately +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
- Long Operating Lifetime: Designed with an MTBF of approximately 50,000 hours for continuous commercial and industrial use.
- Outdoor Aluminum Structure: White aluminum module construction supports professional enclosure integration.
- Landscape and Portrait Installation: Supports horizontal or vertical integration according to the final display structure.
Configuration Options
| Model Number | Platform | Panel Grade | Resolution | Brightness | Power Consumption | Operating Temperature | Picture |
|---|---|---|---|---|---|---|---|
| HYL-DM430-LF01-10 | FHD Standard | 68°C Standard | 1920 × 1080 Full HD |
1000 nits | 74W | 0°C to 50°C |  |
| HYL-DM430-LF01-15 | 1500 nits | 124W | |||||
| HYL-DM430-LF01-20 | 2000 nits | 138W | |||||
| HYL-DM430-LF01-25 | 2500 nits | 185W | |||||
| HYL-DM430-LF01-30 | 3000 nits | 247W | |||||
| HYL-DM430-LF02-10 | FHD Hi-Tni | 105°C Hi-Tni | 1920 × 1080 Full HD |
1000 nits | 78W | -20°C to 70°C | |
| HYL-DM430-LF02-15 | 1500 nits | 131W | |||||
| HYL-DM430-LF02-20 | 2000 nits | 146W | |||||
| HYL-DM430-LF02-25 | 2500 nits | 196W | |||||
| HYL-DM430-LF02-30 | 3000 nits | 261W | |||||
| HYL-DM430-LU01-10 | 4K Standard | 68°C Standard | 3840 × 2160 4K UHD |
1000 nits | 119W | 0°C to 50°C | |
| HYL-DM430-LU01-15 | 1500 nits | 200W | |||||
| HYL-DM430-LU01-20 | 2000 nits | 220W | |||||
| HYL-DM430-LU02-10 | 4K Wide-T | 68°C Wide-T | 3840 × 2160 4K UHD |
1000 nits | 130W | 0°C to 50°C | |
| HYL-DM430-LU02-15 | 1500 nits | 219W | |||||
| HYL-DM430-LU02-20 | 2000 nits | 243W |
Technical Configuration
| Configuration Item | Series Details |
|---|---|
| Screen Size | 43 inch |
| Resolution Options | 1920 × 1080 Full HD / 3840 × 2160 4K UHD |
| Brightness Options | 1000 / 1500 / 2000 / 2500 / 3000 nits, depending on platform |
| LCD Platforms | LF01 FHD Standard / LF02 FHD Hi-Tni / LU01 4K Standard / LU02 4K Wide-T |
| Backlight Type | 1000 / 1500 nits: Edge-Lit (ELED); 2000 / 2500 / 3000 nits: Direct-Lit (DLED) |
| Refresh Rate | 60Hz |
| Dimming Mode | Manual or automatic brightness adjustment, approximately 25%–100% |
| Viewing Angle | +89/-89° horizontal and +89/-89° vertical typical |
| MTBF | Approximately 50,000 hours |
| Overall Dimensions | ELED: 973.20 × 561.40 × 27.30 mm; DLED: 976.00 × 564.20 × 52.50 mm |
| Weight | ELED: approx. 9 kg; DLED: approx. 11.8 kg |
| Structure | White aluminum outdoor module structure |
| Touch Panel | Not included as standard |
| AD Board | Not included as standard |
| Built-In Speaker | Not included as standard |
| IP Rating | None / None. The LCD module itself is not supplied with an IP rating. |
| Humidity | ≤90% |
| Warranty | 24 months |
| Application Areas | Outdoor kiosks, digital signage, transportation displays, industrial terminals, vending equipment, information systems, exhibitions, and customized display integration projects |
Panel & Resolution Comparison
| Comparison Item | LF01 FHD Standard |
LF02 FHD Hi-Tni |
LU01 4K Standard |
LU02 4K Wide-T |
|---|---|---|---|---|
| Open Cell | LC430DUY-SHA1 | DV430FHB-R00 | LC430EQC-STA1 | LD430EQQ-SNN1 |
| Panel Grade | 68°C Standard | 105°C Hi-Tni | 68°C Standard | 68°C Wide-T |
| Resolution | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 | 3840 × 2160 |
| Brightness Options | 1000 / 1500 / 2000 / 2500 / 3000 | 1000 / 1500 / 2000 / 2500 / 3000 | 1000 / 1500 / 2000 | 1000 / 1500 / 2000 |
| Active Area | 941.184 × 529.416 mm | 940.896 × 529.254 mm | 941.184 × 529.416 mm | 941.184 × 529.416 mm |
| Pixel Pitch | 0.4902 × 0.4902 mm | 0.49005 × 0.49005 mm | 0.2451 × 0.2451 mm | 0.2451 × 0.2451 mm |
| Display Colors | 8-bit / 16.7M | 8-bit / 16.7M | 10-bit / 1.07B | 10-bit / 1.07B |
| Response Time | 8 ms | 13 ms | 8 ms | 9 ms |
| Contrast Ratio | 1200:1 | 1200:1 | 1000:1 | 1000:1 |
| Color Gamut | Approx. 65% NTSC | Approx. 70% NTSC | Approx. 68% NTSC | Approx. 68% NTSC |
| Haze | 1% | 1% | 3% | 3% |
| Operating Temperature | 0°C to 50°C | -20°C to 70°C | 0°C to 50°C | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C | -30°C to 80°C | -20°C to 60°C | -20°C to 60°C |
Backlight & Mechanical Structure Comparison
| Brightness | Backlight Type | LF01 Power | LF02 Power | LU01 Power | LU02 Power | Overall Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 1000 nits | Edge-Lit (ELED) | 74W | 78W | 119W | 130W | 973.20 × 561.40 × 27.30 mm | 9 kg |
| 1500 nits | 124W | 131W | 200W | 219W | |||
| 2000 nits | Direct-Lit (DLED) | 138W | 146W | 220W | 243W | 976.00 × 564.20 × 52.50 mm | 11.8 kg |
| 2500 nits | 185W | 196W | — | — | |||
| 3000 nits | 247W | 261W | — | — |
Mechanical Drawing

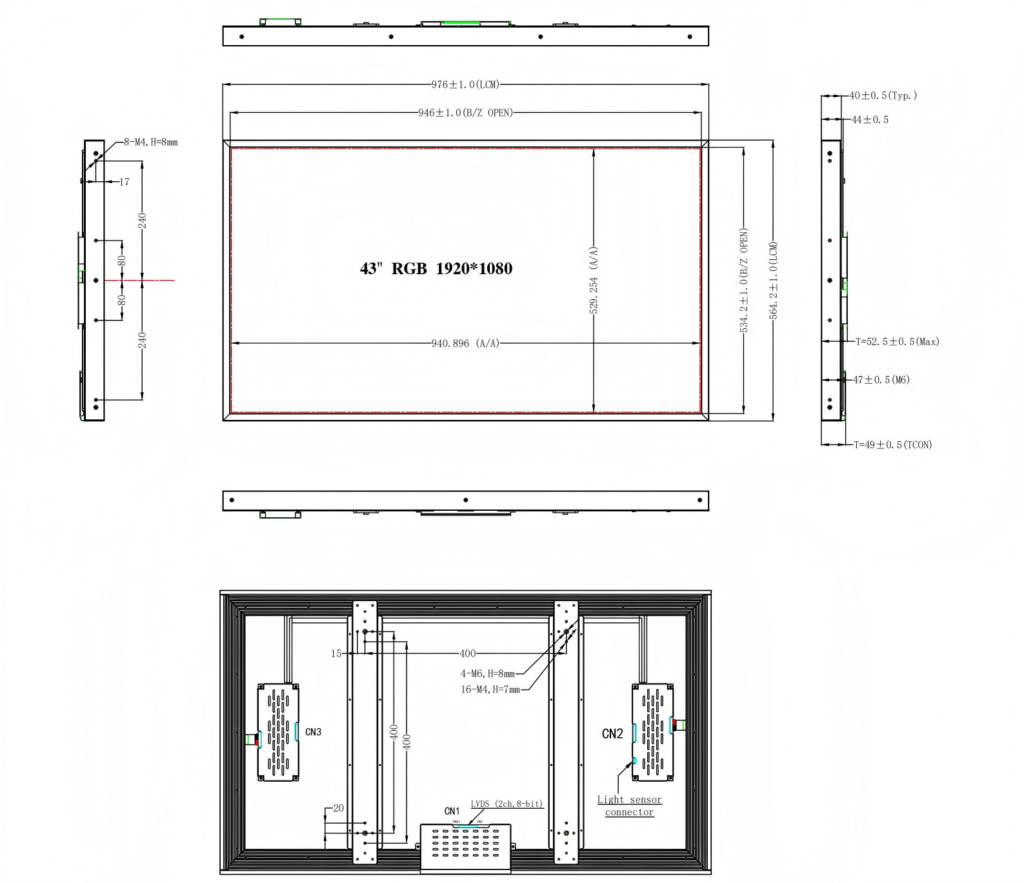

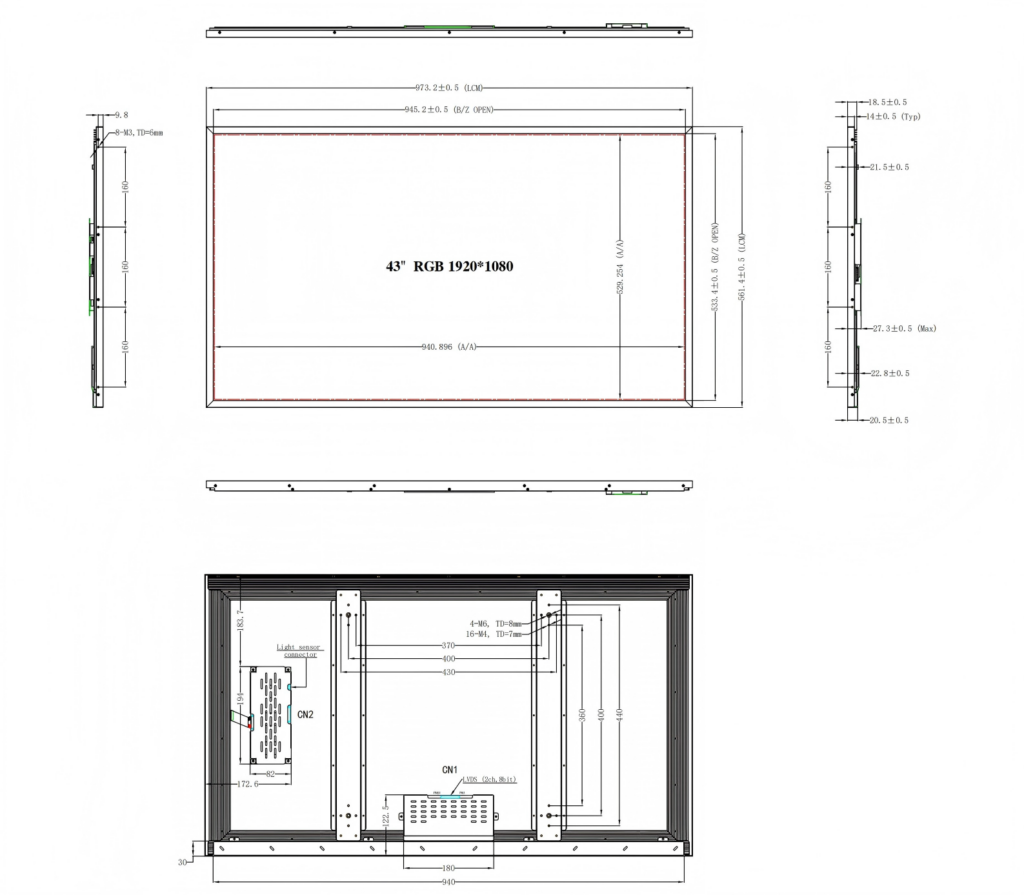

The 43-inch LCD series uses two mechanical structures: a slimmer Edge-Lit structure for 1000 and 1500 nits models, and a thicker Direct-Lit structure for 2000 nits and higher-brightness models. The LF02 Hi-Tni platform uses a slightly different active area from the LF01 / LU01 / LU02 platforms, so the corresponding mechanical drawing should be confirmed before enclosure design, system integration, or mass production.
