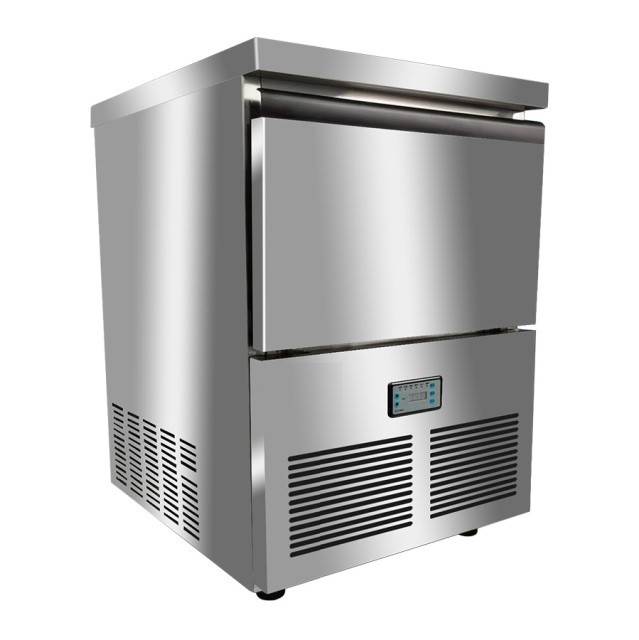

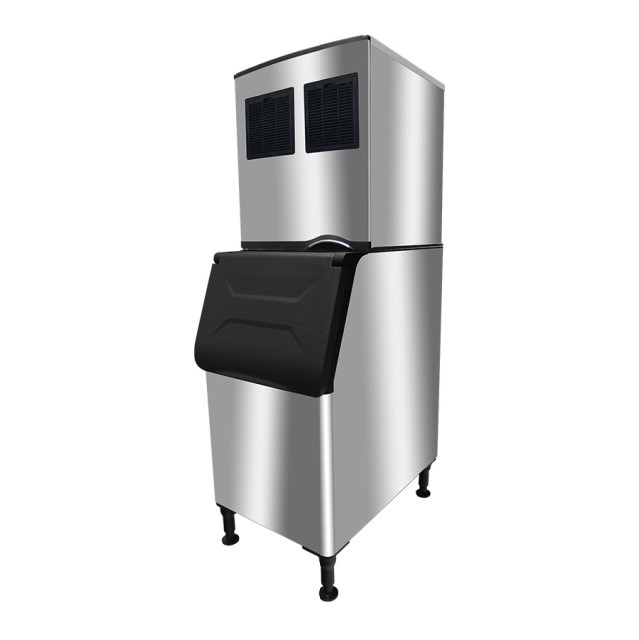

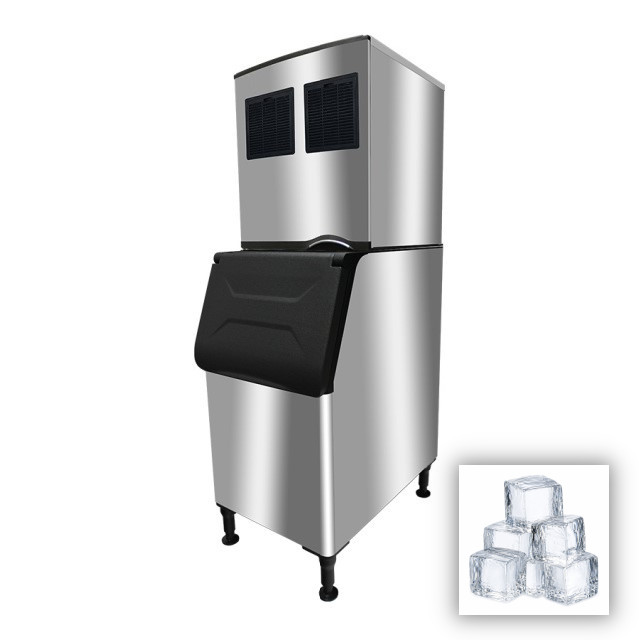

大冰块制冰机系列（80-227 公斤/天）

This large cube ice machine series includes two commercial models with daily ice production capacities ranging from 80 kg to 227 kg. Built-in ice storage capacities range from 18 kg to 210 kg, making the series suitable for bars, clubs, hotels, KTV venues, lounges, and other commercial beverage service areas that require high-quality large cube ice.

The series uses a spray-type ice making system to produce clear, hard, and transparent large cube ice. Water is sprayed onto the evaporator surface through spray nozzles and frozen layer by layer, while hot gas defrosting helps release the finished ice efficiently. This process helps improve ice clarity, hardness, and overall drink presentation.

The machine produces large cube ice with a standard ice size of 30 × 30 × 30 mm and an approximate weight of 23 g per cube. This ice type is suitable for whisky, cocktails, premium drinks, chilled beverage service, and other high-end applications where clear ice appearance and slower melting performance are important.

冰规格

• Ice type: large cube ice.
• Ice size: 30 × 30 × 30 mm.
• Approximate ice weight: 23 g.

测试条件

• 环境温度：21°C。
• 进水温度10°C.

Spray-Type Ice Making Principle

• The spray system distributes water evenly onto the evaporator surface through spray nozzles.
• The water freezes layer by layer on the evaporator surface to form clear and solid large cube ice.
• Hot gas defrosting helps release the finished ice efficiently after the freezing cycle.
• The dynamic water flow helps remove air bubbles during freezing, improving ice transparency and hardness.

Product Advantages

• High-quality ice with clear appearance and hard texture, suitable for premium beverage service.
• Dynamic water circulation helps reduce air bubbles and improve ice clarity.
• Efficient water circulation design helps reduce water consumption compared with traditional methods.
• Large cube ice melts more slowly, helping maintain drink flavor and presentation for longer service time.

应用领域

Suitable for bars, clubs, hotels, KTV venues, business lounges, premium beverage shops, whisky bars, cocktail bars, and other commercial places that require clear large cube ice for drink service.
