Single-Temperature & Dual-Temperature Mini Bar Faucet Series (430–560 mm)

This mini bar faucet series is designed for compact bar counters, beverage stations, coffee preparation areas, and light-duty sink rinsing tasks in restaurants, cafes, hotels, bars, and other commercial foodservice environments. The series includes single-hole single-temperature and single-hole dual-temperature deck-mounted models with a polished chrome-plated finish for everyday use.

The series includes four models configured for different installation requirements and operating heights. Single-temperature models are available in 430 mm and 560 mm operating height options, while dual-temperature models are available in the same operating height options. Selected models are additionally equipped with a 12-inch swing spout for extended rinsing coverage.

Each faucet is manufactured from cast brass with a polished chrome-plated surface finish for reliable daily use. The vertical tube pipe uses a quick-install design, making installation simple and efficient. A wall bracket with 150 mm ±5% length is included for stable deck mounting support. The water connection inlet uses 1/2 inch external thread for standard commercial installation.

产品特点

Designed for compact bar counters, beverage stations, coffee preparation areas, and light-duty sink rinsing tasks.
Available in single-hole single-temperature and single-hole dual-temperature deck-mounted configurations.
430 mm and 560 mm operating height options for different bar counter setups.
Selected models include a 12-inch swing spout for extended rinsing coverage.
Cast brass construction with polished chrome-plated surface finish.
Vertical tube pipe with quick-install design supports simple and efficient installation.
150 mm ±5% wall bracket length for stable deck mounting support.
1/2 inch external thread water connection inlet.

应用领域

Suitable for bar counters, cafes, restaurant beverage stations, hotel bar areas, coffee shop counters, tea preparation stations, and other commercial foodservice areas that require compact single-hole deck-mounted faucets.

型号	产品名称	Faucet Type	Mounting Hole Size	Operating Height	Spout Configuration

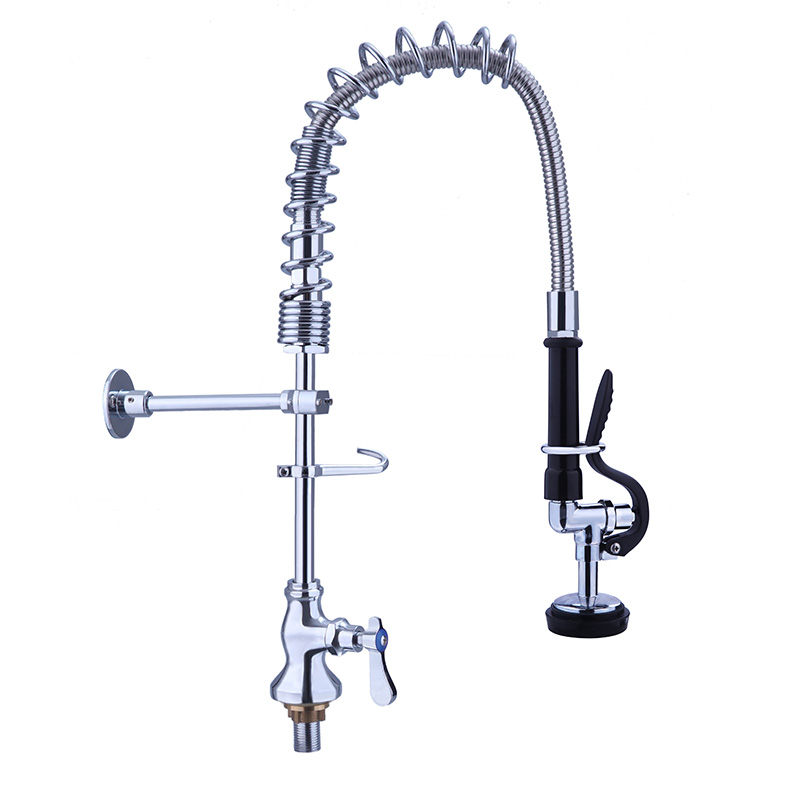

HYL-CK-FT-HS11	Single-Temperature Mini Bar Faucet (Low)	Single-hole single-temperature	25 mm	430 mm ±5%	Standard spout

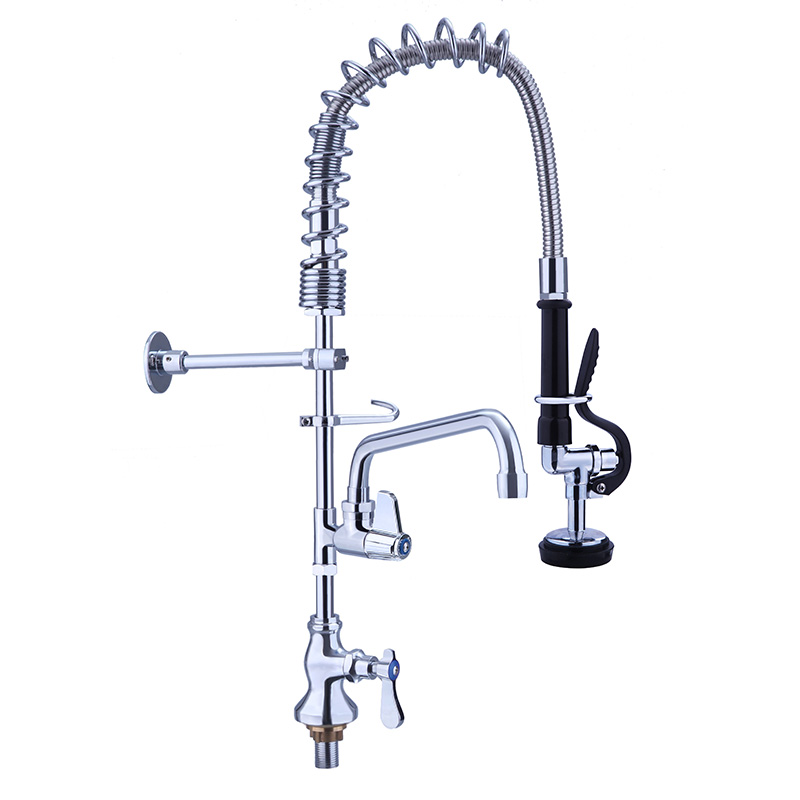

HYL-CK-FT-HS12	Single-Temperature Mini Bar Faucet (High)	Single-hole single-temperature	25 mm	560 mm ±5%	12-inch swing spout included

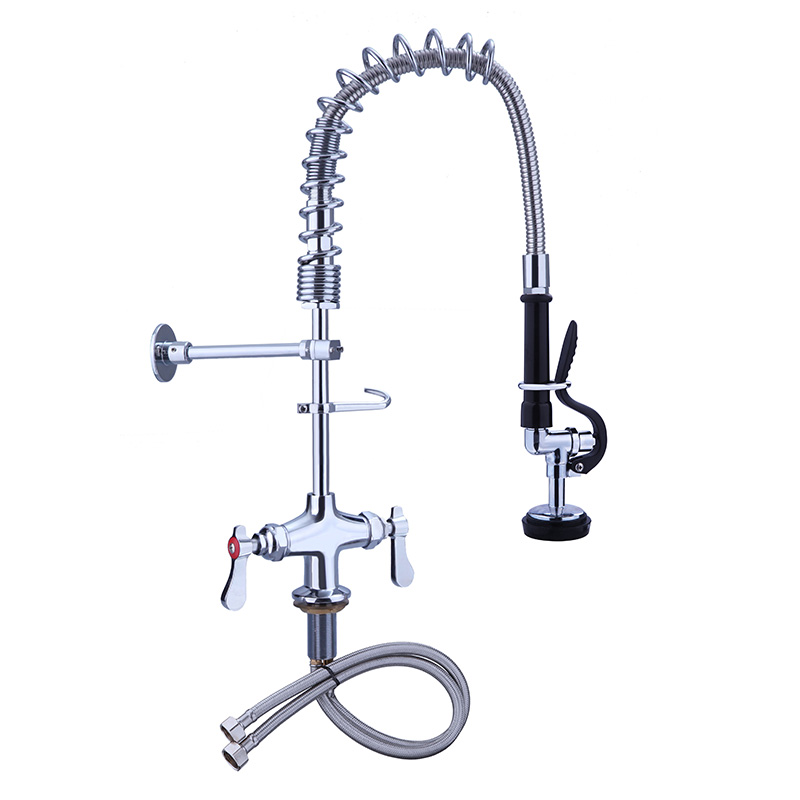

HYL-CK-FT-HS13	Dual-Temperature Mini Bar Faucet (Low)	Single-hole dual-temperature	35 mm	430 mm ±5%	Standard spout

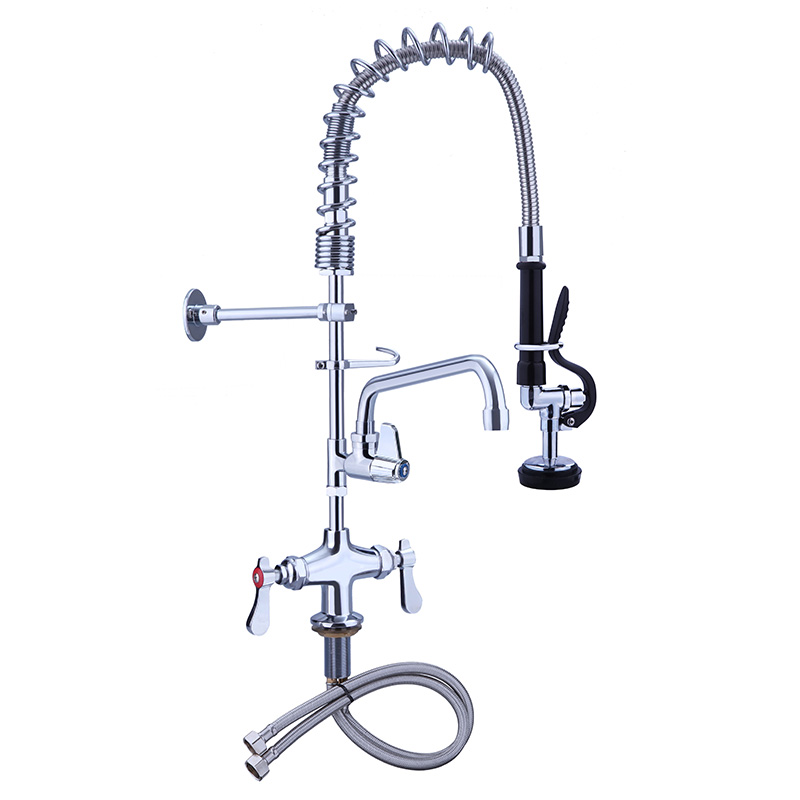

HYL-CK-FT-HS14	Dual-Temperature Mini Bar Faucet (High)	Single-hole dual-temperature	35 mm	560 mm ±5%	12-inch swing spout included

技术配置

配置项目	系列详情
Faucet Application	Compact bar counters, beverage stations, coffee preparation areas, and light-duty sink rinsing
Temperature Options	Single-temperature and dual-temperature models are available
Operating Height Options	430 mm ±5% and 560 mm ±5% operating height options
Mounting Hole Size	Single-temperature models: 25 mm single-hole; dual-temperature models: 35 mm single-hole
Spout Configuration	Standard spout; selected models include 12-inch swing spout
主要材料	Cast brass construction with polished chrome-plated surface finish
安装类型	Deck-mounted with quick-install vertical tube pipe design and 150 mm ±5% wall bracket
供水连接	1/2 inch external thread water connection inlet
