旋转出水嘴水槽下水器系列（90 毫米开孔）
Swing Spout Sink Waste Series (90 mm Cutout) - 图片 2

旋转出水嘴水槽下水器系列（90 毫米开孔）

This swing spout sink waste series includes a standard model and a model with overflow, both featuring a 90 mm sink cutout, H62 brass construction with rough chrome plating, and a 280 mm swing spout with insulated handle. The drain outlet offers 1 1/2 inch female and 2 3/8 inch male threads, and the overflow model adds a 2 inch overflow cutout with 350 mm pipe. A removable filter screen is included for easy cleaning, suitable for commercial kitchen and bar sinks.

    申请报价

    请输入您的电子邮件地址，我们将尽快给您回复。

    分类： , 品牌：

    This swing spout sink waste series is designed for commercial kitchen sinks, bar sinks, and handwashing basins where integrated drainage and a flexible water spout are required. The series provides a reliable sink drainage solution while allowing convenient pot filling and sink area rinsing with the swinging spout.

    The series includes a standard model and a model with additional overflow protection. Both share the same core design: a deck-mount waste fitting with a 90 mm sink cutout, a 280 mm swing spout with rotating switch, and the same drain outlet connections. The overflow model adds a 2 inch overflow cutout and a 350 mm overflow pipe to help prevent water spillage in busy kitchens.

    The main body is manufactured from H62 brass casting with a durable rough chrome-plated finish. The drain outlet features both 1 1/2 inch female thread and 2 3/8 inch male thread connections for versatile plumbing compatibility. Each unit is fitted with a heat-resistant insulated handle for comfortable operation even with hot water, and a removable filter screen simplifies daily cleaning by capturing debris.

    产品特点

    • Combines sink waste and swing spout in a compact deck-mount unit.
    • Available in standard and overflow protection models.
    • H62 brass casting main body with rough chrome plating for durability.
    • 90 mm sink cutout for both models.
    • Drain outlet with 1 1/2 inch female thread and 2 3/8 inch male thread.
    • 280 mm swing spout with heat-resistant insulated handle.
    • Rotating switch for easy spout positioning.
    • Overflow model includes 2 inch overflow cutout and 350 mm overflow pipe.
    • Removable filter screen for convenient debris cleaning.

    应用领域

    Suitable for commercial kitchen sinks, bar sinks, handwashing stations, scullery sinks, and food preparation area basins where integrated waste drainage with a flexible water supply spout is needed.

    型号 产品名称 Overflow Key Configuration 主要材料 产品图像

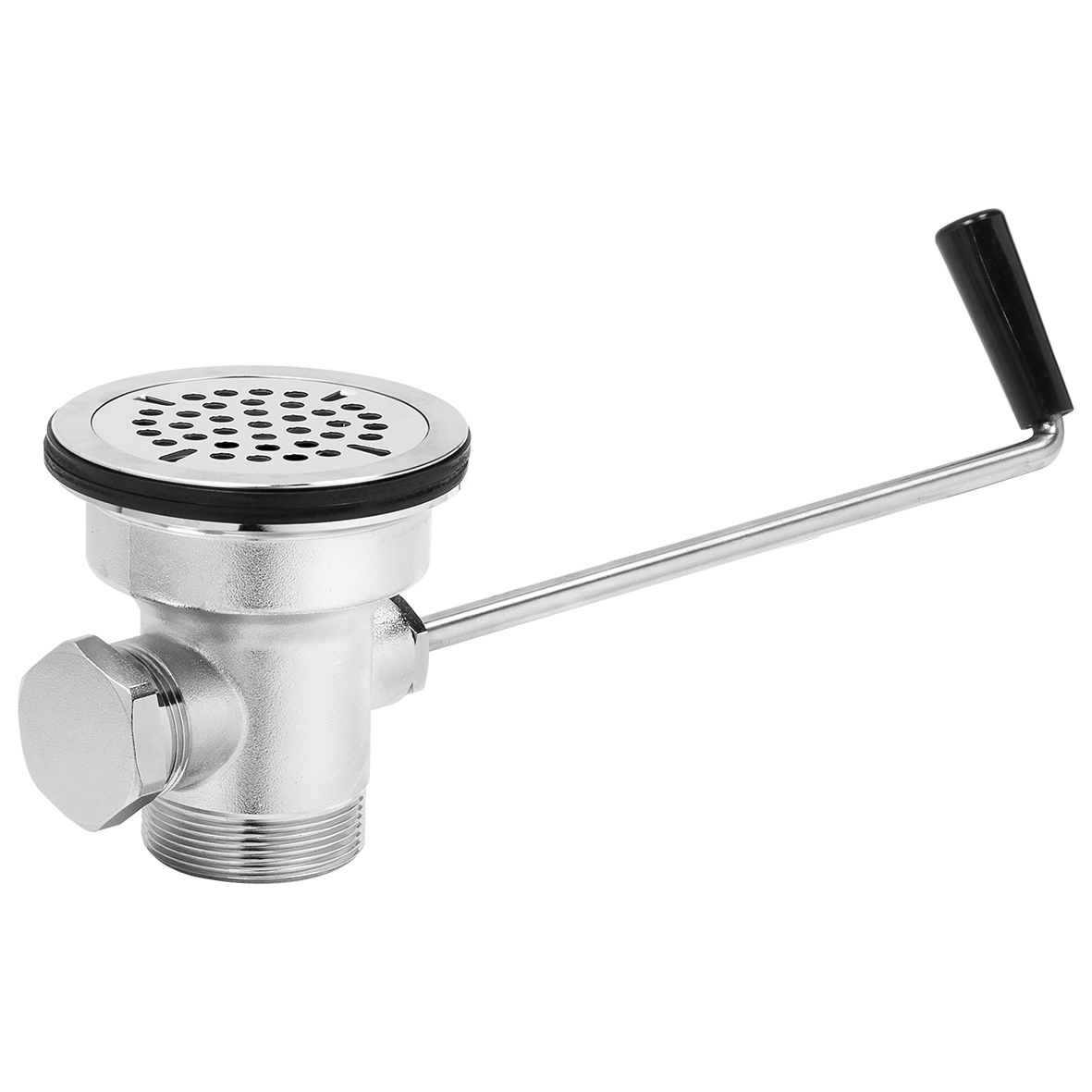

    HYL-CK-FT-QT07 Swing Spout Sink Waste (Standard) Not included 90 mm cutout, 280 mm spout, 1 1/2 in & 2 3/8 in drain H62 brass, rough chrome plating HYL-CK-FT-QT07 Swing Spout Sink Waste Standard

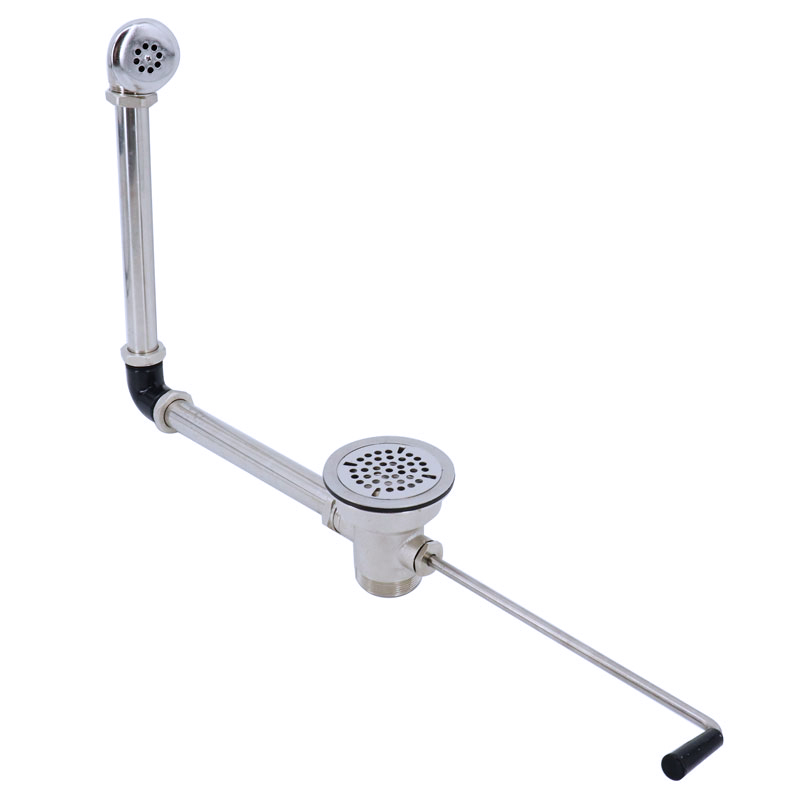

    HYL-CK-FT-QT08 Swing Spout Sink Waste with Overflow Included (2 in cutout, 350 mm pipe) 90 mm cutout, 280 mm spout, 1 1/2 in & 2 3/8 in drain H62 brass, rough chrome plating HYL-CK-FT-QT08 Swing Spout Sink Waste with Overflow

    技术配置

    配置项目 系列详情
    型号选项 Standard swing spout sink waste; swing spout sink waste with overflow pipe
    主要材料 H62 brass casting with rough chrome plating
    Sink Cutout Diameter 90 mm
    Drain Outlet Connection 1 1/2 inch female thread and 2 3/8 inch male thread
    Overflow Pipe Available on selected model: 2 inch overflow cutout, 350 mm pipe height
    Swing Spout Length 280 mm
    Handle Type Insulated heat-resistant handle
    Switch Type Rotating switch
    Filter Screen Removable for easy cleaning
