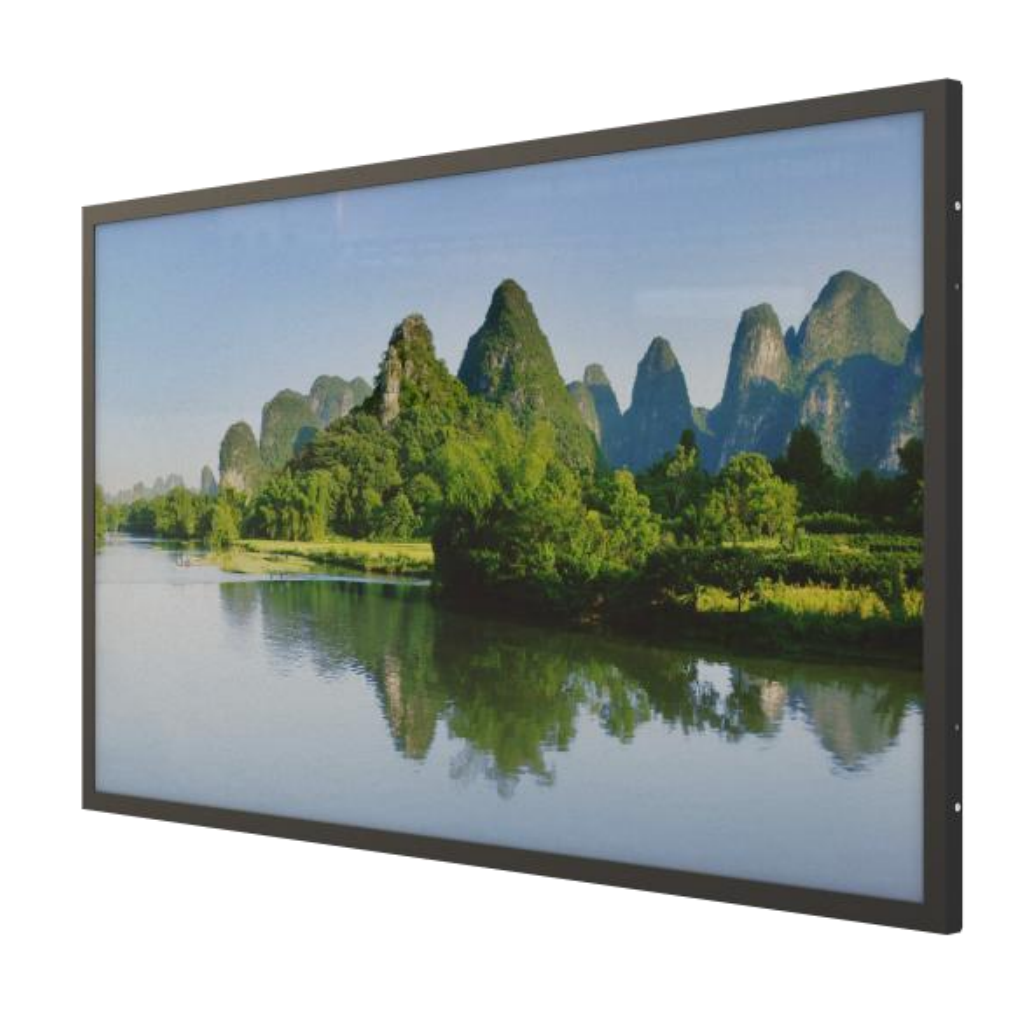

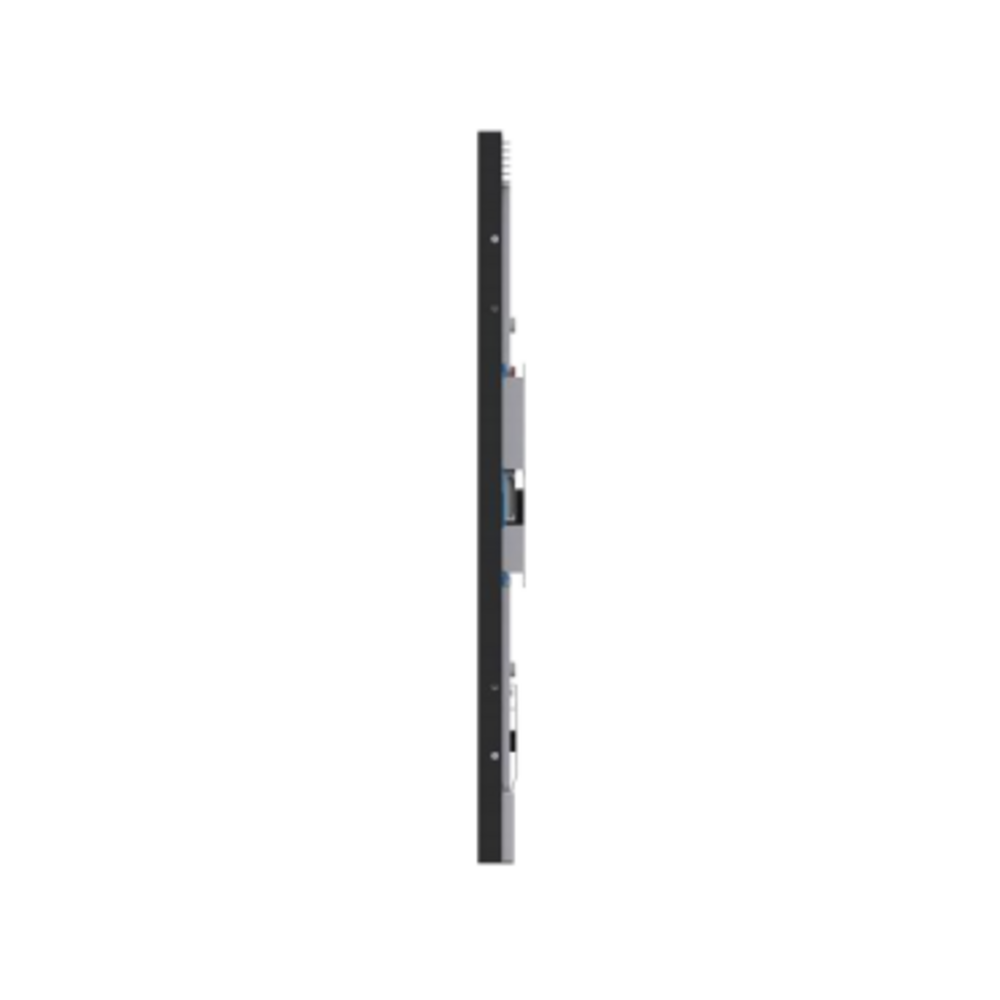

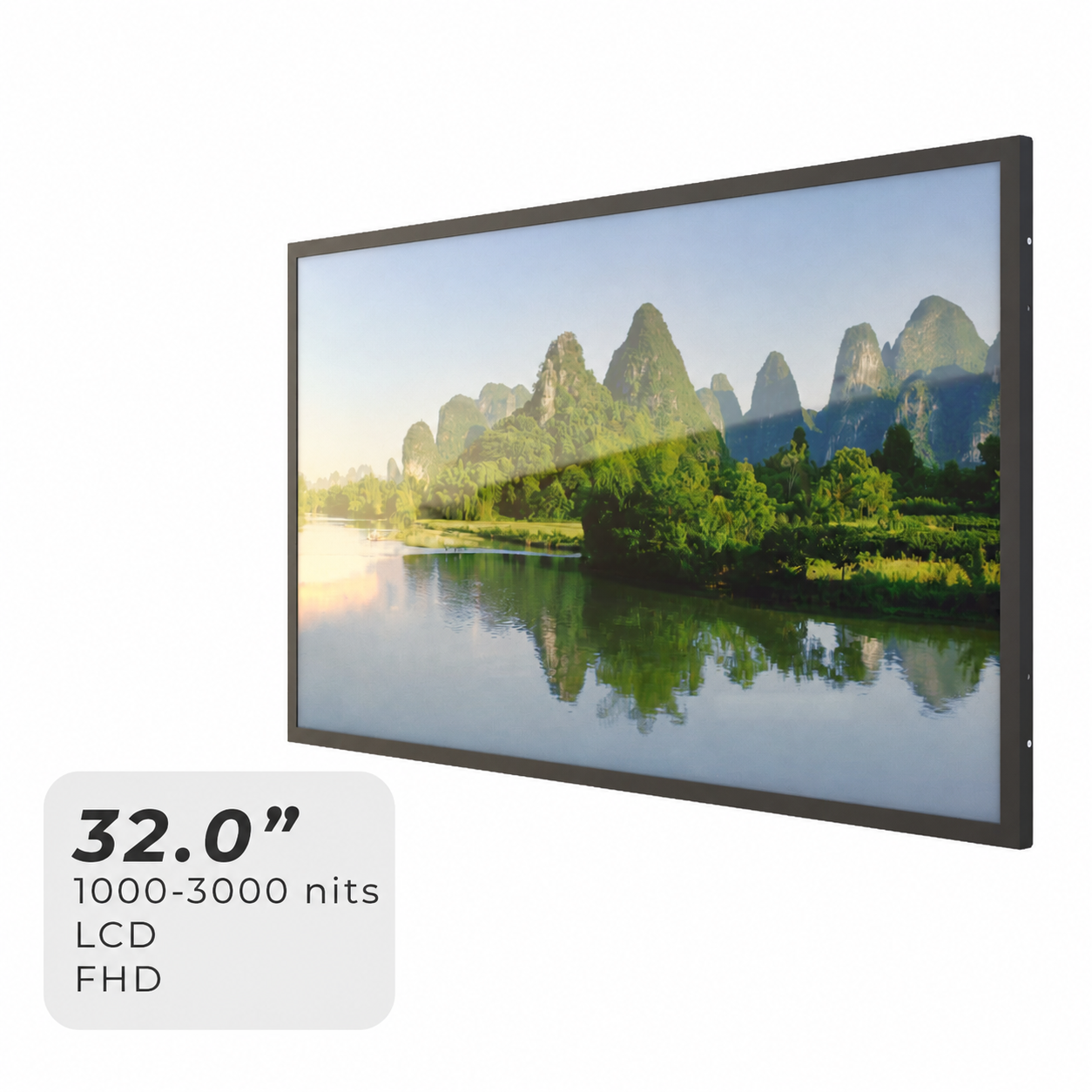

32-Inch Outdoor Integration High-Brightness LCD Module (1000–3000 Nits, Edge-Lit / Direct-Lit)

Product Overview

The 32-Inch Outdoor High-Brightness LCD Module Series is designed for professional display integration projects that require strong sunlight readability, stable continuous operation, and flexible brightness selection. The series includes 1920 × 1080 Full HD configurations with five brightness options from 1000 nits to 3000 nits. Two different backlight and mechanical structures are used across the series: Edge-Lit (ELED) for the 1000 and 1500 nits models, and Direct-Lit (DLED) for the 2000, 2500, and 3000 nits models.

Two panel versions are available for different project requirements. The V0 series uses a 105°C Hi-Tni panel platform and is designed for wide-temperature outdoor applications. The V1 series uses a 68°C Wide-T panel platform and provides a faster response time together with lower typical power consumption at the same brightness level.

All configurations use an outdoor aluminum module structure and support landscape or portrait integration. The module is intended for installation inside a properly protected enclosure and is not supplied as a complete standalone outdoor display. Touch panel, AD board, built-in speaker, operating system, and IP-rated housing are not included as standard.

Product Features

• Five Brightness Options: Available in 1000, 1500, 2000, 2500, and 3000 nits for different outdoor and strong ambient-light environments.
• Two Backlight Structures: The 1000 and 1500 nits models use an Edge-Lit (ELED) structure for a slimmer profile, while the 2000, 2500, and 3000 nits models use a Direct-Lit (DLED) structure designed for higher brightness output.
• Two Panel Platforms: Choose between the 105°C Hi-Tni V0 version or the 68°C Wide-T V1 version according to environmental and project requirements.
• Full HD Resolution: 1920 × 1080 resolution supports commercial displays, outdoor signage, industrial terminals, and integrated display systems.
• Sunlight Readable: High-brightness backlight improves visibility in outdoor and high ambient-light conditions.
• Automatic or Manual Dimming: Supports brightness adjustment from approximately 25% to 100% according to the selected control configuration.
• Wide Viewing Angle: Approximately +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
• Long Operating Lifetime: Designed with an MTBF of approximately 50,000 hours for continuous commercial and industrial operation.

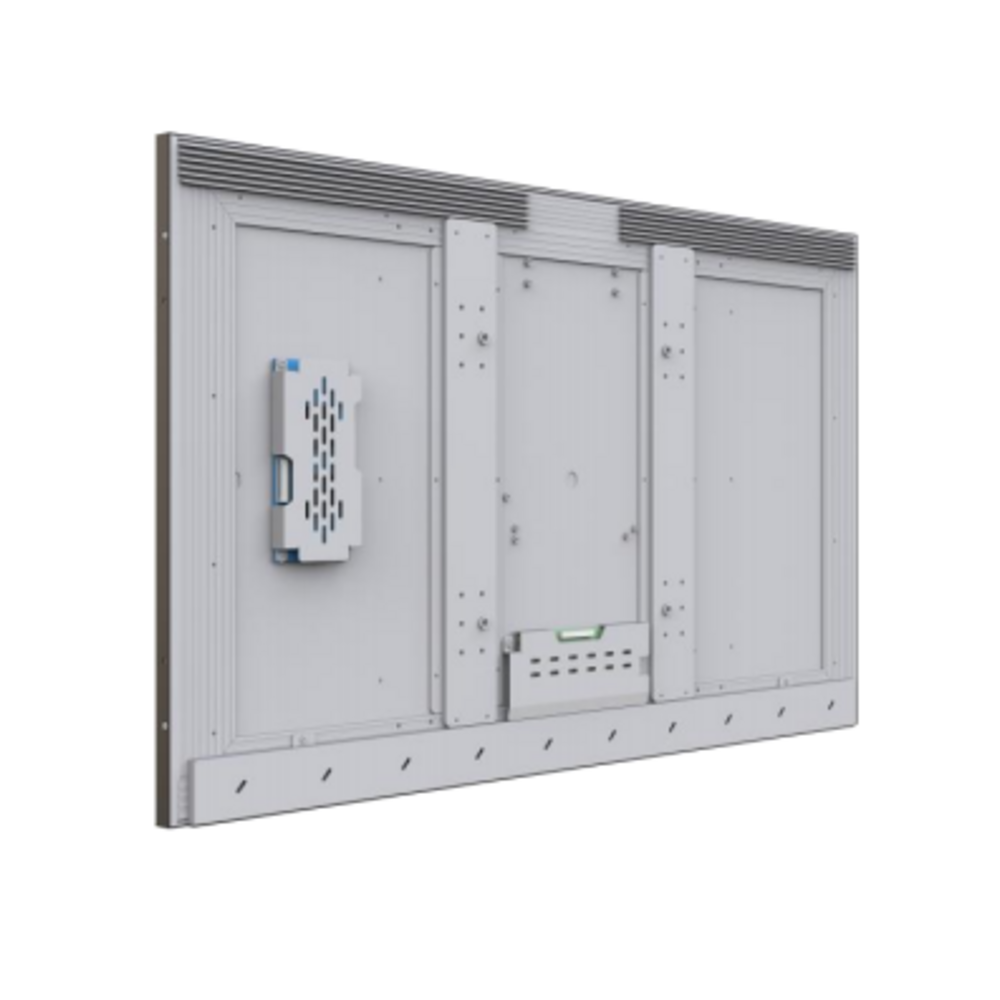

• Outdoor Aluminum Structure: White aluminum module construction supports professional integration into customized display equipment.
• Landscape and Portrait Installation: Supports horizontal or vertical installation according to final enclosure design.
• Flexible Application: Suitable for outdoor kiosks, digital signage, transportation displays, industrial equipment, exhibition systems, and customized display integration projects.

Configuration Options

Technical Configuration

Panel Version Comparison

Backlight & Mechanical Structure Comparison

Mechanical Drawing

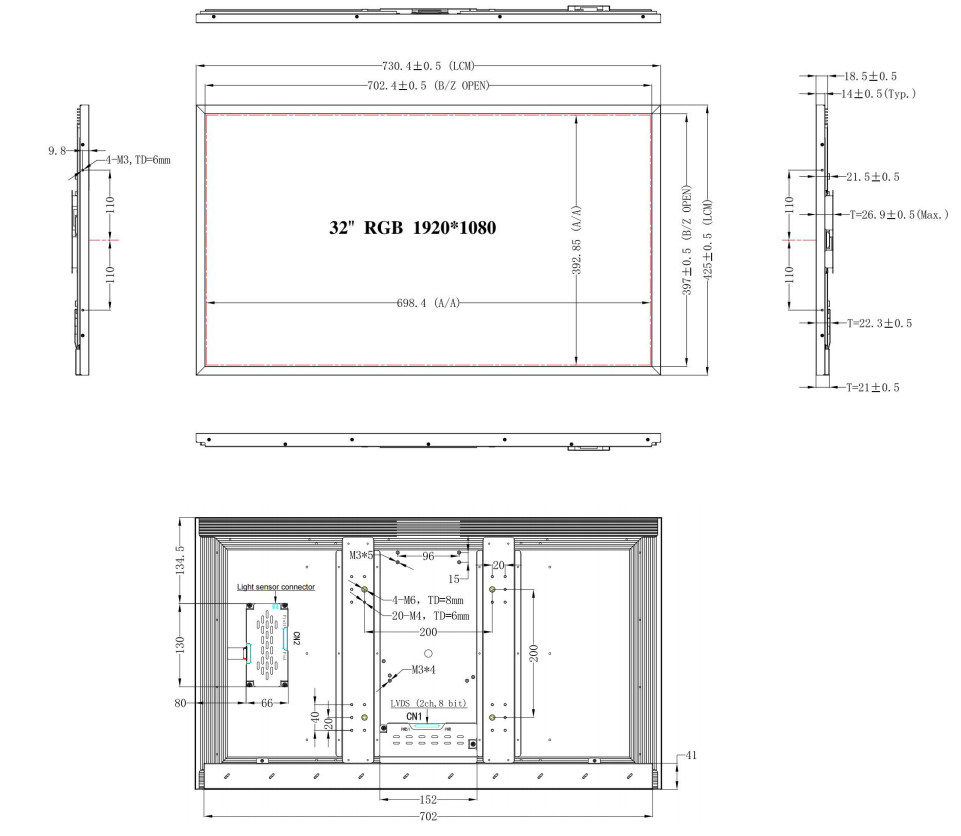

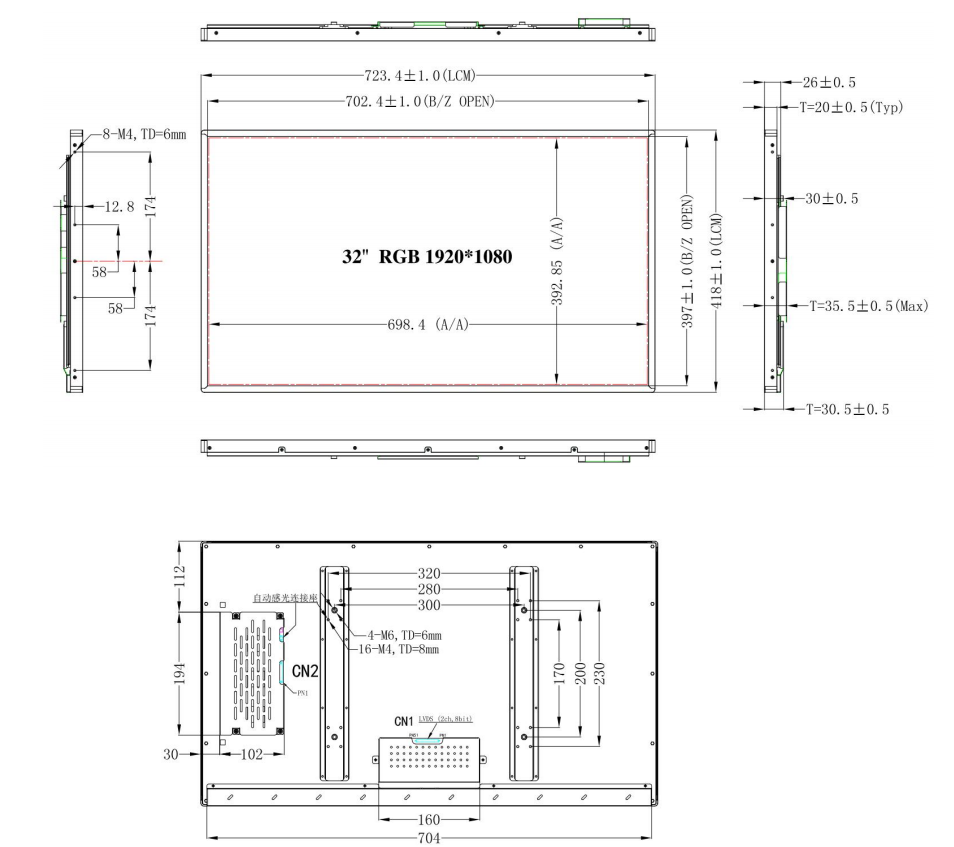

The 32-inch series uses two clearly different backlight and mechanical structures. The 1000 nits and 1500 nits models use an Edge-Lit (ELED) structure with a slimmer 26.90 mm module depth, while the 2000 nits, 2500 nits, and 3000 nits models use a Direct-Lit (DLED) structure with a 35.50 mm module depth for higher brightness output. V0 and V1 share the same nominal mechanical structure at the same brightness level, but use different panel platforms and performance specifications. Please confirm the correct Edge-Lit or Direct-Lit mechanical drawing before enclosure design, system integration, or mass production.

. Please confirm the final mechanical drawing before enclosure design, system integration, or mass production.
