65.0″ Outdoor Dynamic-Backlight High-Brightness 4K LCD Module (1000-3000 Nits)

Product Overview

The 65-Inch Outdoor Dynamic-Backlight High-Brightness 4K LCD Module Series is designed for professional outdoor display integration projects requiring high brightness, enhanced dynamic contrast, sunlight readability, and stable continuous operation. The series is available in 1000, 1500, 2000, 2500, and 3000 nits configurations.

Two 4K display platforms are available: MU01 4K Standard with the LC650EQC-SMA3 open cell and MU02 4K Wide-T with the LD650EGY-SSA2 open cell. Both platforms provide 3840 × 2160 resolution and support professional landscape or portrait integration.

All configurations use a DLED Mini-LED backlight with 1152-zone local dimming and 4608 LEDs. The module supports manual or automatic brightness adjustment and is intended for installation inside a properly designed enclosure. It is not supplied as a complete standalone IP-rated outdoor display.

Product Features

4K UHD Resolution: 3840 × 2160 resolution with 10-bit display output and approximately 1.07 billion colors.
1000-3000 Nits Brightness: Five brightness configurations support different outdoor and strong ambient-light applications.
Two 4K Platforms: Choose MU01 4K Standard or MU02 4K Wide-T according to panel and project requirements.
Mini-LED Local Dimming: DLED Mini-LED backlight with 1152 independently controlled dimming zones.
4608 LEDs: High-density LED arrangement provides strong brightness output and precise luminance control.
High Dynamic Contrast: Local dimming provides a typical dynamic contrast ratio of up to 1,000,000:1.
Manual or Automatic Dimming: Supports approximately 30%-100% brightness adjustment.
Wide Viewing Angle: Supports approximately +89°/-89° horizontal and +89°/-89° vertical viewing angles.
Long Operating Lifetime: Designed with an MTBF of approximately 75,000 hours.

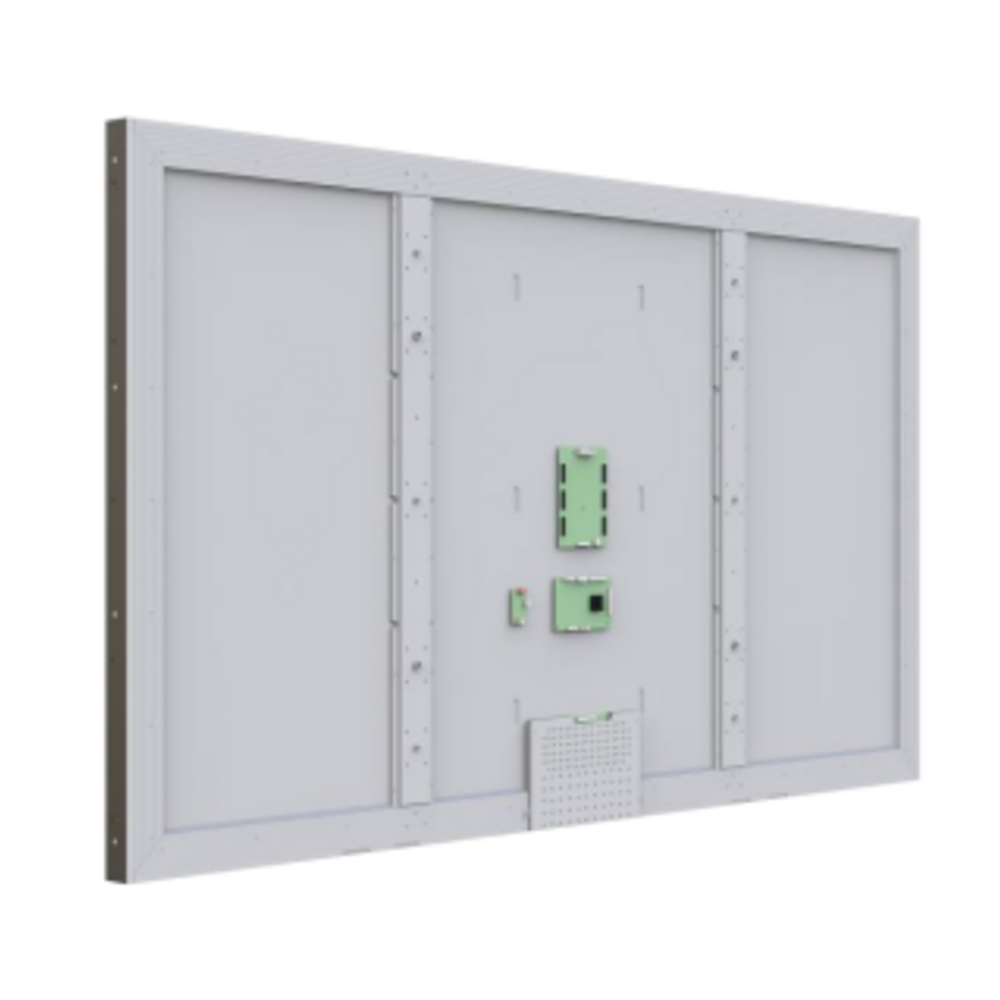

Outdoor Aluminum Structure: White aluminum module construction supports professional enclosure integration.
Landscape and Portrait Installation: Supports horizontal or vertical installation according to the final application.

Configuration Options

Model Number	Platform	Panel / Open Cell	Resolution	Brightness	Power Typ. / Max.	Operating Temperature
HYL-DM650-MU01-10	MU01 4K Standard V1	68°C Standard LC650EQC-SMA3	3840 × 2160 4K UHD	1000 nits	390W / 468W	0°C to 50°C
HYL-DM650-MU01-15				1500 nits	450W / 540W
HYL-DM650-MU01-20				2000 nits	500W / 600W
HYL-DM650-MU01-25				2500 nits	620W / 744W
HYL-DM650-MU01-30				3000 nits	760W / 912W
HYL-DM650-MU02-10	MU02 4K Wide-T V1	68°C Wide-T LD650EGY-SSA2	3840 × 2160 4K UHD	1000 nits	245W / 294W	0°C to 50°C
HYL-DM650-MU02-15				1500 nits	305W / 366W
HYL-DM650-MU02-20				2000 nits	355W / 426W
HYL-DM650-MU02-25				2500 nits	435W / 522W
HYL-DM650-MU02-30				3000 nits	535W / 642W

Technical Configuration

Configuration Item	Series Details
Screen Size	65 inch
Display Technology	Mini-LED dynamic backlight LCD module
Resolution	3840 × 2160 4K UHD
Brightness Options	1000 / 1500 / 2000 / 2500 / 3000 nits
Platforms	MU01 4K Standard / LC650EQC-SMA3; MU02 4K Wide-T / LD650EGY-SSA2
Active Area	1428.48 × 803.52 mm
Pixel Pitch	0.372 × 0.372 mm
Display Colors	10-bit / approximately 1.07 billion colors
Backlight Type	DLED Mini-LED with local dimming
Local Dimming Zones	1152 zones, arranged as 32 × 36
LED Quantity	4608 LEDs
Dynamic Contrast Ratio	1,000,000:1 typical
Refresh Rate	60Hz
Dimming Mode	Manual or automatic brightness adjustment, approximately 30%-100%
Viewing Angle	+89°/-89° horizontal and +89°/-89° vertical typical
MTBF	Approximately 75,000 hours
Overall Dimensions	1464.50 × 839.50 × 46.00 mm typical
Weight	23 kg ±0.2
Operating / Storage Temperature	0°C to 50°C / -20°C to 60°C
Structure	White aluminum outdoor module structure suitable for landscape or portrait integration
Touch Panel	Not included as standard
AD Board	Not included as standard
Built-In Speaker	Not included as standard
IP Rating	None / None. The LCD module itself is not supplied with an IP rating.
Humidity	≤90%
Warranty	24 months
Application Areas	Outdoor digital signage, transportation displays, commercial displays, industrial terminals, information systems, exhibitions, and customized display projects

Platform Comparison

Comparison Item	MU01 4K Standard	MU02 4K Wide-T
Open Cell	LC650EQC-SMA3	LD650EGY-SSA2
Version	V1	V1
Panel Type	4K Standard	4K Wide-T
Resolution	3840 × 2160	3840 × 2160
Active Area	1428.48 × 803.52 mm	1428.48 × 803.52 mm
Pixel Pitch	0.372 × 0.372 mm	0.372 × 0.372 mm
Display Colors	10-bit / 1.07 billion	10-bit / 1.07 billion
Response Time	8 ms typical	9 ms typical
Dynamic Contrast	1,000,000:1	1,000,000:1
Estimated Color Gamut	79%-82% NTSC	79%-82% NTSC
Haze	3%	28%
Operating Temperature	0°C to 50°C	0°C to 50°C
Storage Temperature	-20°C to 60°C	-20°C to 60°C

Backlight & Mechanical Structure Comparison

Brightness	Backlight Type	MU01 Power Typ. / Max.	MU02 Power Typ. / Max.	Overall Dimensions	Weight
1000 nits	DLED Mini-LED 1152-zone local dimming 4608 LEDs	390W / 468W	245W / 294W	1464.50 × 839.50 × 46.00 mm	23 kg ±0.2
1500 nits		450W / 540W	305W / 366W
2000 nits		500W / 600W	355W / 426W
2500 nits		620W / 744W	435W / 522W
3000 nits		760W / 912W	535W / 642W

Mechanical Drawing

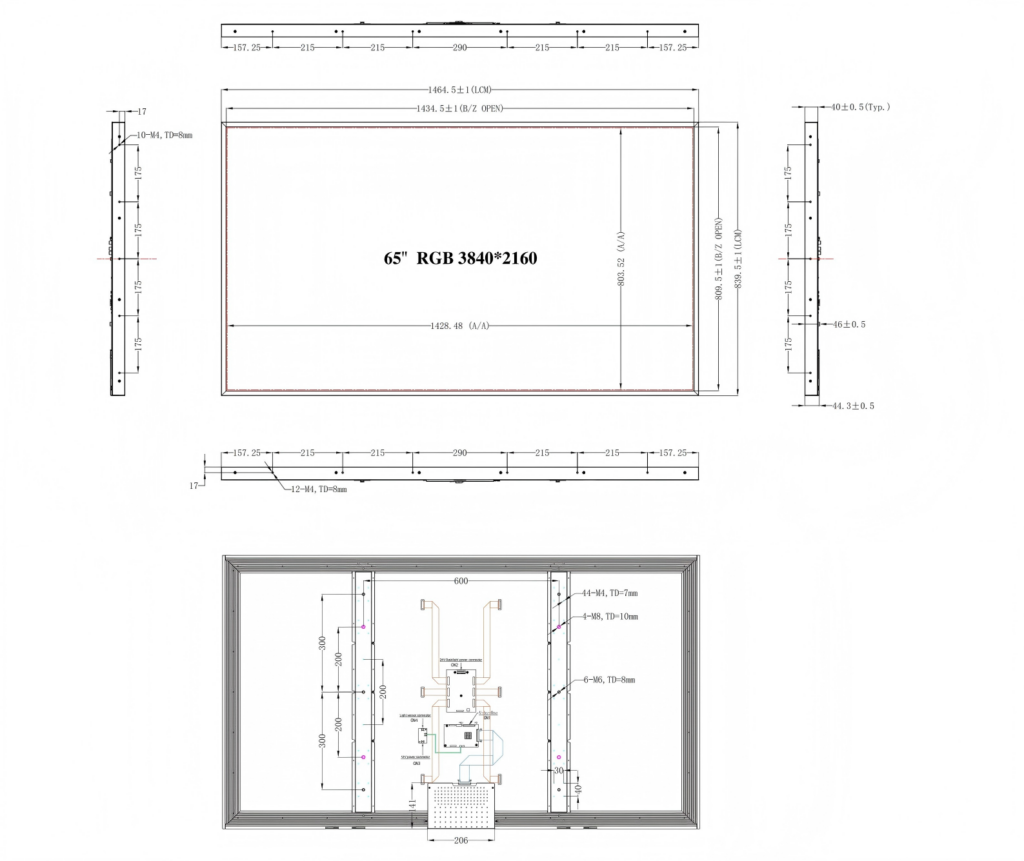

The MU01 4K Standard and MU02 4K Wide-T platforms use the same 65-inch V1 mechanical structure and drawing. Please confirm the final approved mechanical drawing before enclosure design, system integration, or mass production.

Important Notes

Power consumption values are listed as typical power / maximum power and may vary according to brightness settings, operating conditions, and final system configuration.
The module does not include an AD board, touch panel, cover glass, built-in speaker, or complete IP-rated outdoor enclosure as standard.
The final enclosure must provide suitable protection, ventilation, heat dissipation, waterproofing, and structural support for the intended installation environment.
Product specifications and component availability may be adjusted according to project requirements. Please confirm the final approved specification before ordering or mass production.
