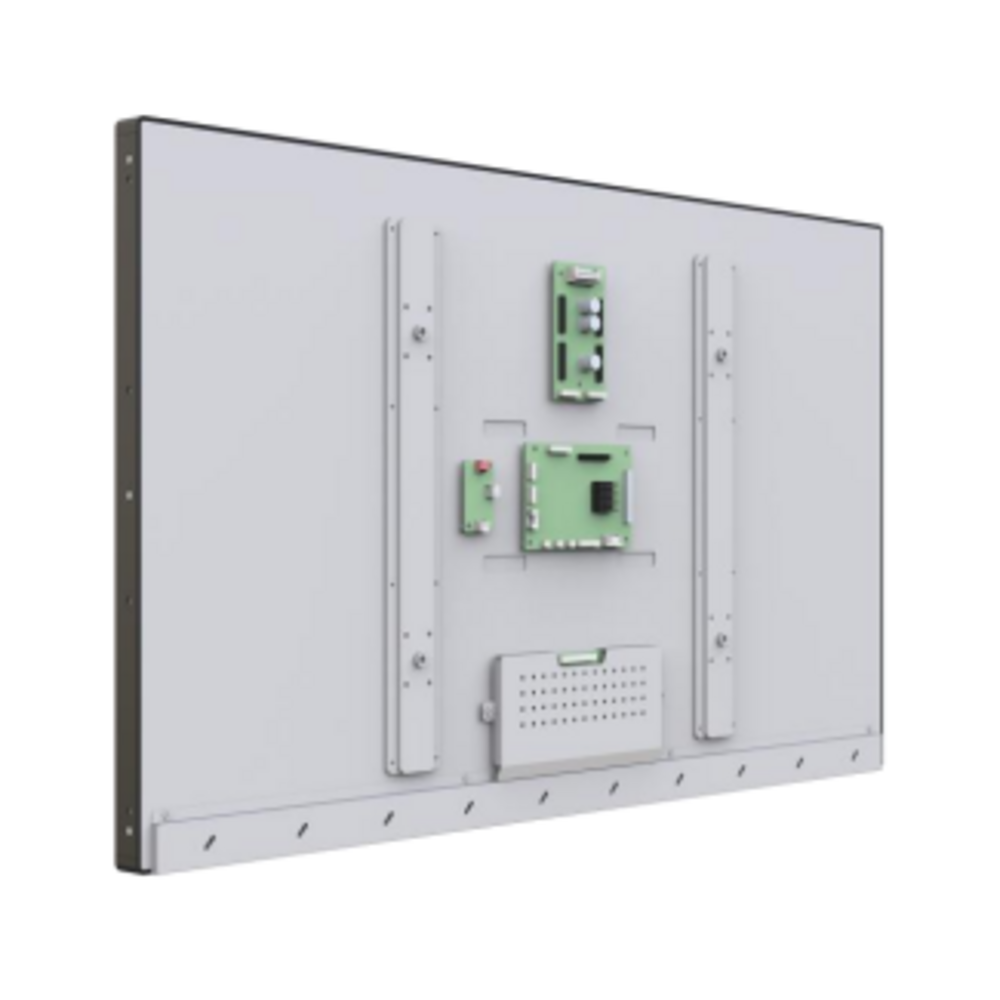

Product Overview
The 32-Inch Outdoor Dynamic-Backlight MiniLED LCD Module Series is designed for professional display integration projects requiring high brightness, local dimming, wide-temperature operation, and flexible FHD or 4K resolution options. The series includes FHD configurations from 1000 to 3000 nits and 4K configurations from 1000 to 1500 nits.
Four platform options are available: an FHD Wide-T V1 platform, an FHD Hi-Tni V0 platform, a 4K Standard V3 platform, and a 4K Standard V0 platform. The platforms use DLED local dimming technology and are available for different brightness, temperature, color, and image-performance requirements.
All configurations support wide viewing angles, manual or automatic brightness adjustment, and landscape or portrait installation. The module is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone IP-rated outdoor display.
Product Features
- Dynamic Local Dimming:
DLED backlight with local dimming improves contrast and visibility in outdoor and high-ambient-light environments. - Flexible Brightness Options:
FHD platforms are available in 1000, 1500, 2000, 2500, and 3000 nits configurations. - FHD and 4K Platforms:
Supports 1920 × 1080 FHD and 3840 × 2160 4K UHD display platforms. - Wide-Temperature Options:
Platform options include standard operation from 0°C to 50°C and Hi-Tni operation from -20°C to 70°C. - Manual or Automatic Dimming:
Brightness can be adjusted from approximately 25% to 100% according to the selected control configuration. - Wide Viewing Angle:
Supports +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions. - High Contrast Performance:
Selected dynamic-backlight platforms provide high typical contrast performance for commercial and industrial applications. - Long Operating Lifetime:
Designed with an MTBF of approximately 75,000 hours. - Outdoor Aluminum Structure:
Uses a white aluminum module structure suitable for customized outdoor display systems. - Landscape and Portrait Installation:
Supports horizontal or vertical installation according to the final enclosure and application design.
Configuration Options
| Model Number | Platform | Resolution | Brightness | Power Consumption |
Operating Temperature |
Overall Dimensions |
Picture |
|---|---|---|---|---|---|---|---|
| HYL-DM320-MF01-10 | FHD Wide-T LD320EUY-SQA3 68°C Surface Grade V1 |
1920 × 1080 | 1000 nits | 53W typ. 64W max. |
0°C to 50°C | 723.40 × 418.00 × 36.90 mm |
 |
| HYL-DM320-MF01-15 | 1500 nits | 78W typ. 94W max. |
|||||
| HYL-DM320-MF01-20 | 2000 nits | 108W typ. 130W max. |
|||||
| HYL-DM320-MF01-25 | 2500 nits | 131W typ. 157W max. |
|||||
| HYL-DM320-MF01-30 | 3000 nits | 156W typ. 187W max. |
|||||
| HYL-DM320-MF02-10 | FHD Hi-Tni DV320FHB-R00 105°C Hi-Tni V0 |
1920 × 1080 | 1000 nits | 59W typ. 71W max. |
-20°C to 70°C | ||
| HYL-DM320-MF02-15 | 1500 nits | 84W typ. 101W max. |
|||||
| HYL-DM320-MF02-20 | 2000 nits | 124W typ. 149W max. |
|||||
| HYL-DM320-MF02-25 | 2500 nits | 147W typ. 176W max. |
|||||
| HYL-DM320-MF02-30 | 3000 nits | 172W typ. 206W max. |
|||||
| HYL-DM320-MU01-10 | 4K Standard M315DJJ-Q01 65°C Surface Grade V3 |
3840 × 2160 | 1000 nits | 105W typ. 126W max. |
0°C to 50°C | ||
| HYL-DM320-MU01-15 | 1500 nits | 130W typ. 156W max. |
|||||
| HYL-DM320-MU02-10 | 4K Standard MV315QUB-N70 65°C Surface Grade V0 |
3840 × 2160 | 1000 nits | 71W typ. 85W max. |
0°C to 50°C | ||
| HYL-DM320-MU02-15 | 1500 nits | 88W typ. 106W max. |
Technical Configuration
| Configuration Item | Series Details |
|---|---|
| Screen Size | 32 inch |
| Display Type | Outdoor dynamic-backlight MiniLED LCD module |
| Resolution Options | 1920 × 1080 FHD or 3840 × 2160 4K UHD |
| Brightness Options | 1000-3000 nits for FHD platforms; 1000 and 1500 nits for 4K platforms |
| Backlight Type | DLED with local dimming |
| Refresh Rate | 60Hz |
| Dimming Mode | Manual or automatic brightness adjustment, approximately 25%-100% |
| Viewing Angle | +89°/-89° horizontal and +89°/-89° vertical typical |
| MTBF | Approximately 75,000 hours |
| Overall Dimensions | 723.40 × 418.00 × 36.90 mm |
| Weight | 7.5 kg ±0.2 |
| Structure | White aluminum outdoor module structure suitable for landscape or portrait integration |
| Touch Panel | Not included as standard |
| AD Board | Not included as standard |
| Built-In Speaker | Not included as standard |
| IP Rating | None / None. The LCD module itself is not supplied with an IP rating. |
| Humidity | ≤90% |
| Warranty | 24 months |
Platform Comparison
| Comparison Item | FHD Wide-T MF01 / V1 |
FHD Hi-Tni MF02 / V0 |
4K Standard MU01 / V3 |
4K Standard MU02 / V0 |
|---|---|---|---|---|
| Open Cell | LD320EUY-SQA3 | DV320FHB-R00 | M315DJJ-Q01 | MV315QUB-N70 |
| Panel Surface Grade | 68°C Surface | 105°C Hi-Tni | 65°C Surface | 65°C Surface |
| Resolution | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 | 3840 × 2160 |
| Brightness Options | 1000-3000 nits | 1000-3000 nits | 1000-1500 nits | 1000-1500 nits |
| Active Area | 698.40 × 392.85 mm | 698.40 × 392.85 mm | 698.40 × 392.85 mm | 697.31 × 392.24 mm |
| Pixel Pitch | 0.36375 × 0.36375 mm | 0.36375 × 0.36375 mm | 0.181 × 0.181 mm | 0.18159 × 0.18159 mm |
| Display Colors | 8-bit / 16.7 million | 8-bit / 16.7 million | 8-bit(D) + FRC / 1.07 billion | 10-bit / 1.07 billion |
| Haze | 3% | 1% | 25% | 25% |
| Response Time | 9ms typical | 15ms typical | 9.5ms typical | 14ms typical |
| Contrast Ratio | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 |
| Color Gamut | 77%-80% NTSC | 84%-87% NTSC | 90%-93% NTSC | 100% NTSC |
| Operating Temperature | 0°C to 50°C | -20°C to 70°C | 0°C to 50°C | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C | -20°C to 70°C | -20°C to 60°C | -20°C to 60°C |
| Dimming Mode | Manual / Automatic 25%-100% |
Manual / Automatic 25%-100% |
Manual / Automatic 25%-100% |
Manual / Automatic 25%-100% |
| MTBF | 75,000 hours | 75,000 hours | 75,000 hours | 75,000 hours |

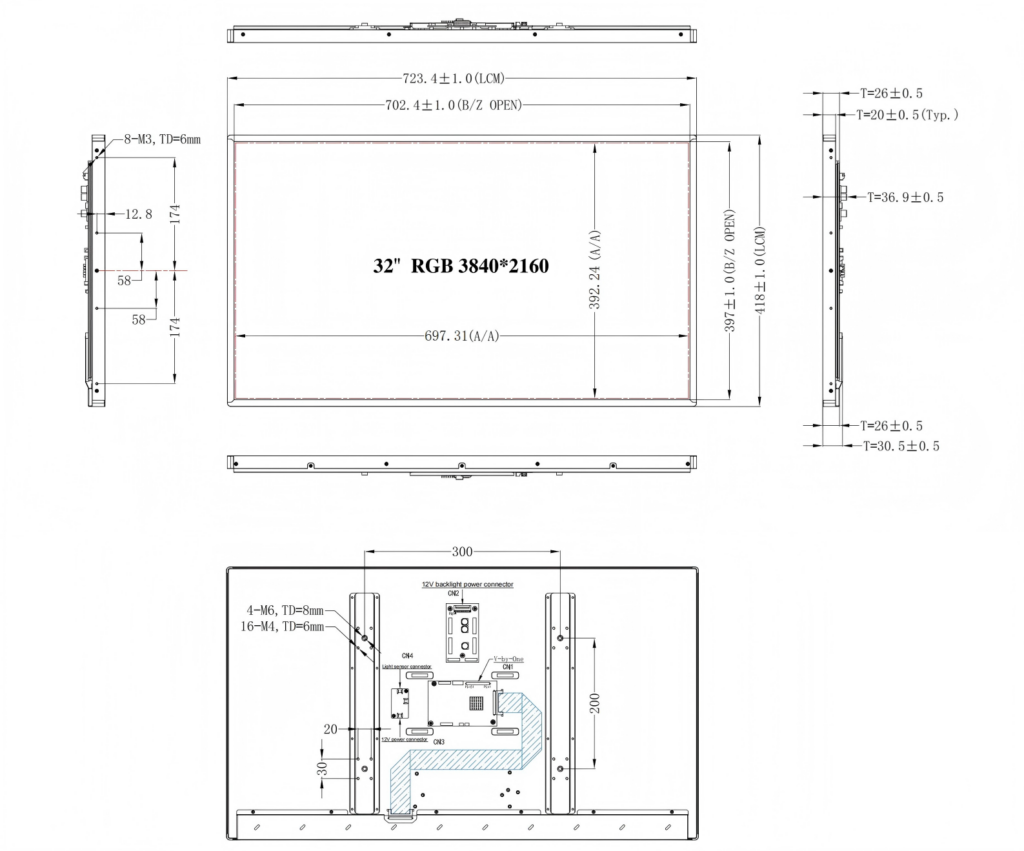

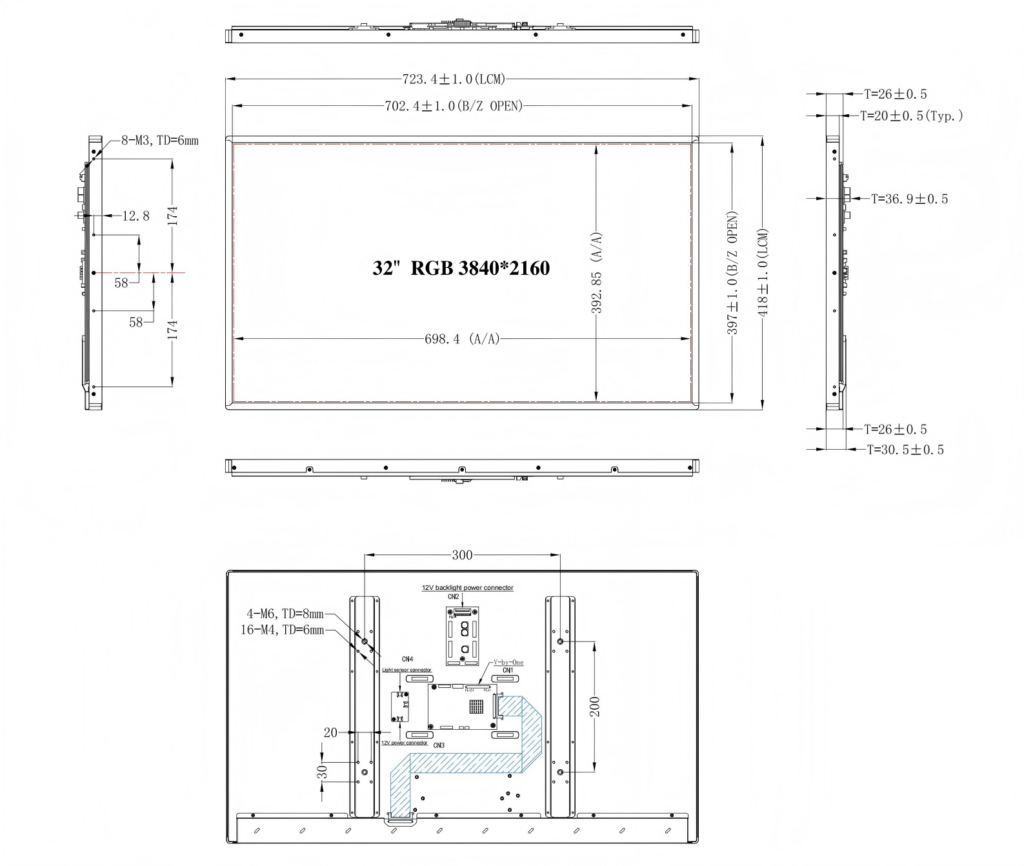

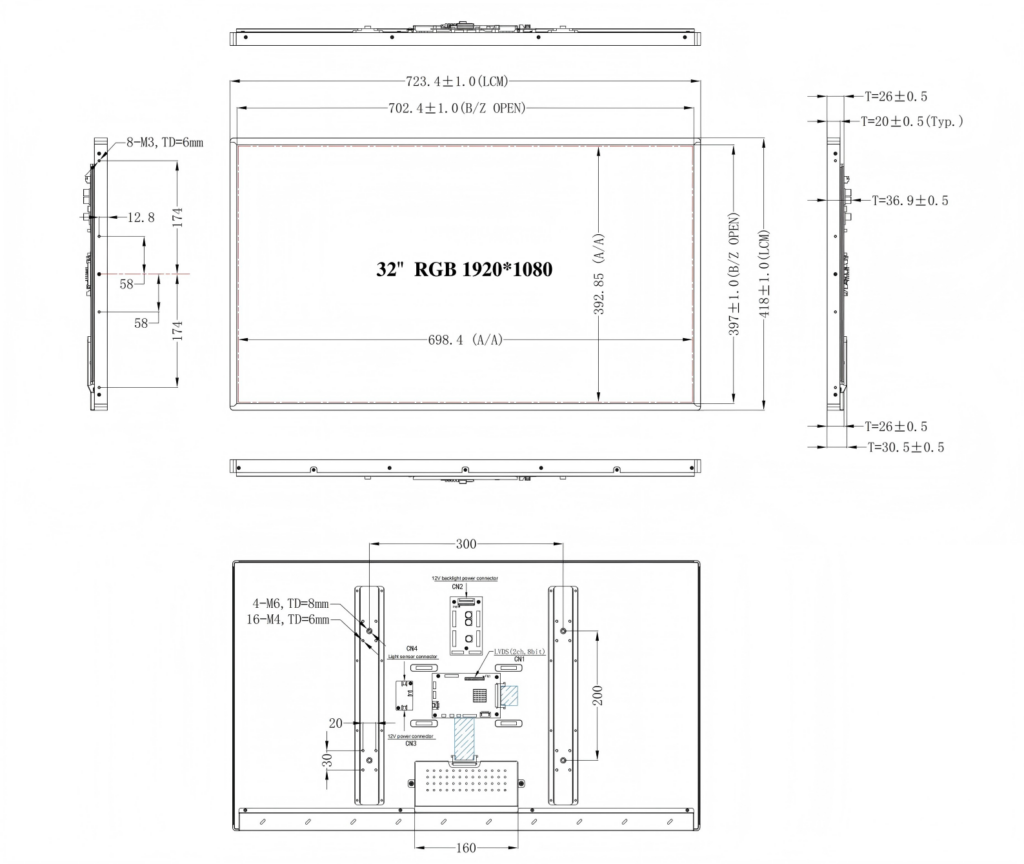

Mechanical Drawing
