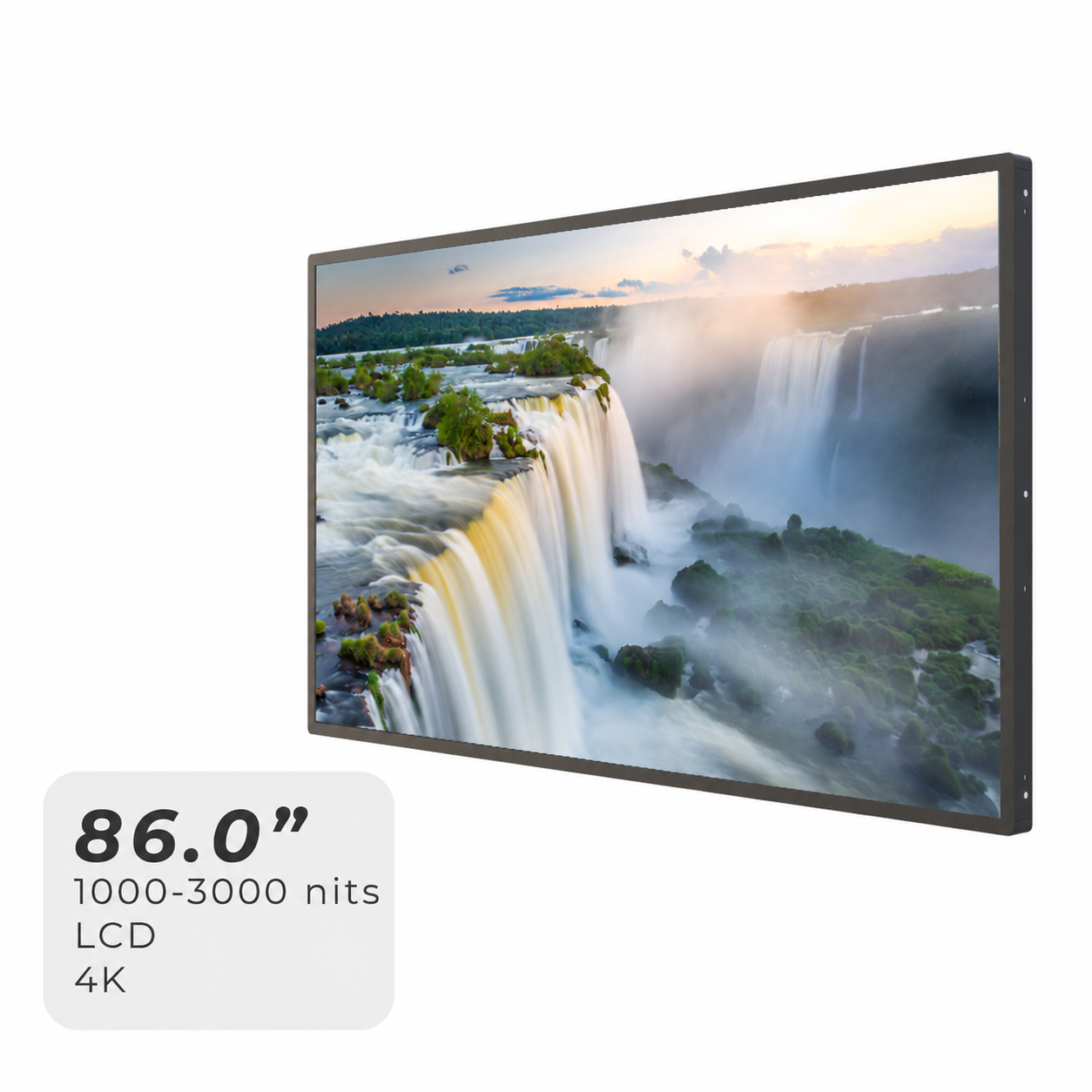

Product Overview
The 86-Inch Outdoor High-Brightness LCD Module Series is designed for professional display integration projects requiring strong sunlight readability, 4K resolution, flexible brightness selection, and reliable outdoor-oriented performance. The series is available in 1000, 1500, 2000, 2500, and 3000 nits configurations.
Two 4K display platforms are available: a 4K Standard configuration and a 4K Wide-T configuration. Both platforms use V1 product versions and can be selected according to panel characteristics, brightness, power consumption, and system integration requirements.
All configurations use a DLED high-brightness backlight, support wide viewing angles, manual or automatic brightness adjustment, and landscape or portrait installation. The module is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone IP-rated outdoor display.
Product Features
- High-Brightness Options:
Available in 1000, 1500, 2000, 2500, and 3000 nits configurations for outdoor and high-ambient-light applications. - 4K UHD Resolution:
Supports 3840 × 2160 4K UHD resolution for large-format commercial and professional display projects. - Two 4K Platform Options:
Available with 4K Standard and 4K Wide-T panel platforms. - Sunlight Readable:
High-brightness DLED backlight improves display visibility in strong ambient-light and daylight environments. - Manual or Automatic Dimming:
Brightness can be adjusted from approximately 30% to 100% according to the selected control configuration. - Wide Viewing Angle:
Supports +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions. - 10-Bit Display Color:
Supports 10-bit display color and approximately 1.07 billion colors. - Long Operating Lifetime:
Designed with an MTBF of approximately 50,000 hours for commercial and industrial applications. - Outdoor Aluminum Structure:
The module uses a white aluminum structure suitable for integration into customized outdoor display systems. - Landscape and Portrait Installation:
Supports horizontal or vertical installation according to the final enclosure and application design. - Flexible System Integration:
Suitable for commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects.
Configuration Options
| Model Number | Platform | Resolution | Brightness | Power Consumption |
Operating Temperature |
Overall Dimensions |
Picture |
|---|---|---|---|---|---|---|---|
| HYL-DM860-LU01-10 | 4K Standard LC860EQY-FJA6 68°C Surface Grade |
3840 × 2160 | 1000 nits | 540W | 0°C to 50°C | 1931.00 × 1101.00 × 53.50 mm |  |
| HYL-DM860-LU01-15 | 1500 nits | 720W | |||||
| HYL-DM860-LU01-20 | 2000 nits | 890W | |||||
| HYL-DM860-LU01-25 | 2500 nits | 1130W | |||||
| HYL-DM860-LU01-30 | 3000 nits | 1330W | |||||
| HYL-DM860-LU02-10 | 4K Wide-T LD860EQY-SRA1 68°C Surface Grade |
3840 × 2160 | 1000 nits | 540W | 0°C to 50°C | ||
| HYL-DM860-LU02-15 | 1500 nits | 720W | |||||
| HYL-DM860-LU02-20 | 2000 nits | 890W | |||||
| HYL-DM860-LU02-25 | 2500 nits | 1130W | |||||
| HYL-DM860-LU02-30 | 3000 nits | 1330W |
Technical Configuration
| Configuration Item | Series Details |
|---|---|
| Screen Size | 86 inch |
| Resolution | 3840 × 2160 4K UHD |
| Brightness Options | 1000, 1500, 2000, 2500, and 3000 nits |
| Platform Options | 4K Standard and 4K Wide-T, both V1 platforms |
| Open Cell | LC860EQY-FJA6 or LD860EQY-SRA1 |
| Panel Surface Grade | 68°C Surface Grade |
| Active Area | 1895.04 × 1065.96 mm |
| Pixel Pitch | 0.4935 × 0.4935 mm |
| Display Colors | 10-bit(D) / approximately 1.07 billion colors |
| Haze | 28% |
| Backlight Type | DLED high-brightness backlight |
| Refresh Rate | 60Hz |
| Response Time | 8ms typical |
| Dimming Mode | Manual or automatic brightness adjustment, approximately 30%–100% |
| Viewing Angle | +89°/-89° horizontal and +89°/-89° vertical typical |
| Contrast Ratio | 1200:1 typical |
| Color Gamut | Approximately 68% NTSC |
| MTBF | Approximately 50,000 hours |
| Power Consumption | Varies according to selected brightness configuration; see Configuration Options |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm |
| Weight | 42.5 kg ±0.2 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |

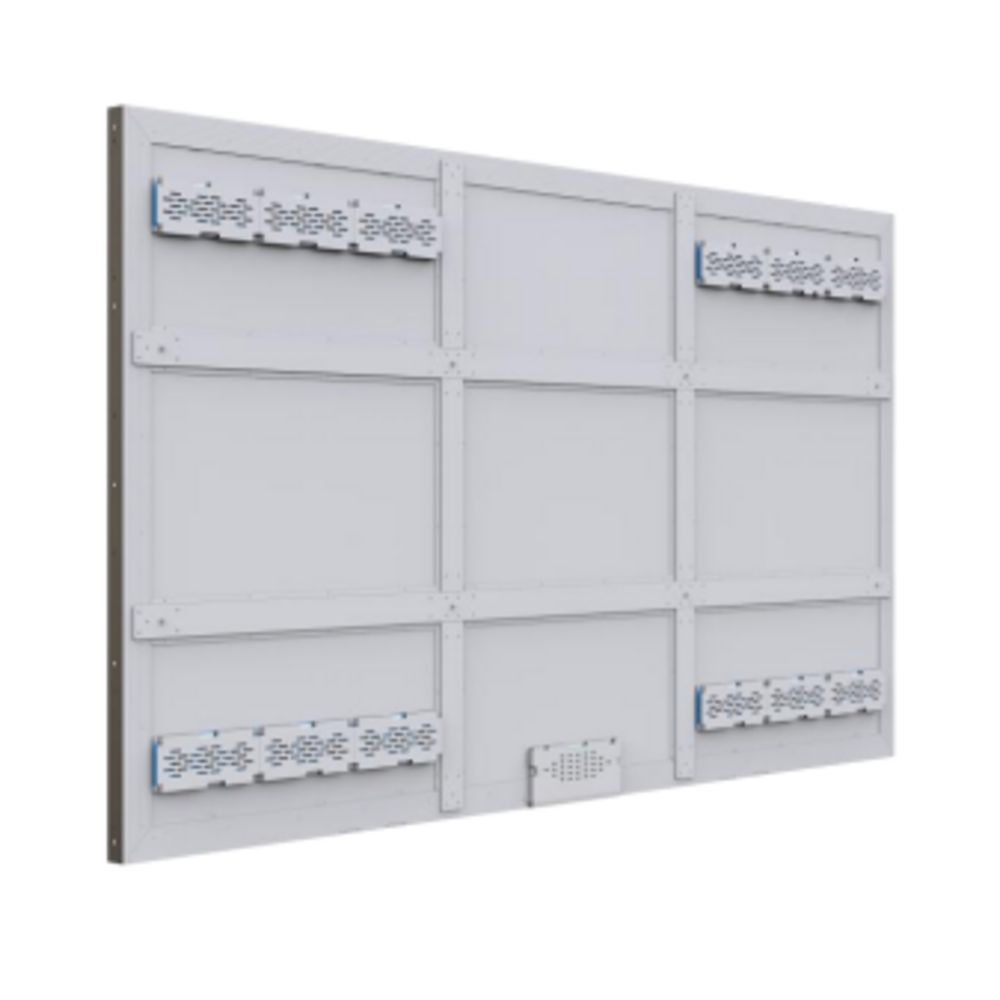

| Structure | White aluminum outdoor module structure suitable for landscape or portrait integration |
| Touch Panel | Not included as standard |
| AD Board | Not included as standard |
| Built-In Speaker | Not included as standard |
| IP Rating | None / None. The LCD module itself is not supplied with an IP rating. |
| Humidity | ≤90% |
| Warranty | 24 months |
| Application Areas | Commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects |
Platform Comparison
| Comparison Item | 4K Standard LU01 |
4K Wide-T LU02 |
|---|---|---|
| Open Cell | LC860EQY-FJA6 | LD860EQY-SRA1 |
| Panel Surface Grade | 68°C Surface Grade | 68°C Surface Grade |
| Product Version | V1 | V1 |
| Resolution | 3840 × 2160 4K UHD | 3840 × 2160 4K UHD |
| Pixel Pitch | 0.4935 × 0.4935 mm | 0.4935 × 0.4935 mm |
| Display Colors | 10-bit / 1.07 billion colors | 10-bit / 1.07 billion colors |
| Response Time | 8ms typical | 8ms typical |
| Contrast Ratio | 1200:1 typical | 1200:1 typical |
| Color Gamut | Approximately 68% NTSC | Approximately 68% NTSC |
| Haze | 28% | 28% |
| Operating Temperature | 0°C to 50°C | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C | -20°C to 60°C |
| Dimming Mode | Manual / Automatic, 30%–100% | Manual / Automatic, 30%–100% |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | 1931.00 × 1101.00 × 53.50 mm |

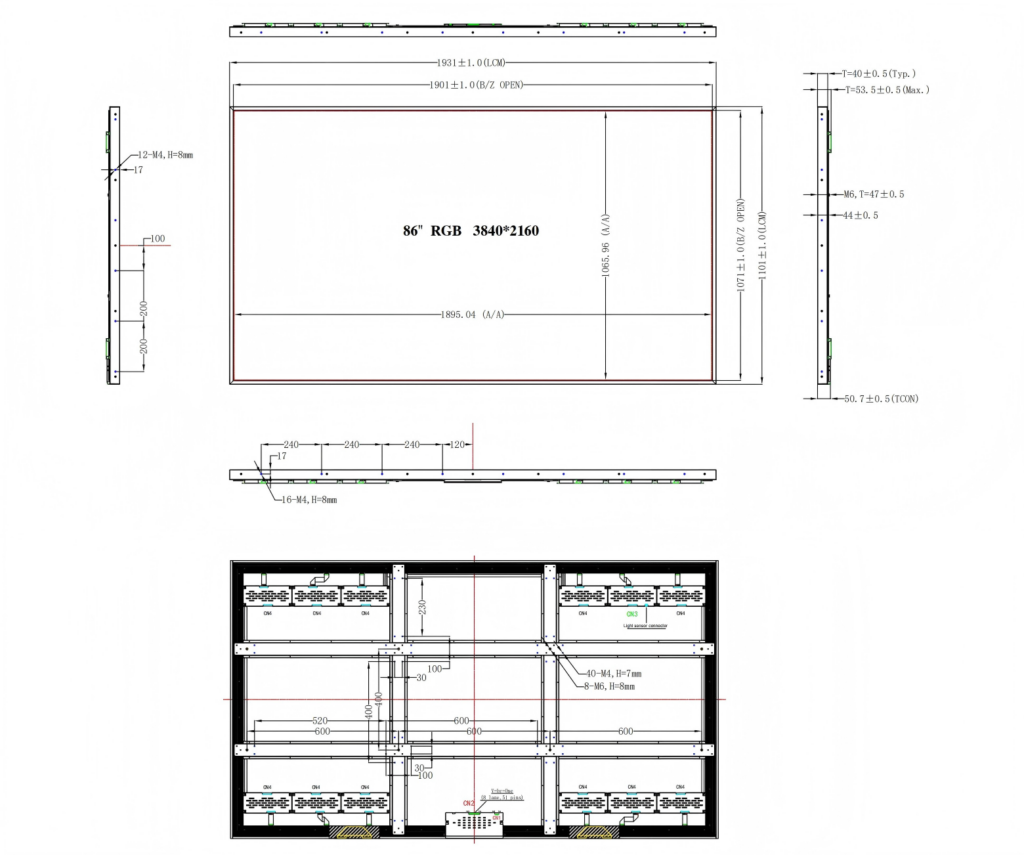

Mechanical Drawing
