98.0″ Outdoor Integration High-Brightness LCD Module (1000–2000 Nits, 4K Wide-T)

Product Overview

The 98-Inch Outdoor High-Brightness LCD Module Series is designed for large-format professional display integration projects requiring strong sunlight readability, 4K resolution, and high-brightness performance. The series is available in 1000, 1500, and 2000 nits configurations.

The series uses a 4K Wide-T V1 platform with the LD980DQY-SNA1 open cell and 68°C surface grade. It is suitable for large commercial displays, outdoor digital signage, industrial applications, exhibitions, and customized display systems.

The module uses a DLED high-brightness backlight, supports wide viewing angles, manual or automatic brightness adjustment, and landscape or portrait installation. It is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone IP-rated outdoor display.

Product Features

High-Brightness Options:
Available in 1000, 1500, and 2000 nits configurations for outdoor and high-ambient-light applications.
4K UHD Resolution:
Supports 3840 × 2160 4K UHD resolution for large-format commercial and professional display projects.
4K Wide-T Platform:
Uses the LD980DQY-SNA1 4K Wide-T V1 panel platform with 68°C surface grade.
Sunlight Readable:
High-brightness DLED backlight improves display visibility in strong ambient-light and daylight environments.
Manual or Automatic Dimming:
Brightness can be adjusted from approximately 30% to 100% according to the selected control configuration.
Wide Viewing Angle:
Supports +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
10-Bit Display Color:
Supports 10-bit display color and approximately 1.07 billion colors.
Long Operating Lifetime:
Designed with an MTBF of approximately 50,000 hours for commercial and industrial applications.
Outdoor Aluminum Structure:
The module uses a white aluminum structure suitable for integration into customized outdoor display systems.
Landscape and Portrait Installation:
Supports horizontal or vertical installation according to the final enclosure and application design.
Flexible System Integration:
Suitable for commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects.

Configuration Options

Model Number	Platform	Resolution	Brightness	Power Consumption	Operating Temperature	Overall Dimensions
HYL-DM980-LU01-10	4K Wide-T LD980DQY-SNA1 68°C Surface Grade V1	3840 × 2160	1000 nits	710W	0°C to 50°C	2193.00 × 1250.00 × 52.10 mm
HYL-DM980-LU01-15			1500 nits	910W
HYL-DM980-LU01-20			2000 nits	1170W

Technical Configuration

Configuration Item	Series Details
Screen Size	98 inch
Resolution	3840 × 2160 4K UHD
Brightness Options	1000, 1500, and 2000 nits
Platform	4K Wide-T V1 / LU01
Open Cell	LD980DQY-SNA1
Panel Surface Grade	68°C Surface Grade
Active Area	2158.848 × 1214.352 mm
Pixel Pitch	0.5622 × 0.5622 mm
Display Colors	10-bit(D) / approximately 1.07 billion colors
Haze	28%
Backlight Type	DLED high-brightness backlight
Refresh Rate	60Hz
Response Time	8ms typical
Dimming Mode	Manual or automatic brightness adjustment, approximately 30%–100%
Viewing Angle	+89°/-89° horizontal and +89°/-89° vertical typical
Contrast Ratio	1200:1 typical
Color Gamut	Approximately 67% NTSC
MTBF	Approximately 50,000 hours
Power Consumption	710W, 910W, or 1170W according to the selected brightness configuration

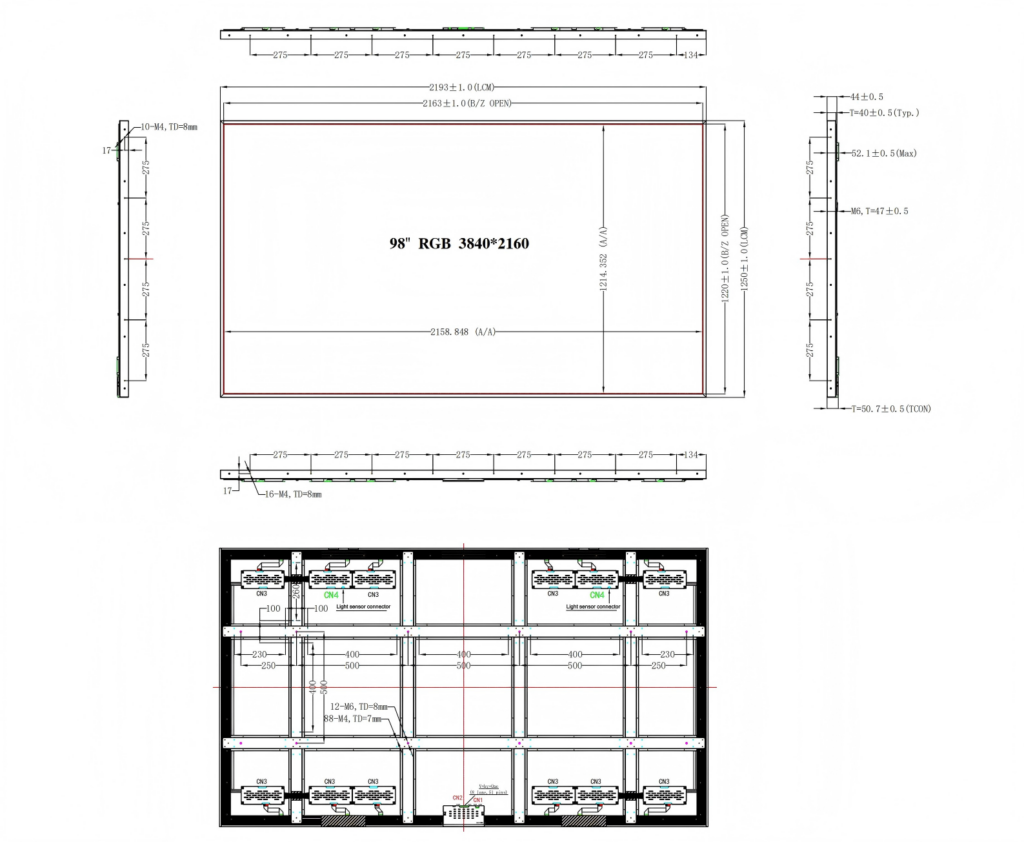

Overall Dimensions	2193.00 × 1250.00 × 52.10 mm
Weight	55.5 kg ±0.2
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

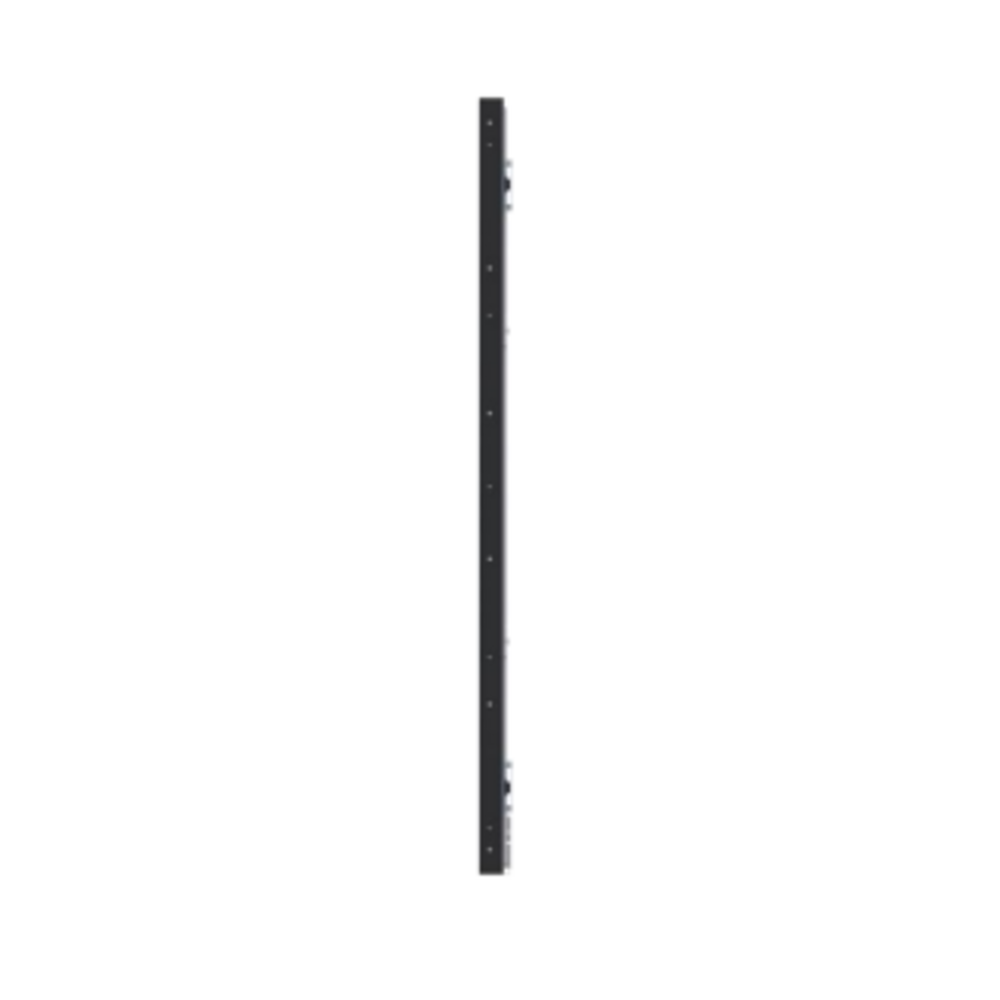

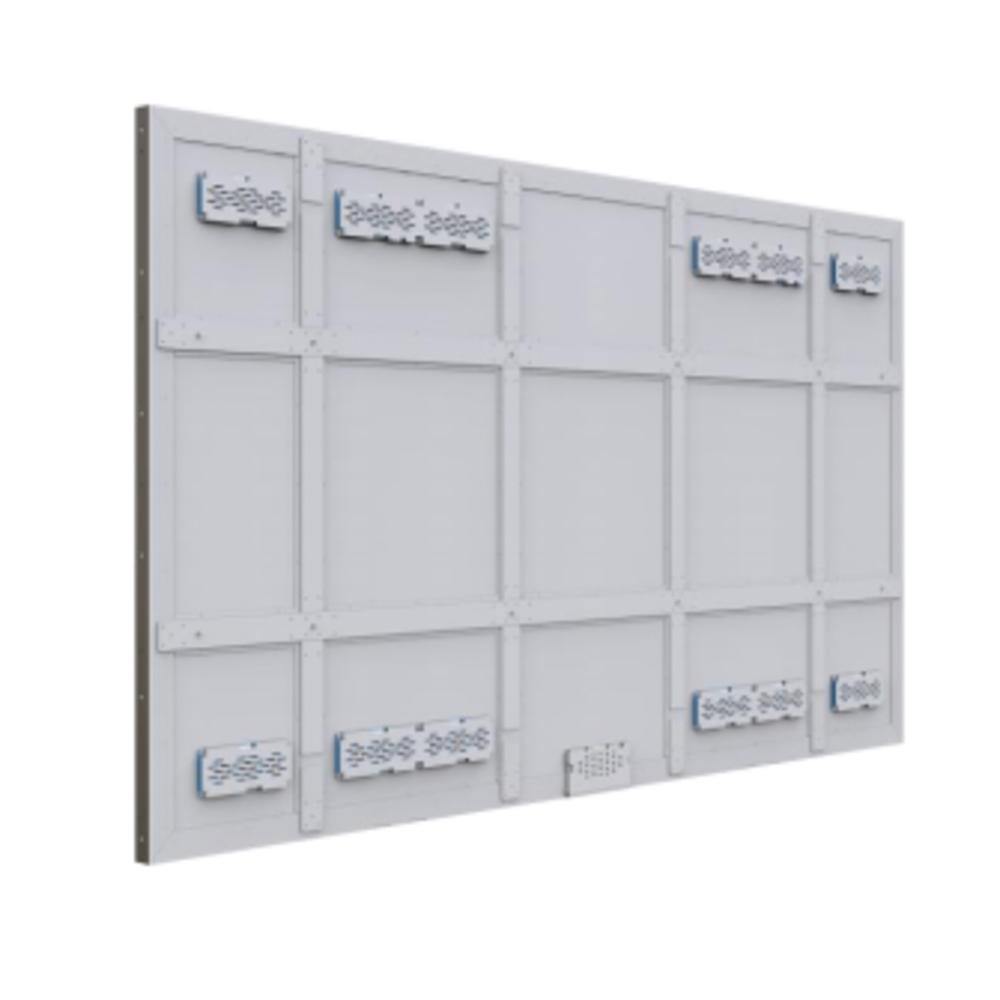

Structure	White aluminum outdoor module structure suitable for landscape or portrait integration
Touch Panel	Not included as standard
AD Board	Not included as standard
Built-In Speaker	Not included as standard
IP Rating	None / None. The LCD module itself is not supplied with an IP rating.
Humidity	≤90%
Warranty	24 months
Application Areas	Commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects

Platform Details

Comparison Item	4K Wide-T V1 LU01
Open Cell	LD980DQY-SNA1
Panel Surface Grade	68°C Surface Grade
Resolution	3840 × 2160 4K UHD
Pixel Pitch	0.5622 × 0.5622 mm
Display Colors	10-bit / 1.07 billion colors
Response Time	8ms typical
Contrast Ratio	1200:1 typical
Color Gamut	Approximately 67% NTSC
Haze	28%
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Dimming Mode	Manual / Automatic, 30%–100%
Overall Dimensions	2193.00 × 1250.00 × 52.10 mm
