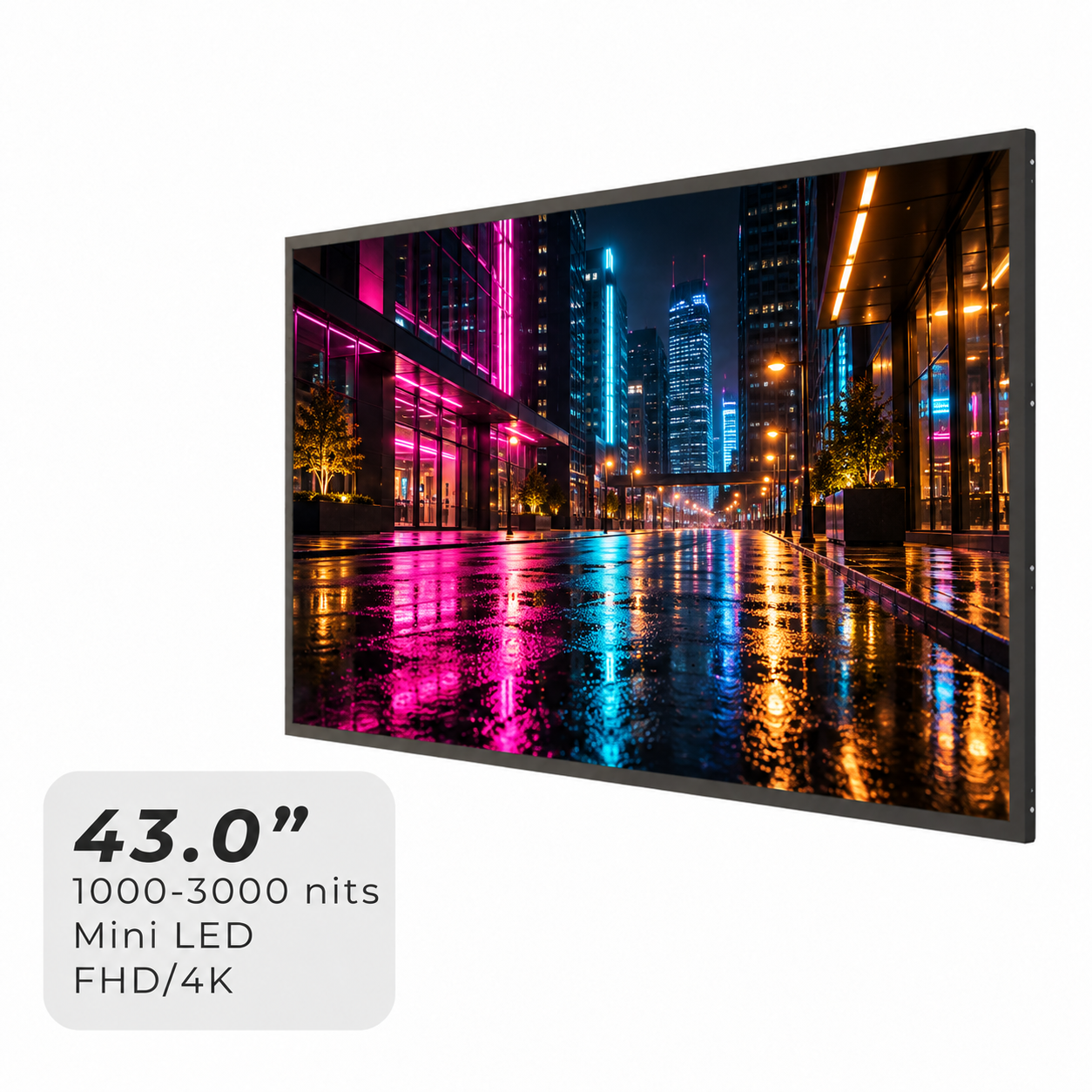

43.0″ Outdoor Dynamic-Backlight MiniLED LCD Module (1000-3000 Nits, FHD / 4K)

Product Overview

The 43-Inch Outdoor Dynamic-Backlight MiniLED LCD Module Series is designed for professional display integration projects requiring high brightness, local dimming, flexible resolution options, and reliable outdoor-oriented performance. FHD configurations are available from 1000 to 3000 nits, while 4K configurations are available from 1000 to 2000 nits.

Four display platforms are available: FHD Standard V1, FHD Hi-Tni V0, 4K Standard V1, and 4K Wide-T V1. Customers can select the appropriate platform according to resolution, operating temperature, panel characteristics, brightness, power consumption, and project environment.

All configurations use a DLED backlight with local dimming, support wide viewing angles, manual or automatic brightness adjustment, and landscape or portrait installation. The module is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone IP-rated outdoor display.

Product Features

Dynamic Local Dimming:
DLED backlight with local dimming improves contrast and visibility in outdoor and high-ambient-light environments.
Flexible Brightness Options:
FHD platforms are available from 1000 to 3000 nits, while 4K platforms are available from 1000 to 2000 nits.
FHD and 4K Platforms:
Supports 1920 × 1080 FHD and 3840 × 2160 4K UHD resolution options.
Wide-Temperature Options:
Includes standard platforms operating from 0°C to 50°C and a Hi-Tni platform operating from -20°C to 70°C.
Manual or Automatic Dimming:
Brightness can be adjusted from approximately 25% to 100% according to the selected control configuration.
Wide Viewing Angle:
Supports +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
High Contrast Performance:
Dynamic local dimming provides a typical contrast ratio of up to 1,000,000:1.
Long Operating Lifetime:
Designed with an MTBF of approximately 75,000 hours.
Outdoor Aluminum Structure:
Uses a white aluminum structure suitable for customized outdoor display integration.
Landscape and Portrait Installation:
Supports horizontal or vertical installation according to the final enclosure design.

Configuration Options

Model Number	Platform	Resolution	Brightness	Power Consumption	Operating Temperature	Overall Dimensions
HYL-DM430-MF01-10	FHD Standard LC430DUY-SHA1 68°C Surface Grade V1	1920 × 1080	1000 nits	74W typ. 89W max.	0°C to 50°C	976.00 × 564.20 × 46.90 mm
HYL-DM430-MF01-15			1500 nits	124W typ. 149W max.
HYL-DM430-MF01-20			2000 nits	138W typ. 166W max.
HYL-DM430-MF01-25			2500 nits	185W typ. 222W max.
HYL-DM430-MF01-30			3000 nits	247W typ. 296W max.
HYL-DM430-MF02-10	FHD Hi-Tni DV430FHB-R00 105°C Hi-Tni V0	1920 × 1080	1000 nits	78W typ. 94W max.	-20°C to 70°C
HYL-DM430-MF02-15			1500 nits	131W typ. 157W max.
HYL-DM430-MF02-20			2000 nits	146W typ. 175W max.
HYL-DM430-MF02-25			2500 nits	196W typ. 235W max.
HYL-DM430-MF02-30			3000 nits	261W typ. 313W max.
HYL-DM430-MU01-10	4K Standard LC430EQC-STA1 68°C Surface Grade V1	3840 × 2160	1000 nits	119W typ. 143W max.	0°C to 50°C
HYL-DM430-MU01-15			1500 nits	200W typ. 240W max.
HYL-DM430-MU01-20			2000 nits	220W typ. 264W max.
HYL-DM430-MU02-10	4K Wide-T LD430EQQ-SNN1 68°C Surface Grade V1	3840 × 2160	1000 nits	130W typ. 156W max.	0°C to 50°C
HYL-DM430-MU02-15			1500 nits	219W typ. 263W max.
HYL-DM430-MU02-20			2000 nits	243W typ. 292W max.

Technical Configuration

Configuration Item	Series Details
Screen Size	43 inch
Display Type	Outdoor dynamic-backlight MiniLED LCD module
Resolution Options	1920 × 1080 FHD or 3840 × 2160 4K UHD
Brightness Options	1000-3000 nits for FHD platforms; 1000-2000 nits for 4K platforms
Backlight Type	DLED with local dimming
Refresh Rate	60Hz
Dimming Mode	Manual or automatic brightness adjustment, approximately 25%-100%
Viewing Angle	+89°/-89° horizontal and +89°/-89° vertical typical
MTBF	Approximately 75,000 hours

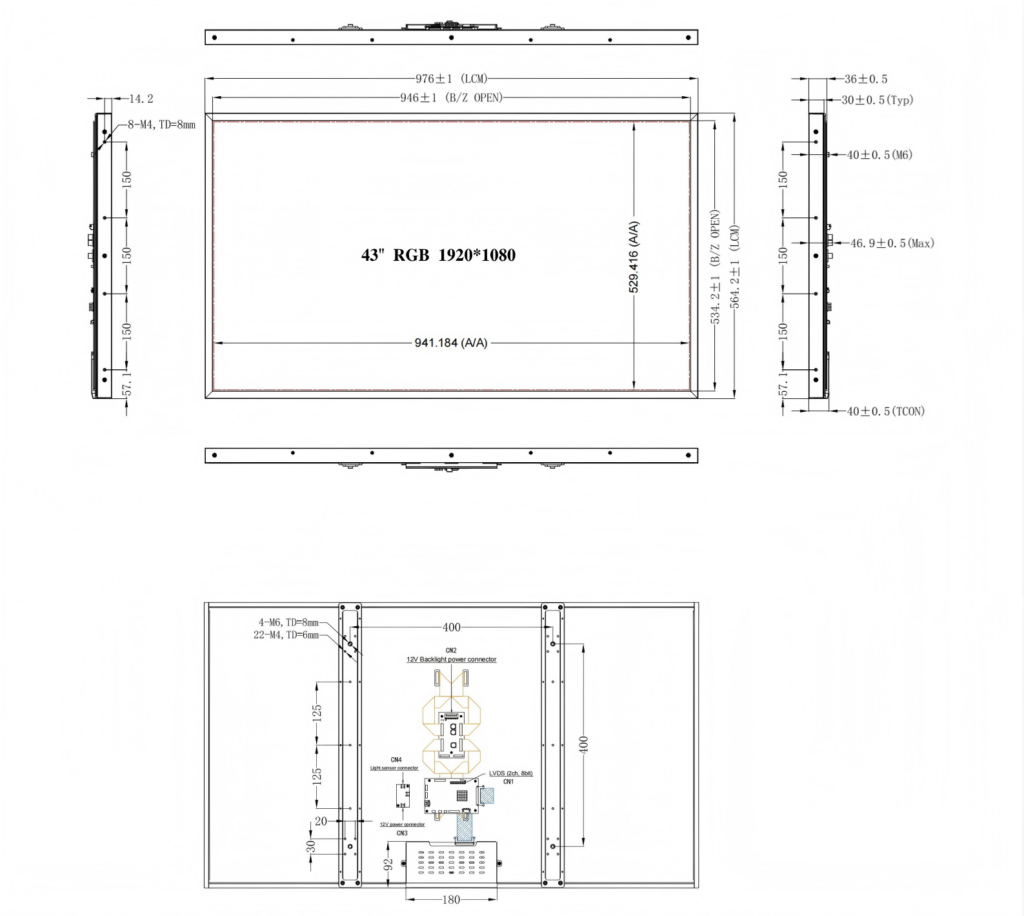

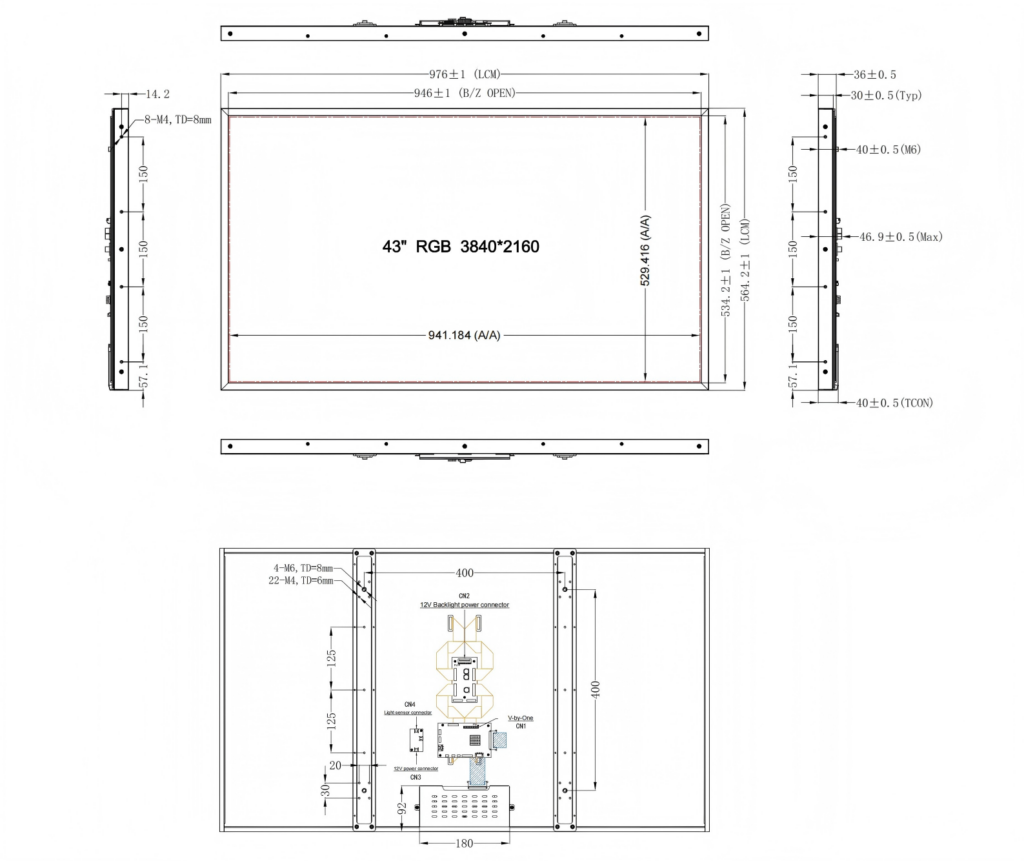

Overall Dimensions	976.00 × 564.20 × 46.90 mm
Weight	12.5 kg ±0.2
Structure	White aluminum outdoor module structure suitable for landscape or portrait integration
Touch Panel	Not included as standard
AD Board	Not included as standard
Built-In Speaker	Not included as standard
IP Rating	None / None. The LCD module itself is not supplied with an IP rating.
Humidity	≤90%
Warranty	24 months

Platform Comparison

Comparison Item	FHD Standard MF01 / V1	FHD Hi-Tni MF02 / V0	4K Standard MU01 / V1	4K Wide-T MU02 / V1
Open Cell	LC430DUY-SHA1	DV430FHB-R00	LC430EQC-STA1	LD430EQQ-SNN1
Panel Grade	68°C Surface	105°C Hi-Tni	68°C Surface	68°C Surface
Resolution	1920 × 1080	1920 × 1080	3840 × 2160	3840 × 2160
Brightness Options	1000-3000 nits	1000-3000 nits	1000-2000 nits	1000-2000 nits

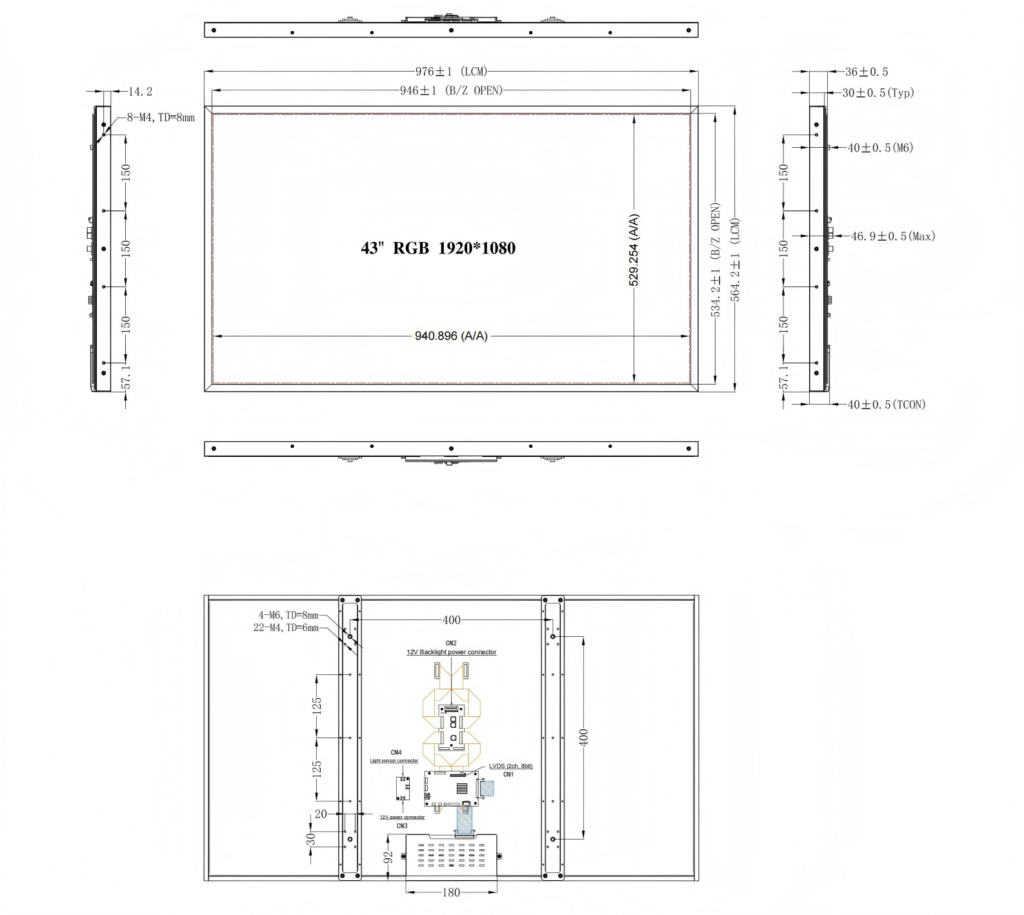

Active Area	941.184 × 529.416 mm	940.896 × 529.254 mm	941.184 × 529.416 mm	941.184 × 529.416 mm
Pixel Pitch	0.4902 × 0.4902 mm	0.49005 × 0.49005 mm	0.2451 × 0.2451 mm	0.2451 × 0.2451 mm
Display Colors	8-bit / 16.7 million	8-bit / 16.7 million	10-bit / 1.07 billion	10-bit / 1.07 billion
Haze	1%	1%	3%	3%
Response Time	8ms typical	13ms typical	8ms typical	9ms typical
Contrast Ratio	1,000,000:1	1,000,000:1	1,000,000:1	1,000,000:1
Color Gamut	77%-80% NTSC	82%-85% NTSC	80%-83% NTSC	80%-83% NTSC
Operating Temperature	0°C to 50°C	-20°C to 70°C	0°C to 50°C	0°C to 50°C
Storage Temperature	-20°C to 60°C	-30°C to 80°C	-20°C to 60°C	-20°C to 60°C
Dimming Mode	Manual / Automatic 25%-100%	Manual / Automatic 25%-100%	Manual / Automatic 25%-100%	Manual / Automatic 25%-100%
MTBF	75,000 hours	75,000 hours	75,000 hours	75,000 hours
