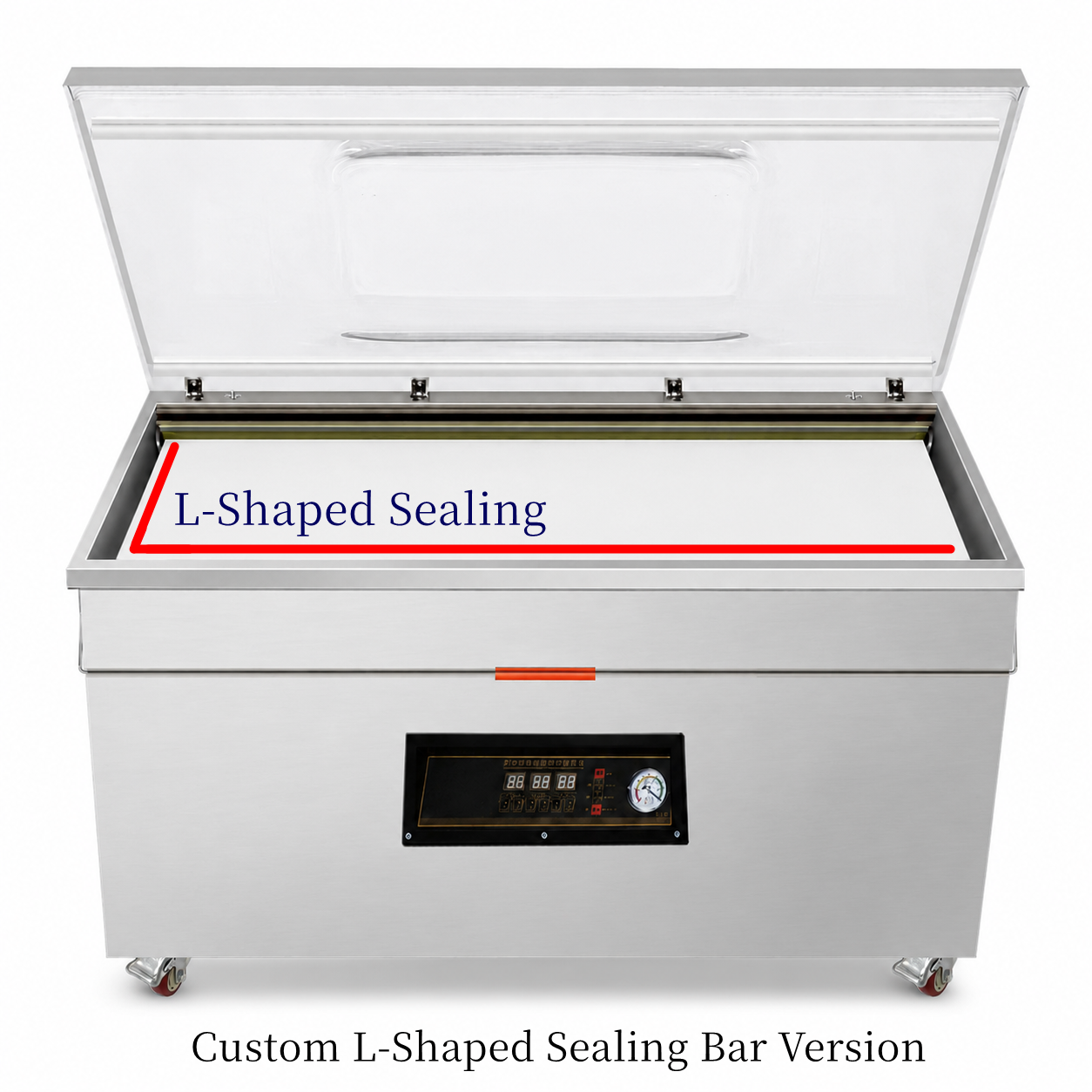

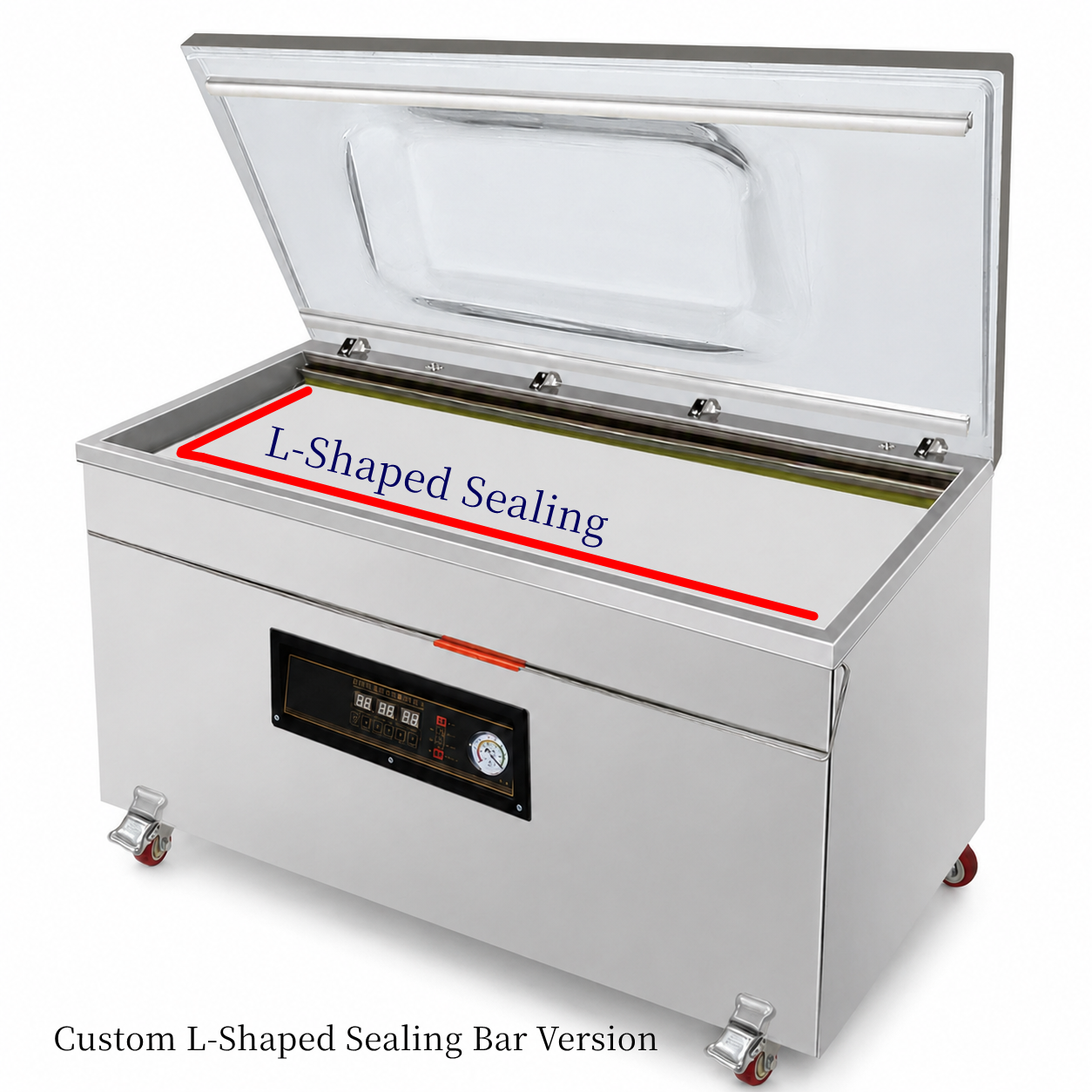

Commercial L-Shaped Sealing Bar Food Vacuum Packaging Machine (1050 × 640 mm Chamber)

This commercial L-shaped sealing bar food vacuum packaging machine is designed for large food bags, oversized products, and packaging applications that require sealing along two adjacent sides. The L-shaped sealing configuration provides a practical solution for customized food packaging in restaurants, hotel kitchens, central kitchens, supermarkets, catering operations, agricultural product packaging, and food processing facilities.

The machine features maximum usable vacuum chamber dimensions of 1050 × 640 × 250 mm. The stated 250 mm chamber height already includes approximately 50 mm of additional usable height provided by the transparent domed lid, while the base chamber height is approximately 200 mm.

The L-shaped sealing system consists of one 570 mm sealing bar and one 1000 mm sealing bar, with an 8 mm sealing width. This configuration is particularly suitable for large bags and packaging applications where conventional parallel sealing bars do not provide the required sealing layout.

The machine is equipped with dual industrial vacuum pumps for commercial vacuum packaging applications. Vacuum time, sealing time, and cooling time can be adjusted independently according to different products and packaging materials.

It is suitable for vacuum packaging meat, seafood, vegetables, grains, tea, dry goods, prepared foods, moist products, oily products, powdered products, and other commercial food materials. Vacuum packaging helps reduce air exposure and supports freshness retention, flavor protection, and more organized refrigerated or frozen storage.

Key Features

• L-shaped sealing configuration designed for large bags and two-side sealing applications.
• One 570 mm sealing bar and one 1000 mm sealing bar arranged in an L-shaped configuration.
• 8 mm widened sealing width for stable and consistent sealing.
• Maximum usable vacuum chamber dimensions of 1050 × 640 × 250 mm.
• The 250 mm maximum usable chamber height includes approximately 50 mm of additional usable height provided by the transparent domed lid.
• Dual industrial vacuum pumps for commercial vacuum packaging applications.
• Microcomputer control panel with clear digital displays and simple operating controls.
• Independent adjustment of vacuum time, sealing time, and cooling time.
• Reinforced welded stainless steel vacuum chamber for improved structural durability.
• Stainless steel machine body suitable for commercial food-processing environments.
• Thickened transparent acrylic domed lid provides visibility during the vacuum cycle.
• High-temperature-resistant silicone sealing gasket supports reliable repeated operation.
• Hydraulic lid-assist mechanism supports smooth and balanced opening and closing.
• Integrated vacuum-pressure gauge allows convenient observation during operation.
• Mobile swivel casters make positioning and movement more convenient.
• Optional date-printing function is available on selected configurations.
• Supports flexible customization for selected chamber dimensions, sealing configurations, voltage, plug type, branding, and packaging requirements.
• OEM, ODM, and private-label support are available.
• Replacement heating wires, heat-resistant PTFE cloth, chamber lid sealing gaskets, and other compatible spare parts can be supplied for long-term maintenance and after-sales support.

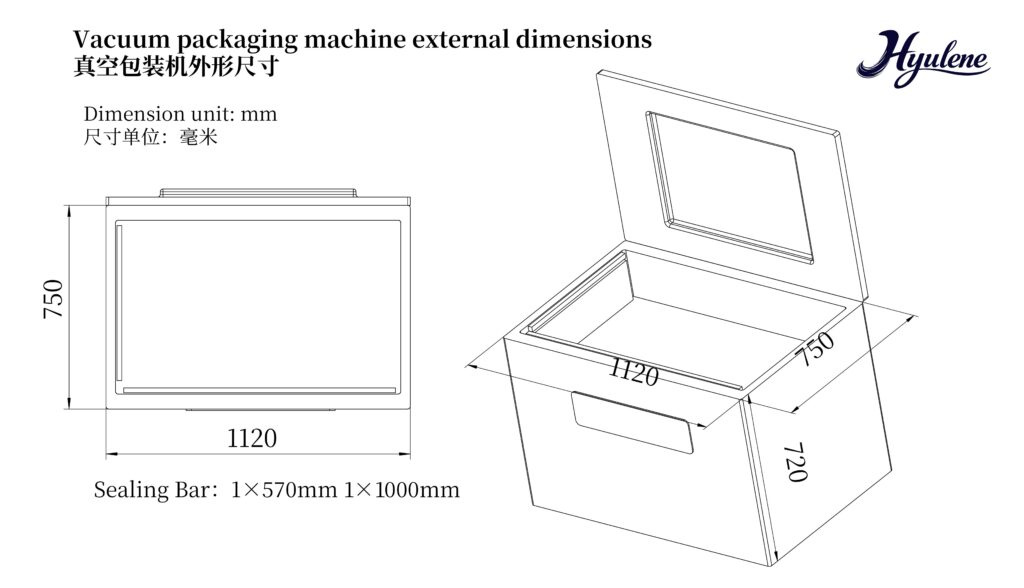

The vacuum chamber dimensions shown below already include approximately 50 mm of additional usable height provided by the raised section of the transparent domed lid. The base chamber height is approximately 200 mm, giving a maximum usable chamber height of approximately 250 mm.

Product appearance and selected specifications may vary according to the final customized configuration. Please confirm the required chamber dimensions, sealing arrangement, voltage, plug type, branding, packaging, and other project-specific requirements before production.
