开放式地面冲洗软管卷盘系列（10-20 米长）
Open Floor Washdown Hose Reel Series (10–20 m Length) - 图片 2
Open Floor Washdown Hose Reel Series (10–20 m Length) - 图片 3
Open Floor Washdown Hose Reel Series (10–20 m Length) - 图片 4

开放式地面冲洗软管卷盘系列（10-20 米长）

This open floor washdown hose reel series includes economy and hotel models with 10 m, 15 m, and 20 m hose length options. Economy models feature a black hydraulic steel wire hose and ST14 cold-rolled steel housing with electrostatic powder coating, while hotel models are available with ST14 coated steel or 304-grade stainless steel housing and a blue hose. All models include a manganese steel spring, high-hardness wear-resistant steel shaft, 95°C temperature resistance, and 300 PSI working pressure for commercial kitchen and foodservice floor washdown applications.

    申请报价

    请输入您的电子邮件地址，我们将尽快给您回复。

    分类： , 品牌：

    This open floor washdown hose reel series is designed for heavy-duty floor cleaning, equipment washing, and general washdown tasks in commercial kitchens, food processing plants, hotel back-of-house areas, central kitchens, catering facilities, and other professional foodservice environments.

    The series includes economy models and hotel models, with hose length options of 10 m, 15 m, and 20 m. Economy models are supplied with a black hydraulic steel wire hose, while hotel models are supplied with a blue hose. Selected hotel models feature a 304-grade stainless steel housing for enhanced corrosion resistance in demanding kitchen conditions.

    The housing of economy and standard hotel models is manufactured from ST14 cold-rolled steel plate, with a Q235 steel bracket and electrostatic powder coating finish for durable daily use. Stainless steel hotel models use 304-grade stainless steel for the housing, providing a hygienic and easy-to-clean surface. All models are equipped with a manganese steel spring and a center shaft made from special high-hardness, wear-resistant steel for consistent retraction performance.

    The hydraulic steel wire hose is rated for temperatures up to 95°C and a working pressure of 300 PSI, making it suitable for hot-water washdown operations. The water inlet connection is standard 1/2 inch male thread. Overall hose length manufacturing tolerance is ±5%.

    产品特点

    • Designed for open floor washdown, equipment cleaning, and general kitchen area maintenance.
    • Available in economy and hotel model configurations with different housing materials.
    • Hose length options include 10 m, 15 m, and 20 m to suit different workspace sizes.
    • Economy models use a black hydraulic steel wire hose; hotel models use a blue hose.
    • ST14 cold-rolled steel housing with Q235 steel bracket and electrostatic powder coating finish for standard models.
    • 304-grade stainless steel housing available for selected hotel models.
    • Center shaft made from special high-hardness, wear-resistant steel.
    • Manganese steel spring supports reliable and smooth hose retraction.
    • Hydraulic steel wire hose rated for temperatures up to 95°C and working pressure up to 300 PSI.
    • Standard 1/2 inch male thread water inlet connection.
    • Overall hose length tolerance is ±5%.

    应用领域

    Suitable for commercial kitchens, hotels, restaurants, central kitchens, catering facilities, food processing plants, school kitchens, factory canteens, and other professional foodservice areas that require durable and flexible open floor washdown equipment.

    型号 产品名称 Hose Length Housing Material Hose Color 产品尺寸 产品图像
    HYL-CK-FT-XD01 Economy Open Floor Washdown Hose Reel – 10 m 10 m (±5%) ST14 cold-rolled steel, electrostatic powder coating Black 466 × 442 × 205 mm HYL-CK-FT-XD01 Economy Open Floor Washdown Hose Reel 10 m
    HYL-CK-FT-XD02 Economy Open Floor Washdown Hose Reel – 15 m 15 m (±5%) ST14 cold-rolled steel, electrostatic powder coating Black 466 × 442 × 205 mm HYL-CK-FT-XD02 Economy Open Floor Washdown Hose Reel 15 m

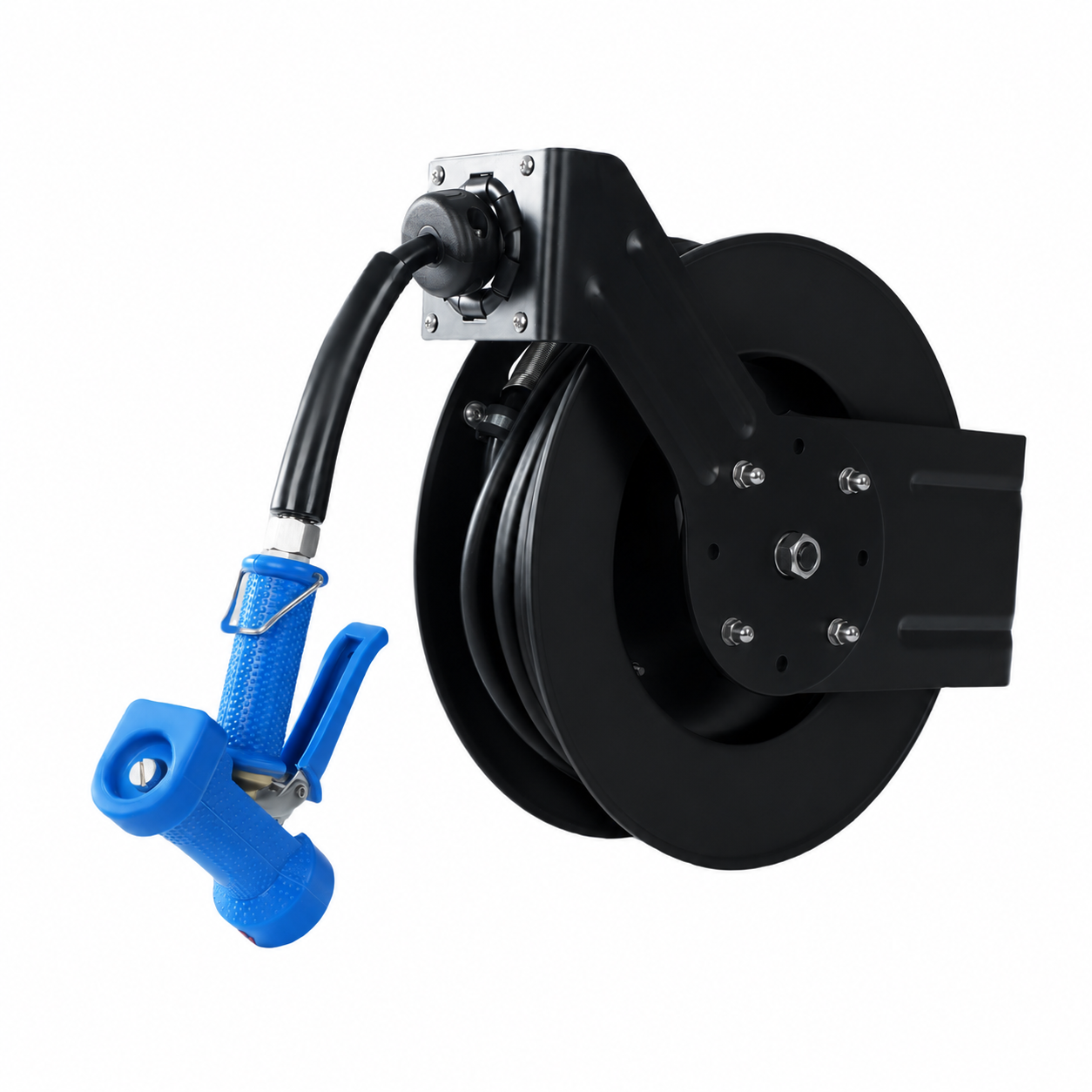

    HYL-CK-FT-XD03 Economy Open Floor Washdown Hose Reel – 20 m 20 m (±5%) ST14 cold-rolled steel, electrostatic powder coating Black 466 × 442 × 205 mm HYL-CK-FT-XD03 Economy Open Floor Washdown Hose Reel 20 m

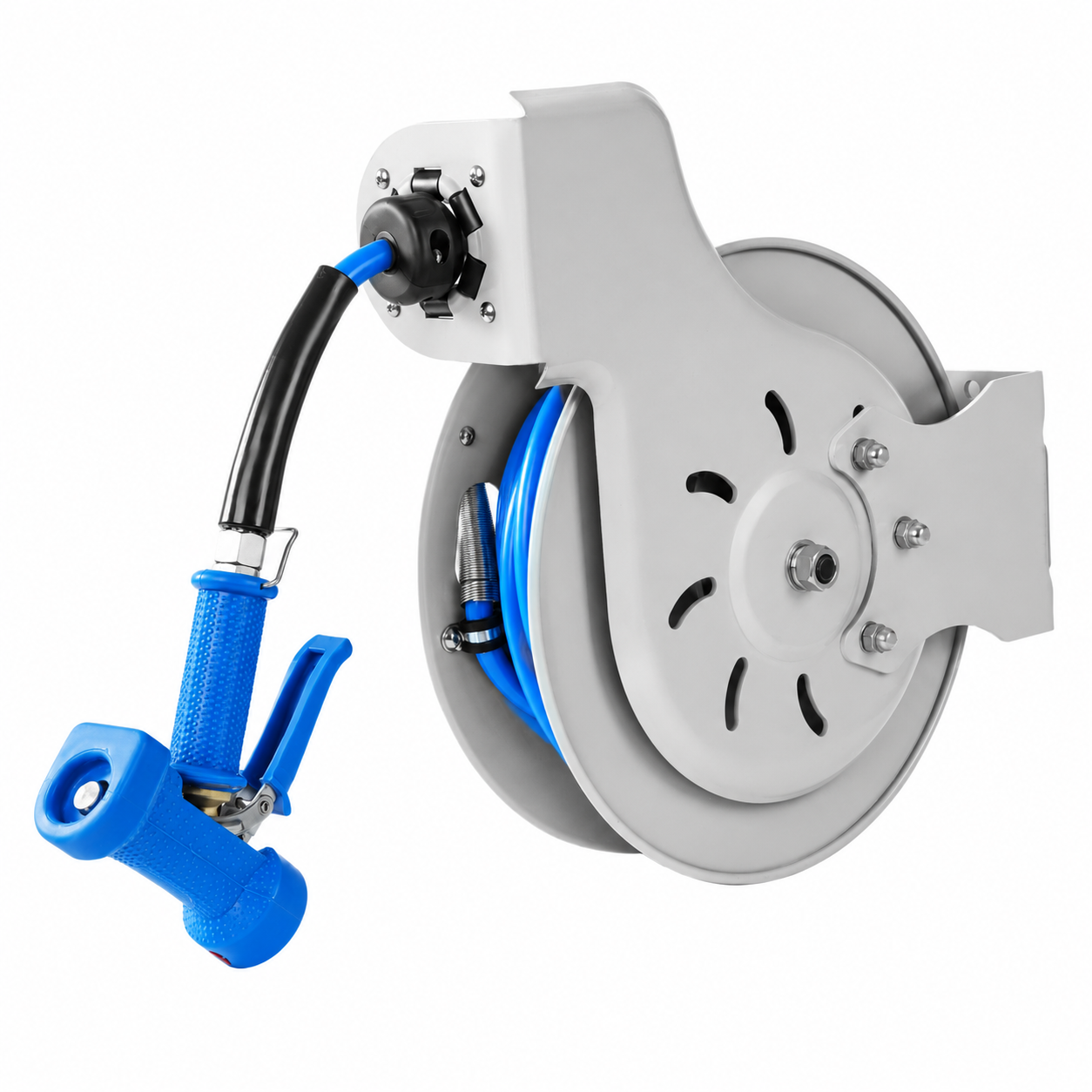

    HYL-CK-FT-XD04 Hotel Open Floor Washdown Hose Reel – 10 m 10 m (±5%) ST14 cold-rolled steel, electrostatic powder coating Blue 410 × 389 × 180 mm HYL-CK-FT-XD04 Hotel Open Floor Washdown Hose Reel 10 m
    HYL-CK-FT-XD05 Hotel Open Floor Washdown Hose Reel – 15 m 15 m (±5%) ST14 cold-rolled steel, electrostatic powder coating Blue 410 × 389 × 180 mm HYL-CK-FT-XD05 Hotel Open Floor Washdown Hose Reel 15 m
    HYL-CK-FT-XD06 Hotel Open Floor Washdown Hose Reel – 10 m (S/S) 10 m (±5%) 304-grade stainless steel Blue 410 × 389 × 180 mm HYL-CK-FT-XD06 Hotel Open Floor Washdown Hose Reel 10 m Stainless Steel

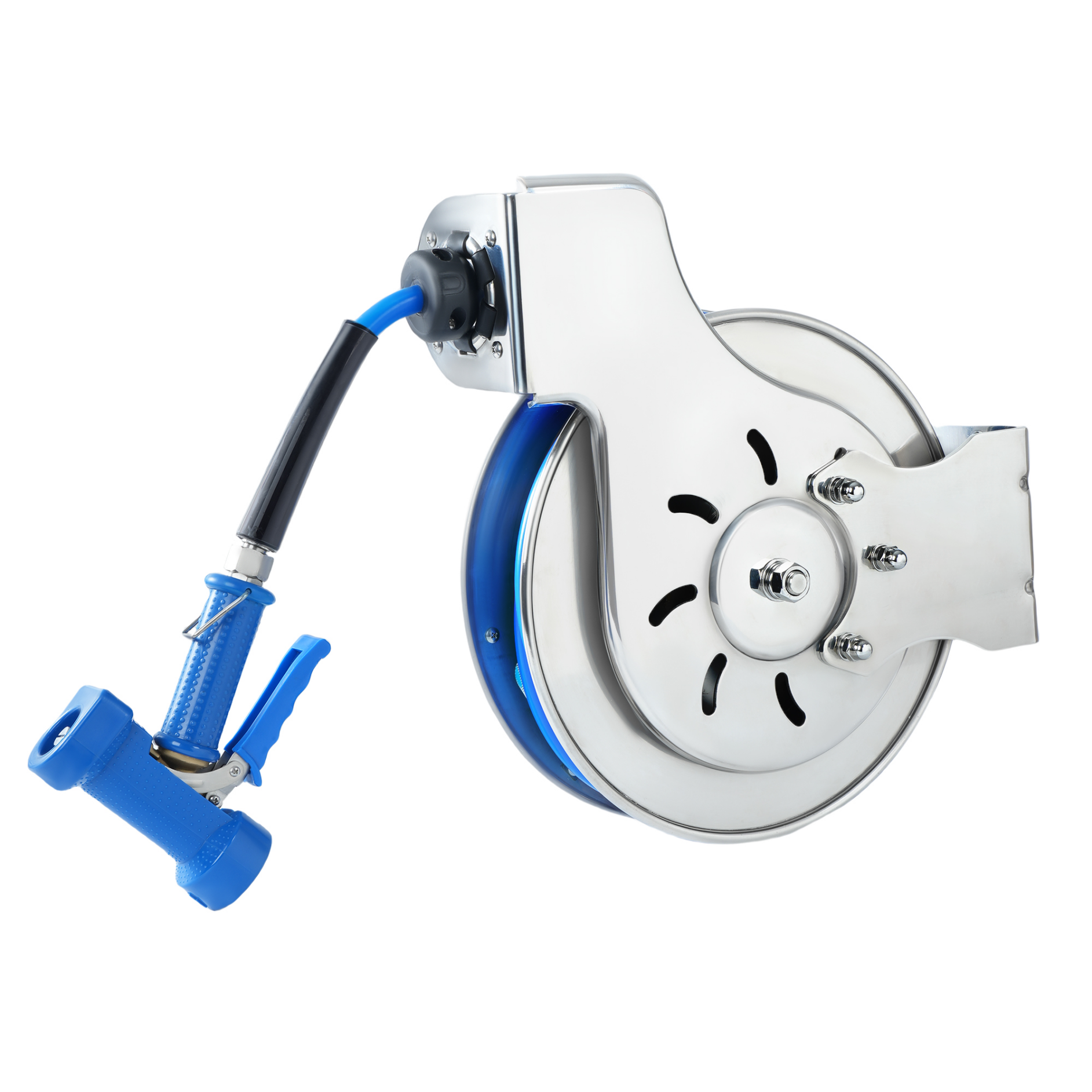

    HYL-CK-FT-XD07 Hotel Open Floor Washdown Hose Reel – 15 m (S/S) 15 m (±5%) 304-grade stainless steel Blue 410 × 389 × 180 mm HYL-CK-FT-XD07 Hotel Open Floor Washdown Hose Reel 15 m Stainless Steel

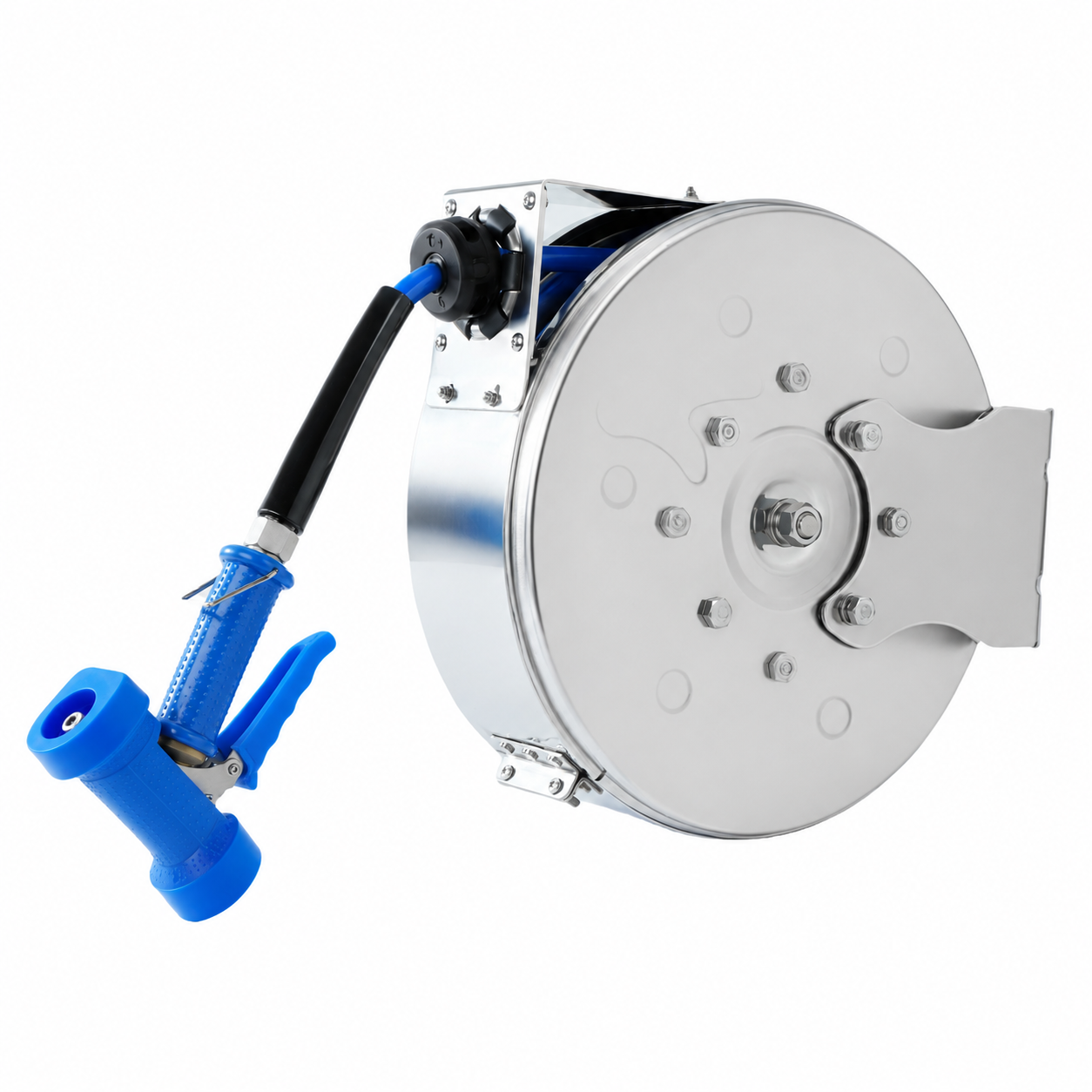

    HYL-CK-FT-XD08 Hotel Open Floor Washdown Hose Reel – 10 m (S/S) 10 m (±5%) 304-grade stainless steel Blue 409 × 390 × 180 mm HYL-CK-FT-XD08 Hotel Open Floor Washdown Hose Reel 10 m Stainless Steel

    技术配置

    配置项目 系列详情
    型号选项 Economy and hotel configurations with hose lengths of 10 m, 15 m, and 20 m
    Housing Material ST14 cold-rolled steel with Q235 bracket and electrostatic powder coating; selected hotel models use 304-grade stainless steel
    Hose Type Hydraulic steel wire hose, temperature resistant up to 95°C, working pressure 300 PSI
    Hose Color Options Black for economy models; blue for hotel models
    Spring and Shaft Manganese steel spring; center shaft made from special high-hardness, wear-resistant steel
    Water Inlet Connection 1/2 inch male thread
    制造公差 Hose length tolerance is ±5%
