Stainless Steel Butcher Work Table Series (1200–2000 mm Width)

This stainless steel butcher work table series is designed for heavy‑duty meat cutting, chopping, bone cutting, and general food processing in restaurant kitchens, hotel kitchens, canteens, central kitchens, butcher shops, and commercial food preparation areas. The reinforced countertop with a wooden core provides impact resistance for daily chopping and cutting operations.

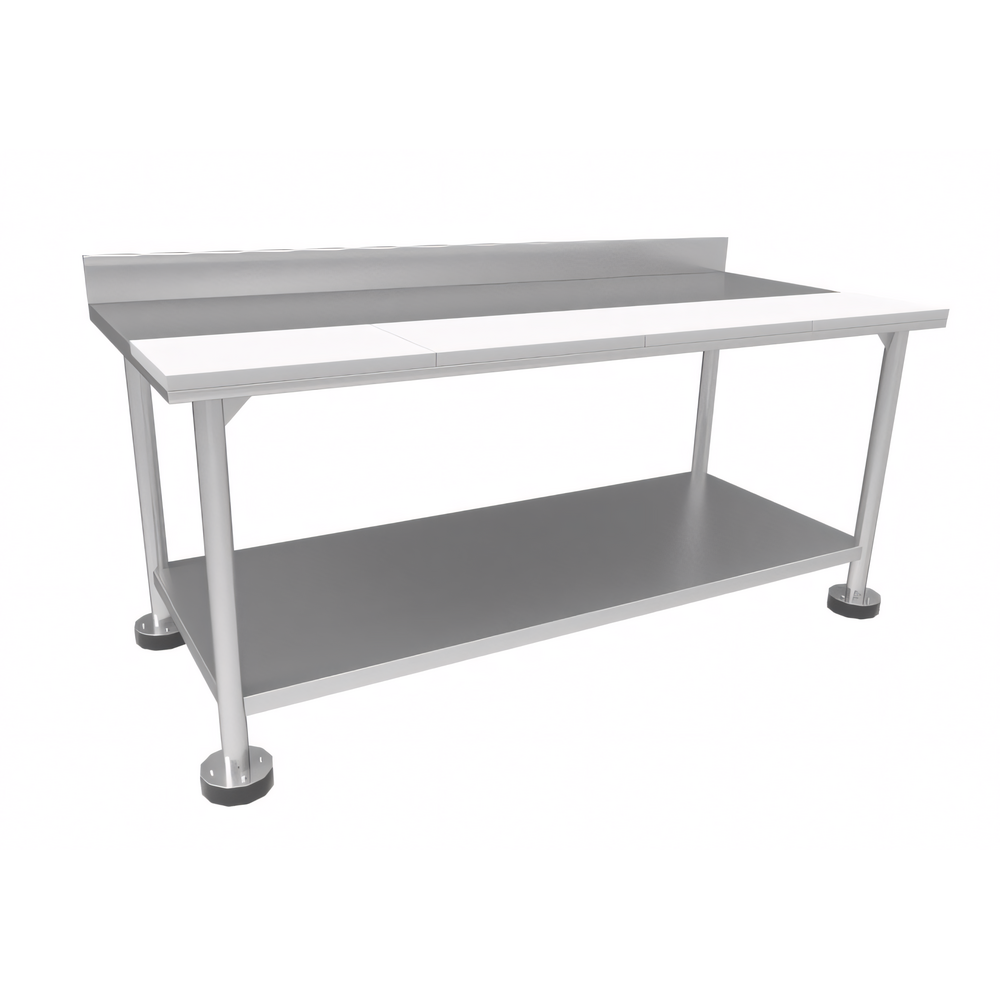

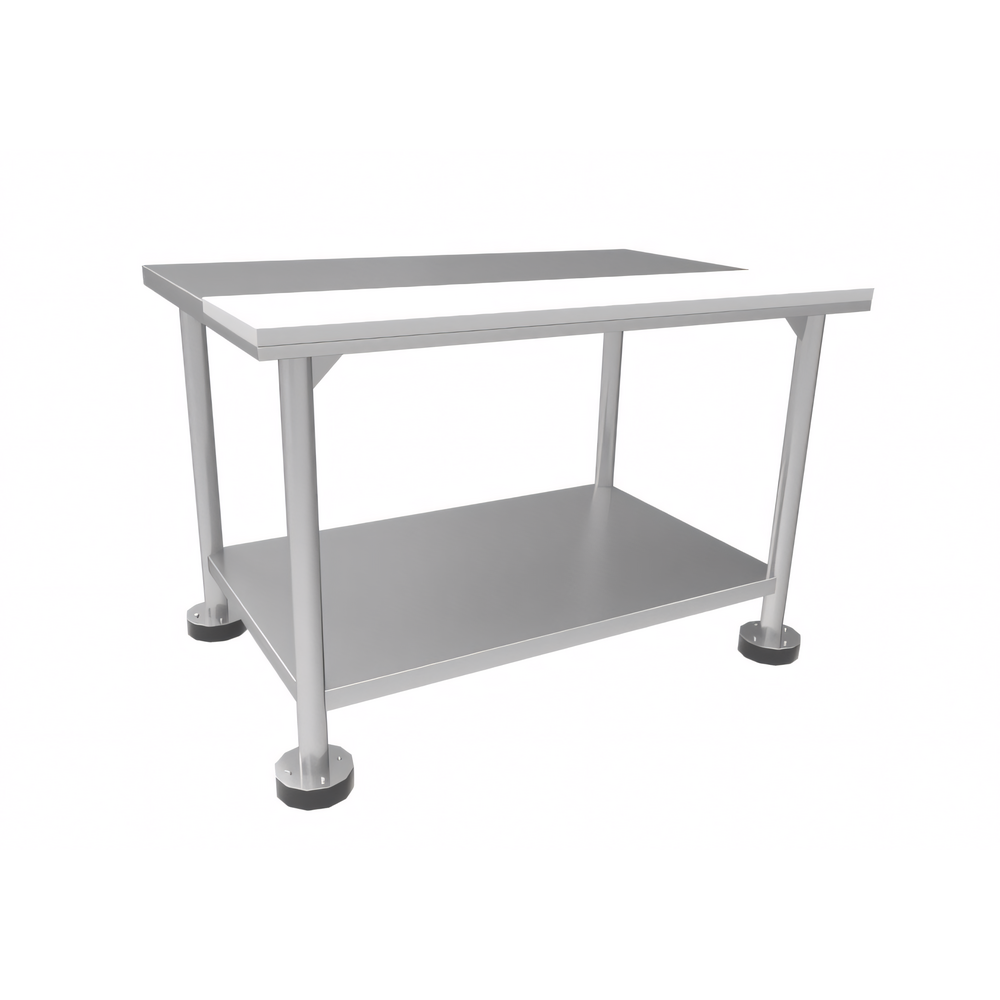

The series includes single‑shelf, double‑shelf, and triple‑shelf butcher work table models. Single‑shelf models are available with a raised back panel or standard countertop configuration in widths from 1200 mm to 2000 mm, including a wide 2000 × 1000 mm option for larger preparation spaces. Double‑shelf and triple‑shelf models provide additional under‑bench storage and are available in widths from 1200 mm to 2000 mm with both raised back panel and standard countertop options. The shelf design supports organized storage of cutting boards, meat trays, containers, and preparation tools directly at the workstation.

The main structure is manufactured from 304‑grade matte laminated stainless steel. The countertop panel is made from 1.2 mm thick stainless steel with a treated wooden board installed underneath, providing insect‑proof and moisture‑proof protection while adding impact resistance for chopping work. Shelf panels are made from 1.0 mm thick stainless steel. The leg frame is constructed from 38 × 38 × 1.0 mm stainless steel square tubes, and cross supports at the front, rear, and sides use 25 × 25 × 1.0 mm stainless steel square tubes. Selected double‑shelf and triple‑shelf models include 1.0 mm thick steel support brackets for additional shelf rigidity. Internal reinforcement is provided by 1.0 mm thick 304‑grade stainless steel ribs. All legs are fitted with adjustable stainless steel bullet feet for stable leveling. The overall manufacturing tolerance is ±5 mm.

产品特点

Designed for heavy‑duty meat cutting, chopping, bone cutting, and food processing.
Available in single‑shelf, double‑shelf, and triple‑shelf configurations.
Raised back panel and standard countertop options are available across all shelf tiers.
1.2 mm thick 304‑grade matte laminated stainless steel countertop with shock‑absorbing wooden core.
Treated wooden board provides insect‑proof and moisture‑proof protection underneath.
1.0 mm thick stainless steel shelf panels for durable under‑bench storage.
38 × 38 × 1.0 mm stainless steel square tube leg frame for strong support during chopping work.
25 × 25 × 1.0 mm stainless steel square tube cross supports at front, rear, and sides.
Adjustable stainless steel bullet feet provide stable installation and leveling.
用 1.0 毫米厚的 304 级不锈钢肋条加固，以确保结构稳定性。

应用领域

Suitable for restaurant meat preparation areas, hotel kitchen butchery sections, canteen food processing zones, central kitchen production lines, butcher shops, catering operations, and commercial food preparation areas that require a sturdy stainless steel chopping and cutting work surface with integrated storage.

型号	产品名称	Shelf Configuration	背板选项	产品尺寸
HYL-CK-SS-ZT01	Single-Shelf Butcher Work Table (With Back Panel)	Single shelf	凸起的背板	1200 × 760 × 810 毫米
HYL-CK-SS-ZT02	Single-Shelf Butcher Work Table (Standard)	Single shelf	标准台面	1200 × 800 × 810 毫米
HYL-CK-SS-ZT03	Single-Shelf Butcher Work Table (With Back Panel)	Single shelf	凸起的背板	1500 × 760 × 810 毫米
HYL-CK-SS-ZT04	Single-Shelf Butcher Work Table (Standard)	Single shelf	标准台面	1500 × 800 × 810 毫米
HYL-CK-SS-ZT05	Single-Shelf Butcher Work Table (With Back Panel)	Single shelf	凸起的背板	1800 × 760 × 810 毫米
HYL-CK-SS-ZT06	Single-Shelf Butcher Work Table (Standard)	Single shelf	标准台面	1800 × 800 × 810 毫米
HYL-CK-SS-ZT07	Single-Shelf Butcher Work Table (Standard)	Single shelf	标准台面	2000 × 1000 × 810 毫米
HYL-CK-SS-ZT08	Double-Shelf Butcher Work Table (Standard)	Double shelf	标准台面	1200 × 1000 × 810 毫米
HYL-CK-SS-ZT09	Double-Shelf Butcher Work Table (With Back Panel)	Double shelf	凸起的背板	1200 × 760 × 810 毫米
HYL-CK-SS-ZT10	Double-Shelf Butcher Work Table (Standard)	Double shelf	标准台面	1200 × 800 × 810 毫米
HYL-CK-SS-ZT11	Double-Shelf Butcher Work Table (With Back Panel)	Double shelf	凸起的背板	1500 × 760 × 810 毫米
HYL-CK-SS-ZT12	Double-Shelf Butcher Work Table (Standard)	Double shelf	标准台面	1500 × 800 × 810 毫米
HYL-CK-SS-ZT13	Double-Shelf Butcher Work Table (With Back Panel)	Double shelf	凸起的背板	1800 × 760 × 810 毫米
HYL-CK-SS-ZT14	Double-Shelf Butcher Work Table (Standard)	Double shelf	标准台面	1800 × 800 × 810 毫米
HYL-CK-SS-ZT15	Double-Shelf Butcher Work Table (With Back Panel)	Double shelf	凸起的背板	2000 × 760 × 810 毫米
HYL-CK-SS-ZT16	Double-Shelf Butcher Work Table (Standard)	Double shelf	标准台面	2000 × 800 × 810 毫米
HYL-CK-SS-ZT17	Triple-Shelf Butcher Work Table (With Back Panel)	Triple shelf	凸起的背板	1200 × 760 × 810 毫米
HYL-CK-SS-ZT18	Triple-Shelf Butcher Work Table (Standard)	Triple shelf	标准台面	1200 × 800 × 810 毫米
HYL-CK-SS-ZT19	Triple-Shelf Butcher Work Table (With Back Panel)	Triple shelf	凸起的背板	1500 × 760 × 810 毫米
HYL-CK-SS-ZT20	Triple-Shelf Butcher Work Table (Standard)	Triple shelf	标准台面	1500 × 800 × 810 毫米
HYL-CK-SS-ZT21	Triple-Shelf Butcher Work Table (With Back Panel)	Triple shelf	凸起的背板	1800 × 760 × 810 毫米
HYL-CK-SS-ZT22	Triple-Shelf Butcher Work Table (Standard)	Triple shelf	标准台面	1800 × 800 × 810 毫米

技术配置

配置项目	系列详情
工作台应用	Heavy‑duty meat cutting, chopping, bone cutting, and food processing
Shelf Configuration Options	Single‑shelf, double‑shelf, and triple‑shelf models are available
背板选项	Raised back panel and standard countertop options are available across all shelf tiers
宽度选项	可提供 1200 毫米、1500 毫米、1800 毫米和 2000 毫米型号
Countertop Design	1.2 mm thick 304‑grade stainless steel countertop with shock‑absorbing wooden core and insect‑proof and moisture‑proof treatment
框架结构	38 × 38 × 1.0 mm stainless steel square tube legs; 25 × 25 × 1.0 mm cross supports; 1.0 mm thick 304‑grade stainless steel reinforcement ribs
主要材料	304‑grade matte laminated stainless steel; 1.2 mm countertop; 1.0 mm shelf panels
脚部设计	Adjustable stainless steel bullet feet for stable leveling
制造公差	±5毫米
