UV Photocatalytic Purifier Series (4000–60000 m³/h)

This UV photocatalytic purifier series is designed for odor removal, grease breakdown, and volatile organic compound treatment in commercial kitchen exhaust air. It is suitable for restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, food courts, school kitchens, factory dining halls, and other foodservice environments where exhaust air deodorization and purification are required to meet environmental discharge standards.

The series includes ten models with rated air volume capacities from 4000 m³/h to 60000 m³/h, covering single-layer, double-layer, and triple-layer unit configurations. Power ratings range from 80 W to 440 W depending on model size and treatment capacity. All units operate on 220V AC 50 Hz single-phase power supply and use ultraviolet photocatalytic oxidation technology to treat cooking odors and organic compounds in low-level extraction systems.

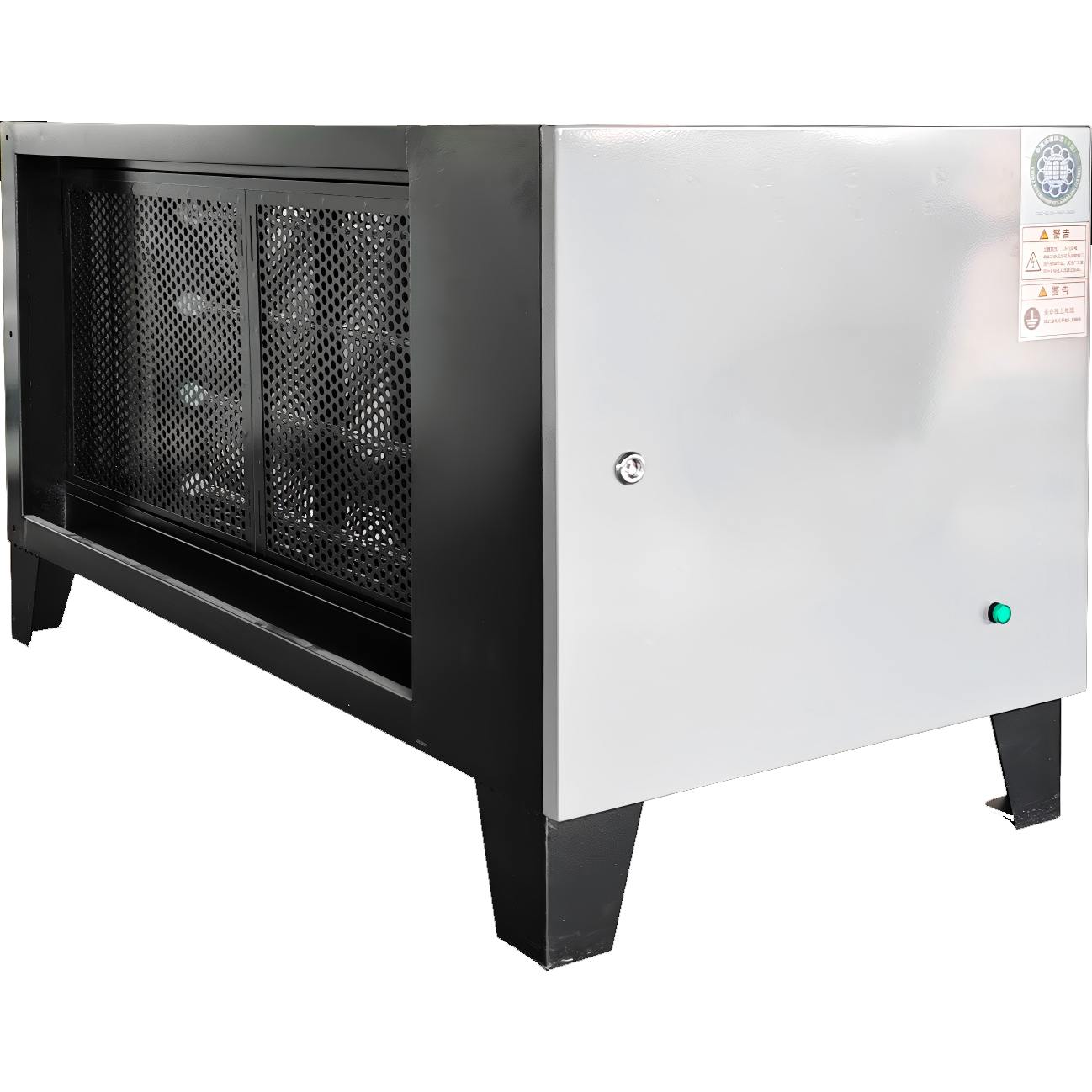

Each unit is constructed with an integrated UV lamp chamber within a welded enclosure frame, designed for in-line installation in commercial kitchen exhaust ductwork. The inlet and outlet flanges are sized according to model capacity. A front service clearance of 900 mm must be reserved before the access door for routine lamp replacement and chamber cleaning. The UV photocatalytic process works by exposing exhaust air to high-intensity ultraviolet light in the presence of a catalyst, breaking down odor molecules and organic residues into harmless compounds before discharge.

产品特点

Designed for odor removal, grease breakdown, and organic compound treatment in commercial kitchen exhaust air.
十种型号，额定风量从 4000 m³/h 到 60000 m³/h 不等。
Single-layer, double-layer, and triple-layer UV lamp chamber configurations are available.
Power ratings from 80 W to 440 W for different kitchen exhaust treatment requirements.
220 伏交流 50 赫兹单相电源，适用于所有型号。
UV photocatalytic oxidation technology for effective deodorization and fume purification.
入口和出口法兰连接尺寸根据型号容量确定。
Front service clearance of 900 mm required for lamp replacement and maintenance access.
Welded enclosure frame designed for in-line ductwork installation.

应用领域

Suitable for restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, food courts, school kitchens, factory dining halls, and other commercial foodservice environments that require UV photocatalytic exhaust air deodorization and purification.

型号	产品名称	Lamp Layers	额定功率	空气量	产品尺寸	服务清理
HYL-CK-PF-UV01	UV Photocatalytic Purifier 4000 m³/h	单层	80 W	4000 立方米/小时	900 × 600 × 700 mm	900 毫米
HYL-CK-PF-UV02	UV Photocatalytic Purifier 6000 m³/h	单层	120 W	6000 立方米/小时	700 × 600 × 700 mm	900 毫米
HYL-CK-PF-UV03	UV Photocatalytic Purifier 8000 m³/h	单层	160 W	8000 立方米/小时	900 × 600 × 700 mm	900 毫米
HYL-CK-PF-UV04	UV Photocatalytic Purifier 12000 m³/h	单层	200 W	12000 立方米/小时	1200 × 600 × 700 mm	900 毫米
HYL-CK-PF-UV05	UV Photocatalytic Purifier 16000 m³/h	单层	240 W	16000 立方米/小时	1600 × 600 × 700 mm	900 毫米
HYL-CK-PF-UV06	UV Photocatalytic Purifier 24000 m³/h	双层	280 W	24000 立方米/小时	1200 × 600 × 1300 mm	900 毫米
HYL-CK-PF-UV07	UV Photocatalytic Purifier 32000 m³/h	双层	320 W	32000 立方米/小时	1600 × 600 × 1300 mm	900 毫米
HYL-CK-PF-UV08	UV Photocatalytic Purifier 40000 m³/h	双层	360 W	40000 立方米/小时	1900 × 600 × 1300 mm	900 毫米
HYL-CK-PF-UV09	UV Photocatalytic Purifier 48000 m³/h	三层	400 W	48000 立方米/小时	1600 × 600 × 1900 mm	900 毫米
HYL-CK-PF-UV10	UV Photocatalytic Purifier 60000 m³/h	三层	440 W	60000 立方米/小时	1900 × 600 × 1880 mm	900 毫米

技术配置

配置项目	系列详情
净化方法	Ultraviolet photocatalytic oxidation for odor removal, grease breakdown, and organic compound treatment
风量范围	4000 m³/h 至 60000 m³/h 额定处理能力
Lamp Layer Configuration	单层、双层和三层选项，视型号而定
电源	220 伏交流电/50 赫兹单相，适用于所有型号
额定功率	80 W to 440 W depending on model and treatment capacity
服务清理	Front access door requires 900 mm maintenance clearance for all models
安装类型	In-line ductwork installation for commercial kitchen exhaust systems
