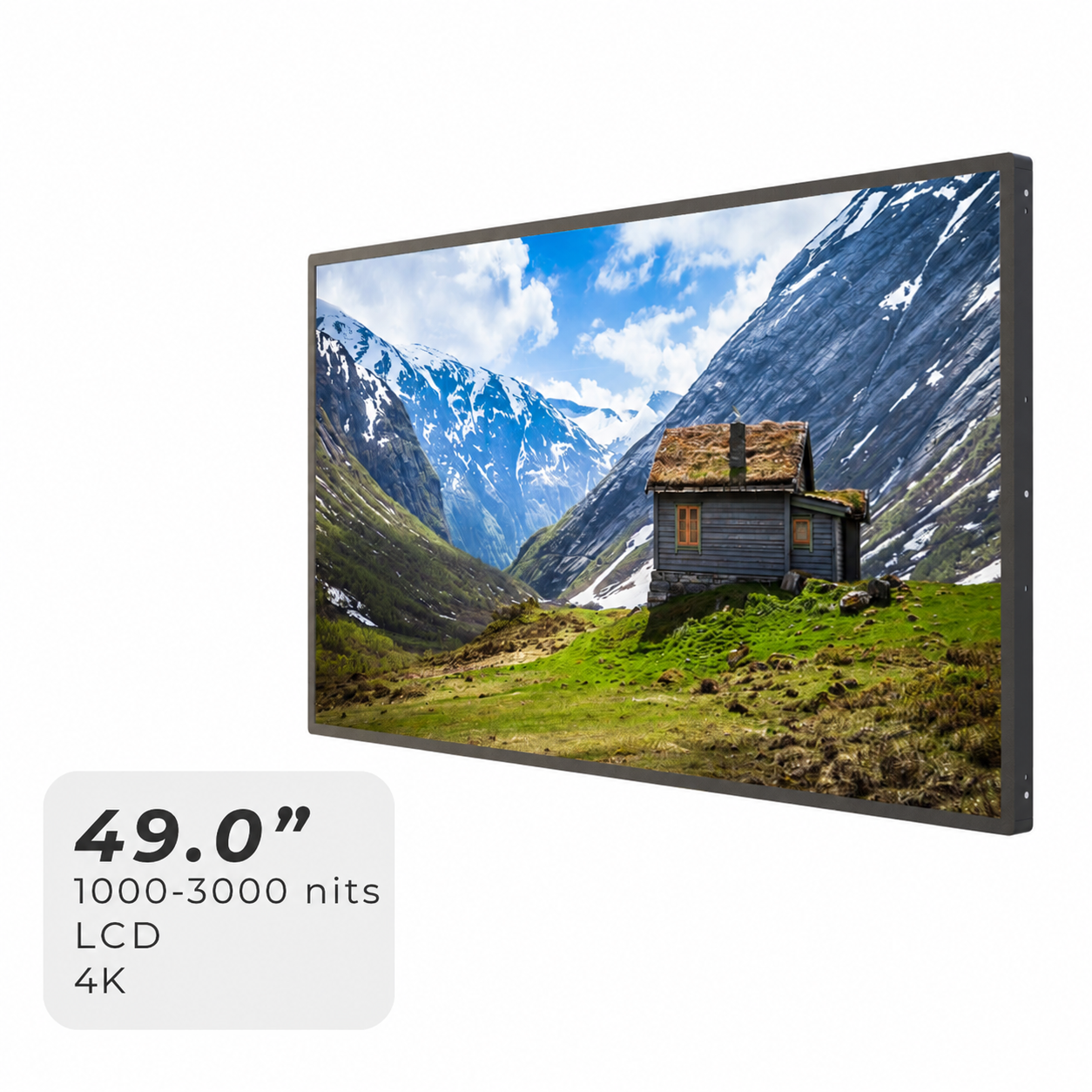

49.0″ Outdoor Integration High-Brightness 4K LCD Module (1000–3000 Nits)

Product Overview

The 49-Inch Outdoor High-Brightness LCD Module Series is designed for professional display integration projects that require strong sunlight readability, high-resolution image performance, and flexible brightness options. The series is available in 1000, 1500, 2000, 2500, and 3000 nits configurations for commercial displays, outdoor digital signage, industrial equipment, information systems, exhibitions, transportation displays, and customized display integration.

All configurations use a 49-inch 3840 × 2160 display platform with DLED high-brightness backlight, 10-bit color depth, wide viewing angles, manual or automatic brightness adjustment, and an outdoor aluminum structure suitable for landscape or portrait installation.

The module is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone outdoor display. AD board, touch panel, built-in speaker, operating system, and IP-rated enclosure are not included as standard.

Product Features

High-Brightness Options:
Available in 1000, 1500, 2000, 2500, and 3000 nits configurations for different ambient-light and outdoor viewing requirements.
4K Resolution:
3840 × 2160 resolution provides high-detail image reproduction for professional commercial and industrial display applications.
Sunlight Readable:
High-brightness DLED backlight improves display visibility in strong ambient-light and daylight environments.
Manual or Automatic Dimming:
Brightness can be adjusted from approximately 30% to 100% according to the selected control configuration.
Wide Viewing Angle:
Supports +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
10-Bit Display Color:
Supports approximately 1.07 billion colors for smoother color reproduction and image gradients.
Long Operating Lifetime:
Designed with an MTBF of approximately 50,000 hours for continuous commercial and industrial operation.

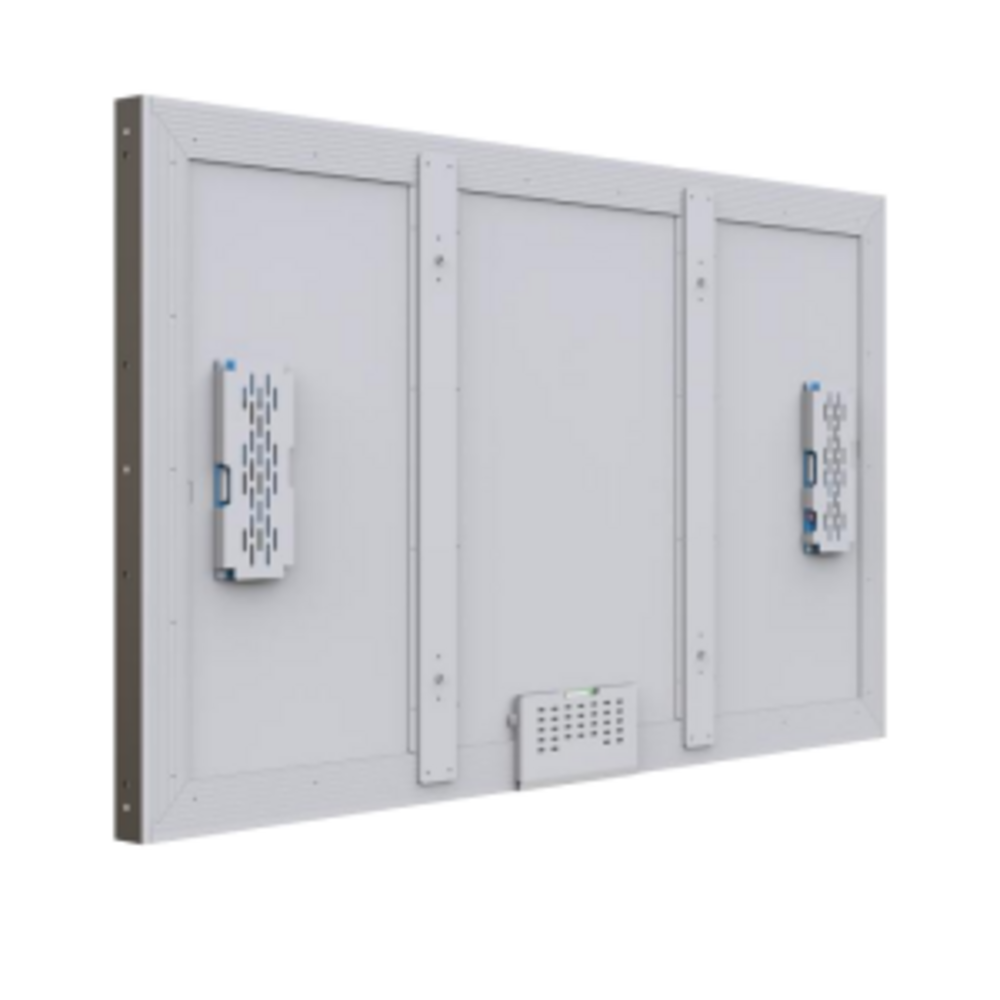

Outdoor Aluminum Structure:
Aluminum module construction supports professional integration into customized display systems.
Landscape and Portrait Installation:
Supports horizontal or vertical installation according to the final enclosure and application design.
Flexible System Integration:
Suitable for commercial displays, industrial equipment, digital signage, exhibitions, information terminals, transportation systems, and customized display projects.

Configuration Options

Model Number	Brightness	Power Consumption	Operating Temperature	Dimensions
HYL-DM-490-1000	1000 nits	85W	-10°C to 60°C	1109.00 × 639.00 × 52.50 mm
HYL-DM-490-1500	1500 nits	115W
HYL-DM-490-2000	2000 nits	155W
HYL-DM-490-2500	2500 nits	200W
HYL-DM-490-3000	3000 nits	240W

Technical Configuration

Configuration Item	Series Details
Screen Size	49 inch
Resolution	3840 × 2160
Brightness Options	1000, 1500, 2000, 2500, and 3000 nits
Active Area	1073.78 × 604.00 mm
Pixel Pitch	0.27963 × 0.27963 mm
Display Colors	10-bit / approximately 1.07 billion colors
Backlight Type	DLED
Response Time	9 ms (G to G), typical
Contrast Ratio	1000:1 typical
Color Gamut	Approximately 62% NTSC
Haze	28%
Refresh Rate	60Hz
Dimming Mode	Manual or automatic, approximately 30%–100%
Viewing Angle	+89°/-89° horizontal and +89°/-89° vertical typical
MTBF	Approximately 50,000 hours
Open Cell	LD490EGY-SKM6 / 68°C surface temperature grade
Overall Dimensions	1109.00 × 639.00 × 52.50 mm
Weight	Approximately 13.7 kg
Structure	White aluminum outdoor module structure
Touch Panel	Not included as standard
AD Board	Not included as standard
Built-In Speaker	Not included as standard
IP Rating	None / None. The LCD module itself is not supplied with an IP rating.
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 60°C
Humidity	≤90%
Warranty	24 months
Application Areas	Commercial displays, outdoor digital signage, industrial equipment, exhibitions, transportation displays, information systems, and customized display projects

Brightness Configuration Comparison

Brightness	Power Consumption	Resolution	Operating Temperature
1000 nits	85W	3840 × 2160	-10°C to 60°C
1500 nits	115W	3840 × 2160	-10°C to 60°C
2000 nits	155W	3840 × 2160	-10°C to 60°C
2500 nits	200W	3840 × 2160	-10°C to 60°C
3000 nits	240W	3840 × 2160	-10°C to 60°C

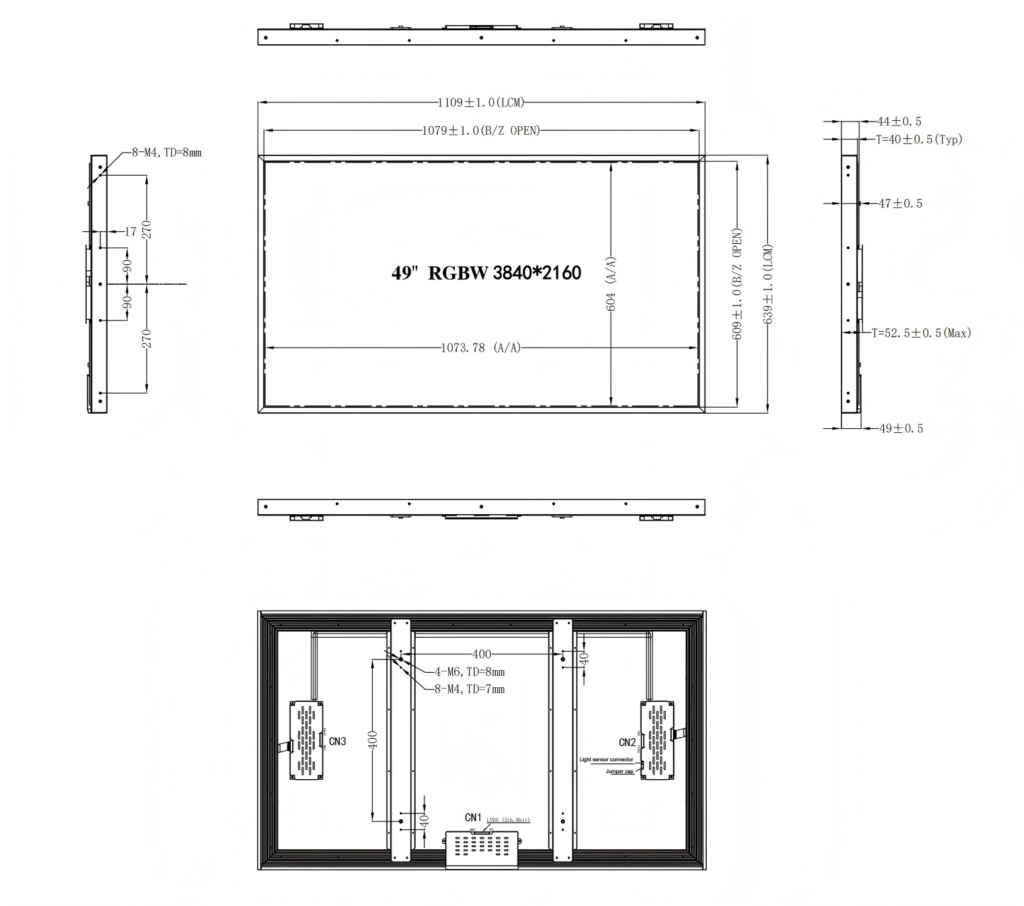

Mechanical Drawing

【图片型号：49英寸 YZ490MBU Series Mechanical Drawing】

The 1000, 1500, 2000, 2500, and 3000 nits configurations share the same nominal overall module dimensions and mechanical platform. Please confirm the final mechanical drawing, mounting-hole positions, cable layout, and connection details before enclosure design, system integration, or mass production.
