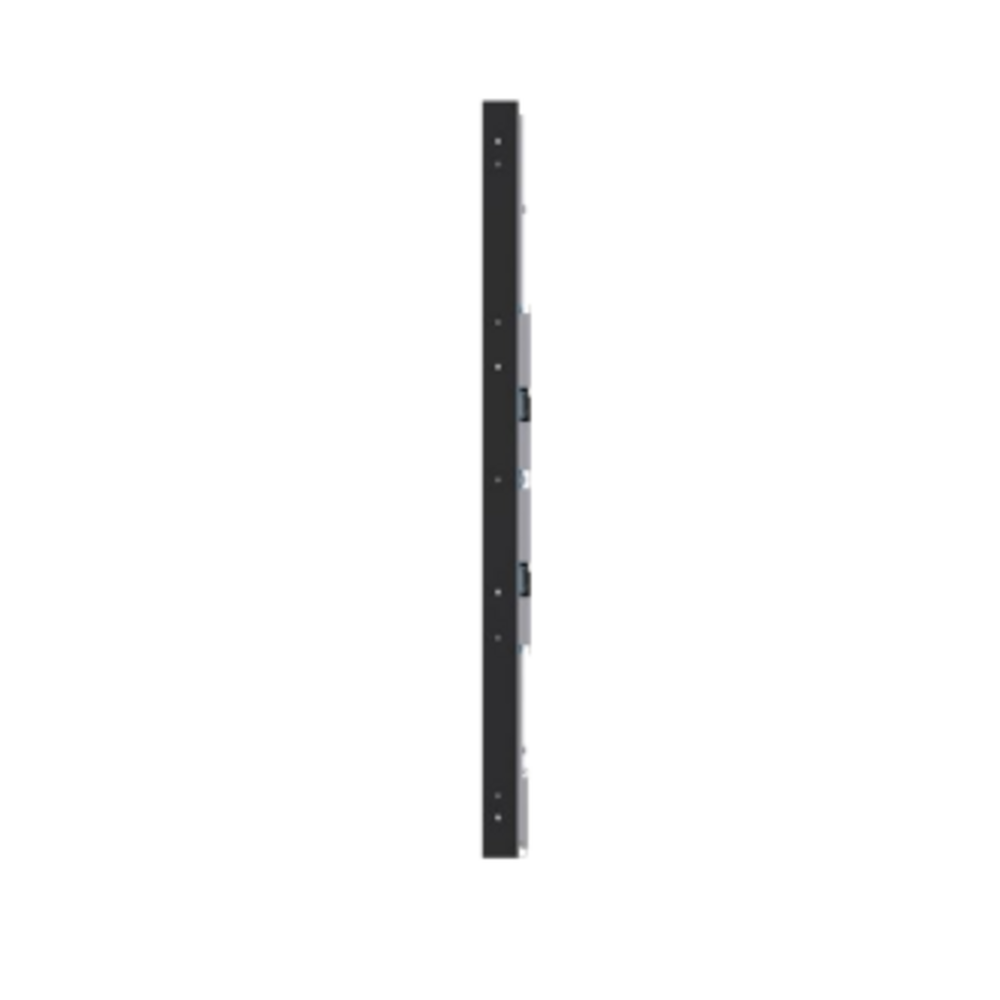

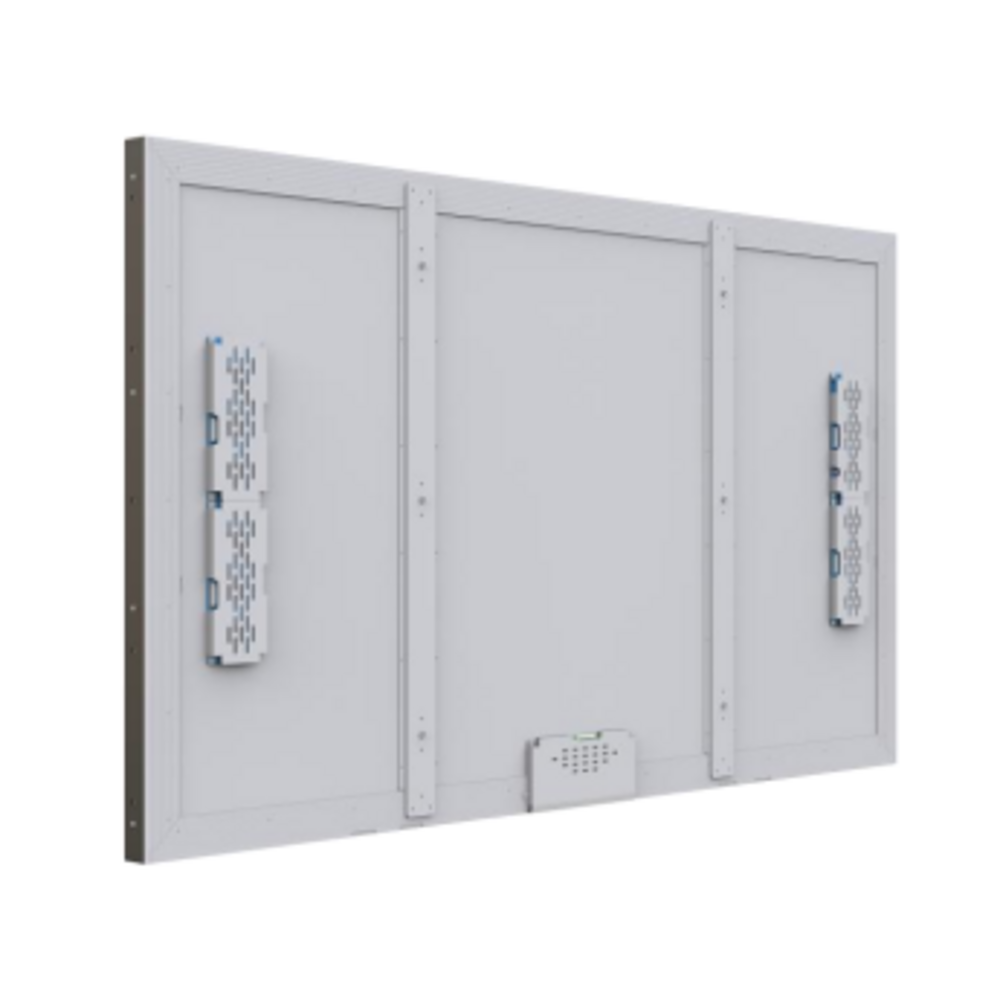

Product Overview
The 65-Inch Outdoor High-Brightness LCD Module Series is designed for professional outdoor display integration projects requiring strong sunlight readability, flexible brightness selection, stable operation, and reliable system integration. The series is available in 1000, 1500, 2000, 2500, and 3000 nits configurations.
Two 4K display platforms are available: a 4K Standard configuration and a 4K Wide-T configuration. Customers can select the appropriate platform according to image characteristics, panel requirements, haze level, power consumption, and project environment.
All configurations use a DLED high-brightness backlight, support wide viewing angles, manual or automatic brightness adjustment, and landscape or portrait installation. The module is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone IP-rated outdoor display.
Product Features
- High-Brightness Options: Available in 1000, 1500, 2000, 2500, and 3000 nits configurations for different outdoor and high-ambient-light applications.
- 4K UHD Resolution: Both LU01 and LU02 platforms provide 3840 × 2160 4K UHD resolution.
- Standard and Wide-T Platforms: Available with 4K Standard and 4K Wide-T panel platforms for different image-performance requirements.
- Sunlight Readable: High-brightness DLED backlight improves display visibility in strong ambient-light and daylight environments.
- Manual or Automatic Dimming: Brightness can be adjusted from approximately 30% to 100% according to the selected control configuration.
- Wide Viewing Angle: Supports approximately +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
- Long Operating Lifetime: Designed with an MTBF of approximately 50,000 hours for commercial and industrial applications.
- Outdoor Aluminum Structure: The module uses a white aluminum structure suitable for customized outdoor display systems.
- Landscape and Portrait Installation: Supports horizontal or vertical installation according to the final enclosure and application design.
- Flexible System Integration: Suitable for commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects.
Configuration Options
| Model Number | Platform | Resolution | Brightness | Power Consumption |
Operating Temperature |
Overall Dimensions |
Picture |
|---|---|---|---|---|---|---|---|
| HYL-DM650-LU01-10 | LU01 4K Standard |
3840 × 2160 | 1000 nits | 390W | 0°C to 50°C | 1464.50 × 839.50 × 52.50 mm |
 |
| HYL-DM650-LU01-15 | 1500 nits | 450W | |||||
| HYL-DM650-LU01-20 | 2000 nits | 500W | |||||
| HYL-DM650-LU01-25 | 2500 nits | 620W | |||||
| HYL-DM650-LU01-30 | 3000 nits | 760W | |||||
| HYL-DM650-LU02-10 | LU02 4K Wide-T |
3840 × 2160 | 1000 nits | 245W | 0°C to 50°C | ||
| HYL-DM650-LU02-15 | 1500 nits | 305W | |||||
| HYL-DM650-LU02-20 | 2000 nits | 355W | |||||
| HYL-DM650-LU02-25 | 2500 nits | 435W | |||||
| HYL-DM650-LU02-30 | 3000 nits | 535W |
Technical Configuration
| Configuration Item | Series Details |
|---|---|
| Screen Size | 65 inch |
| Resolution | 3840 × 2160 4K UHD |
| Brightness Options | 1000, 1500, 2000, 2500, and 3000 nits |
| LCD Platforms | LU01 4K Standard / LC650EQC-SMA3; LU02 4K Wide-T / LD650EGY-SSA2 |
| Backlight Type | DLED high-brightness backlight |
| Refresh Rate | 60Hz |
| Dimming Mode | Manual or automatic brightness adjustment, approximately 30%–100% |
| Viewing Angle | +89°/-89° horizontal and +89°/-89° vertical typical |
| Active Area | 1428.48 × 803.52 mm |
| Pixel Pitch | 0.372 × 0.372 mm |
| Display Colors | 10-bit / 1.07 billion colors |
| Response Time | LU01: 8 ms typical; LU02: 9 ms typical |
| Contrast Ratio | LU01: 1300:1 typical; LU02: 1100:1 typical |
| Color Gamut | Approximately 67% NTSC for both platforms |
| Haze | LU01: 3%; LU02: 28% |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Power Consumption | LU01: 390W / 450W / 500W / 620W / 760W; LU02: 245W / 305W / 355W / 435W / 535W |
| Overall Dimensions | 1464.50 × 839.50 × 52.50 mm |
| Weight | 23.7 kg ±0.2 |
| Structure | White aluminum outdoor module structure suitable for landscape or portrait integration |
| Touch Panel / AD Board / Speaker | Not included as standard |
| IP Rating | None / None. The LCD module itself is not supplied with an IP rating. |
| Humidity | ≤90% |
| Warranty | 24 months |
| Application Areas | Commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects |
Platform Comparison
| Comparison Item | LU01 4K Standard |
LU02 4K Wide-T |
|---|---|---|
| Open Cell | LC650EQC-SMA3 | LD650EGY-SSA2 |
| Panel Surface Grade | 68°C Standard | 68°C Wide-T |
| Resolution | 3840 × 2160 | 3840 × 2160 |
| Brightness Options | 1000 / 1500 / 2000 / 2500 / 3000 nits | 1000 / 1500 / 2000 / 2500 / 3000 nits |
| Active Area | 1428.48 × 803.52 mm | 1428.48 × 803.52 mm |
| Pixel Pitch | 0.372 × 0.372 mm | 0.372 × 0.372 mm |
| Display Colors | 10-bit / 1.07 billion colors | 10-bit / 1.07 billion colors |
| Response Time | 8 ms typical | 9 ms typical |
| Contrast Ratio | 1300:1 typical | 1100:1 typical |
| Color Gamut | Approx. 67% NTSC | Approx. 67% NTSC |
| Haze | 3% | 28% |
| Power Range | 390W / 450W / 500W / 620W / 760W | 245W / 305W / 355W / 435W / 535W |
| Operating Temperature | 0°C to 50°C | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C | -20°C to 60°C |
Mechanical Drawing

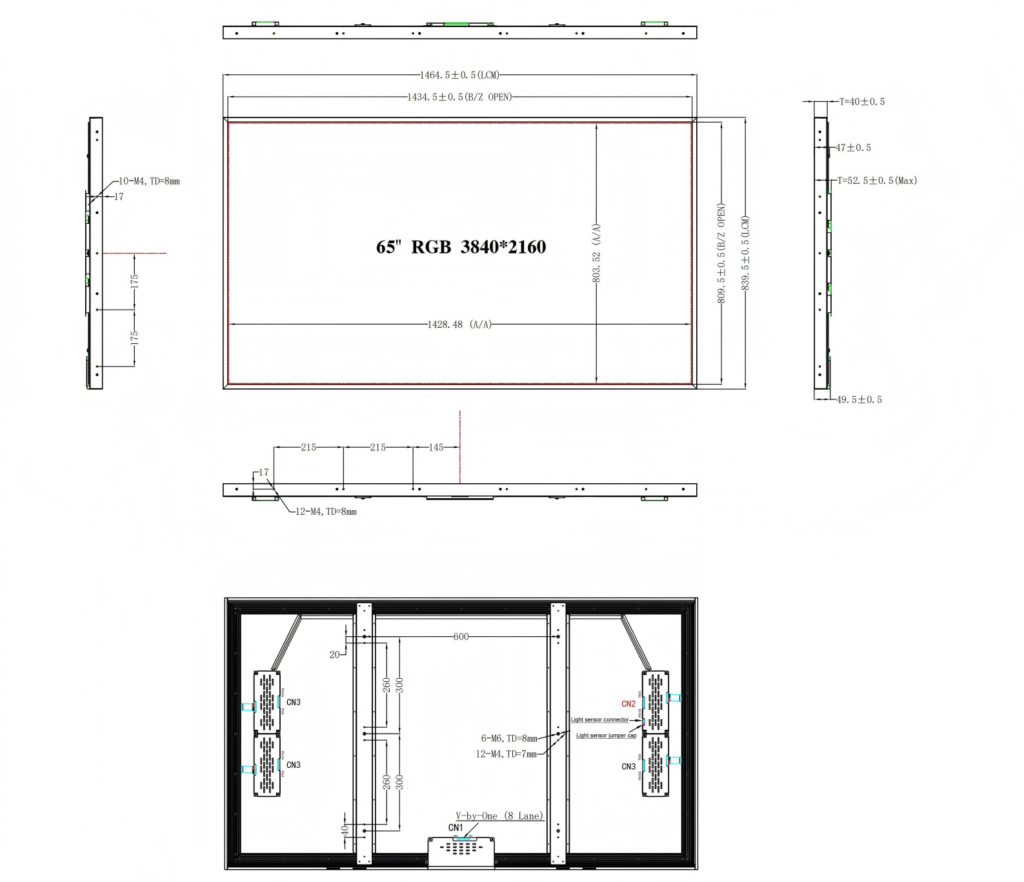

65-Inch Direct-Lit (DLED) Mechanical Drawing
The 65-inch LU01 and LU02 platforms share the same nominal overall module dimensions and use one common mechanical drawing type for this product page. Please confirm the final mechanical drawing before enclosure design, system integration, or mass production.
oduction.
