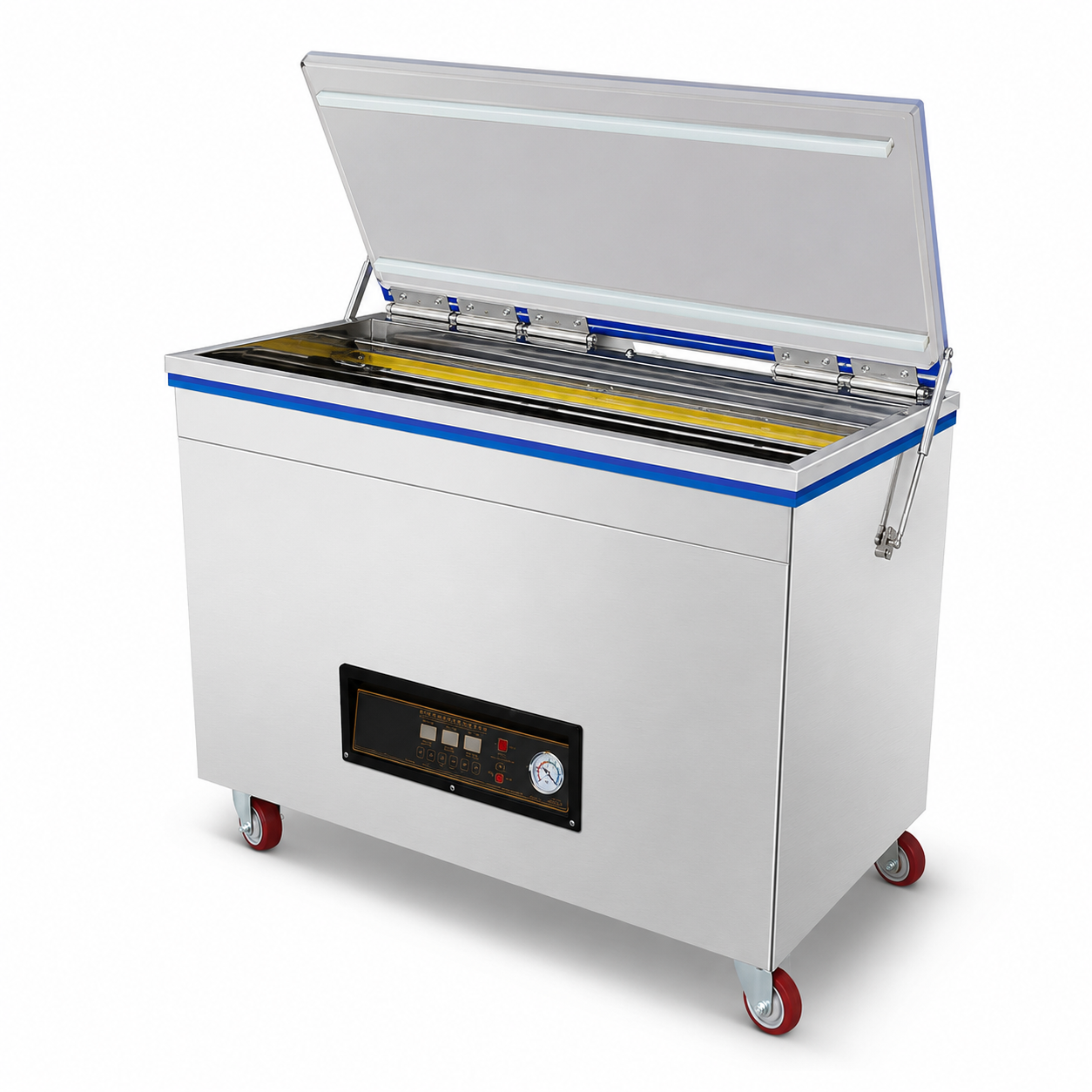

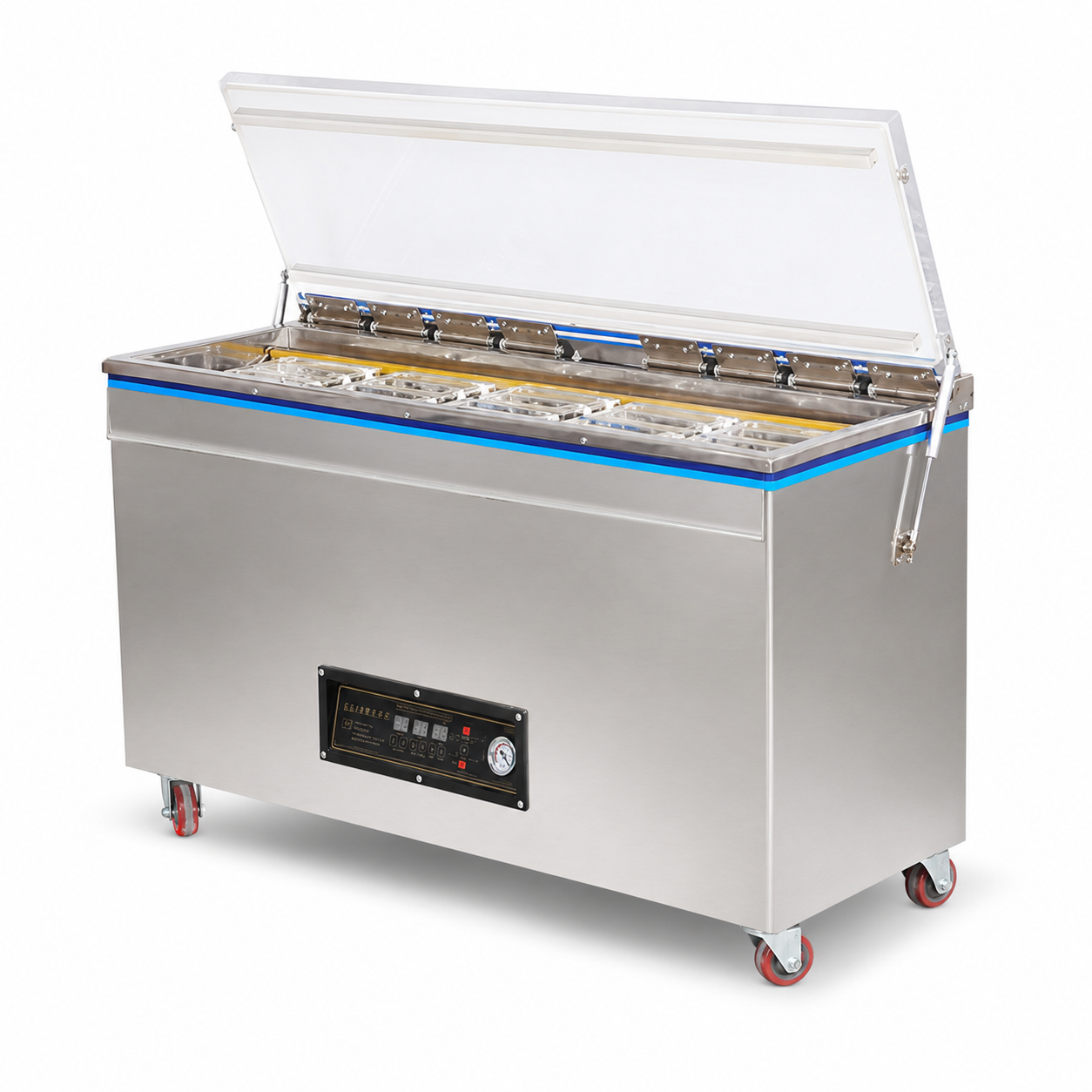

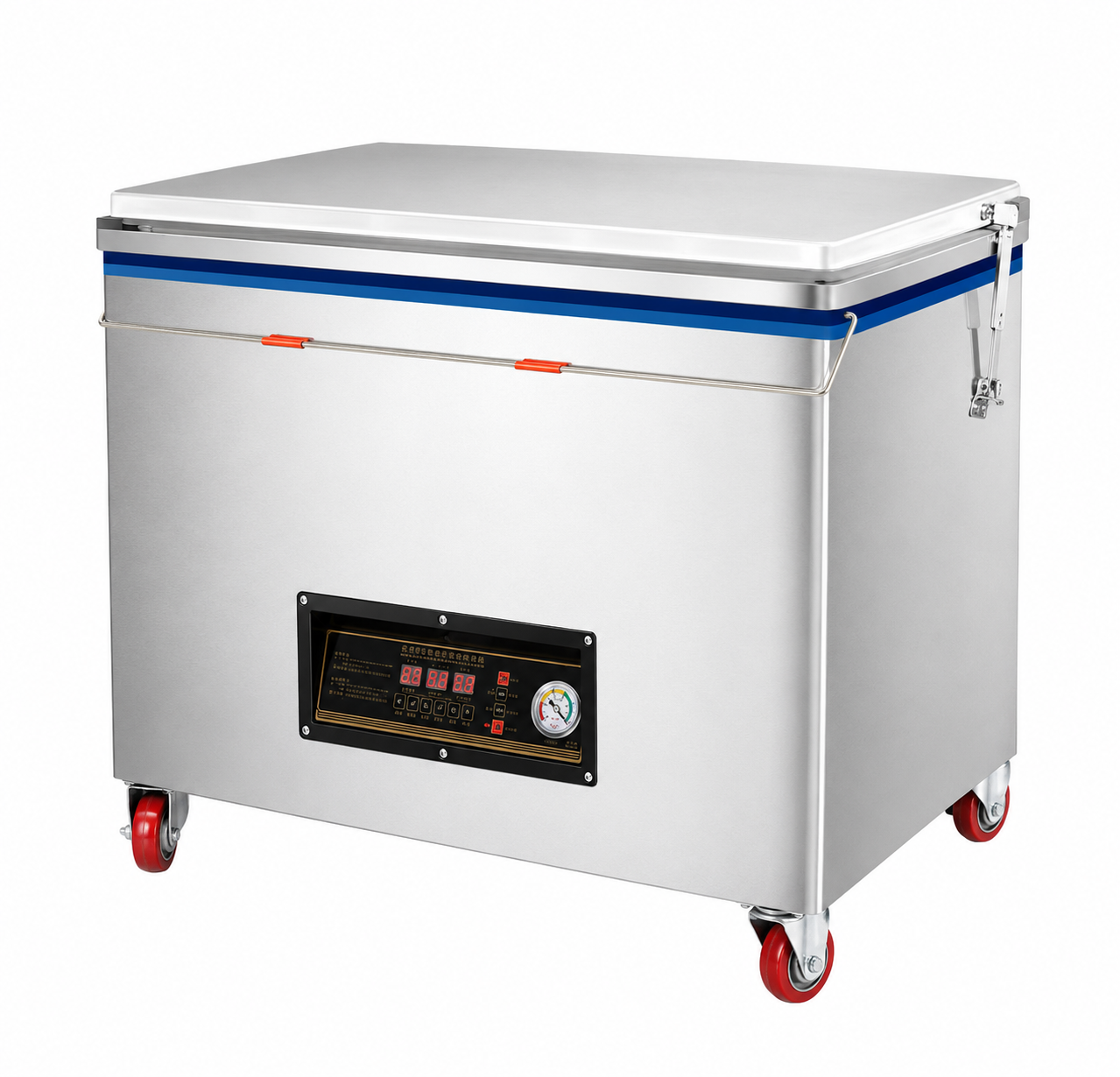

Commercial Deep-Chamber Vacuum Packaging Machine Series for Rice Bricks and Bulk Products

This commercial flat-lid deep-chamber vacuum packaging machine series is designed for rice bricks, tea bricks, meat blocks, thick food packs, elongated products, and other commercial products requiring a narrow and deep vacuum chamber. It is suitable for rice processors, agricultural-product packaging facilities, food factories, central kitchens, supermarkets, and other commercial food operations.

The series includes 660 mm, 820 mm, and 1050 mm double-sealing configurations. Its narrow 210 mm chamber width and 350 mm chamber height are designed to accommodate thick, compact, or elongated packages while reducing unnecessary chamber space. Single-pump and dual-pump configurations are available to match different packaging volumes and operating requirements.

These are internal-chamber vacuum packaging machines. The filled vacuum bag must be placed completely inside the chamber before the lid is closed and the vacuum cycle begins. Vacuum packaging helps reduce air exposure and supports freshness retention, flavor protection, compact package formation, and more organized refrigerated, frozen, or ambient storage.

Key Features

• Flat-lid deep-chamber design for rice bricks, tea bricks, meat blocks, thick food packs, and elongated products.
• Narrow 210 mm chamber width reduces unnecessary chamber space when packaging compact or elongated products.
• 350 mm actual internal chamber height for thick and block-shaped packages.
• Double sealing bars allow simultaneous sealing on both sides of the vacuum chamber.
• 8 mm widened sealing bars support stable and consistent package sealing.
• Microcomputer control panel with clear digital displays and straightforward operation.
• Independent adjustment of vacuum time, sealing time, and cooling time.
• Single-pump and dual-pump configurations are available according to the selected model.
• Industrial vacuum pumps provide efficient air evacuation for commercial packaging operations.
• Reinforced stainless steel vacuum chamber supports repeated commercial use.
• Heat-resistant silicone sealing strips support reliable chamber sealing.
• Flat transparent chamber lid allows convenient observation during the vacuum cycle.
• Hydraulic lid-assist mechanism supports smooth and balanced opening and closing.
• Integrated vacuum-pressure gauge allows convenient observation of the chamber vacuum level.
• Swivel casters make movement and positioning more convenient.
• Selected caster configurations include brakes for stable machine positioning.
• Optional date-printing function is available on selected configurations.
• Voltage, plug, branding, packaging, OEM, ODM, and private-label options can be customized according to project requirements.

Product images are representative images. Vacuum-pump configuration, control-panel details, appearance, and other components may vary according to the selected model and customized requirements. The chamber dimensions shown in the specification table are the actual internal dimensions of the flat-lid vacuum chamber and do not include any additional raised-lid height.
