Wall Mount Pre-Rinse Faucet (8 inch Centers)

This wall-mount high-pressure pre-rinse faucet series is designed for pot washing, dish pre-rinsing, and general kitchen cleaning in commercial kitchens, restaurants, hotel kitchens, and foodservice operations where a wall-mounted installation is preferred. It delivers a strong spray for efficient food residue removal while keeping the deck area clear.

The series includes two dual-hole dual-temperature models, both featuring an 8 inch (203 mm) center distance. The standard model provides essential high-pressure rinse functionality, while the selected model with a 12 inch swing faucet adds a dedicated water supply for sink filling and other general tasks alongside the high-pressure spray function.

The main body is constructed from brass casting with polished chrome plating, offering durability and a clean professional appearance suitable for demanding commercial environments. The riser tube uses a quick-install design for simple and efficient assembly. A wall bracket with a length of 150 mm (±5%) and a working height of 980 mm (±5%) are included to support stable installation and comfortable daily operation.

Each unit is equipped with a check valve at the water inlet to prevent backflow and protect the water supply system. The water inlet connection is a standard 1/2 inch male thread. Cutout hole diameter is 25 mm for both models. The high-pressure spray nozzle provides a concentrated water stream for effective cleaning.

产品特点

Wall-mount design saves deck space in tight kitchen areas.
Dual-hole dual-temperature configuration with 8 inch (203 mm) center distance.
Selected model includes a 12 inch swing faucet for additional sink filling.
Brass casting body with polished chrome plating for durability and corrosion resistance.
Quick-install riser tube design for fast and simple setup.
150 mm (±5%) wall bracket and 980 mm (±5%) working height.
Check valve at water inlet prevents backflow.
Standard 1/2 inch male thread water inlet connection.
High-pressure spray nozzle for powerful pre-rinsing and cleaning.

应用领域

Suitable for commercial kitchens, restaurants, hotel kitchens, central kitchens, catering facilities, and other foodservice areas that require durable wall-mounted high-pressure pre-rinse faucets for daily pot washing and dish pre-cleaning tasks.

型号	产品名称	Temperature Type	Hole Configuration	Additional Swing Faucet	产品尺寸	产品图像

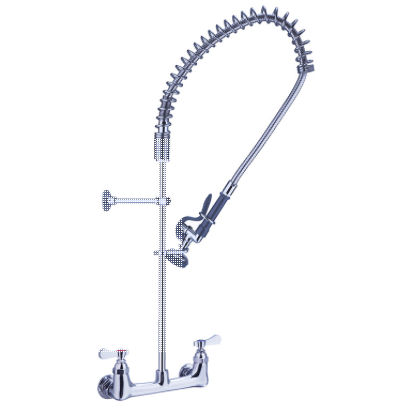

HYL-CK-FT-HS09	Wall-Mount Dual-Hole Dual-Temperature Pre-Rinse Faucet	Dual Temperature	Dual Hole, 8 inch (203 mm) center distance, 25 mm cutout	None	1212 × 400 mm (H × Projection), Cutout 25 mm

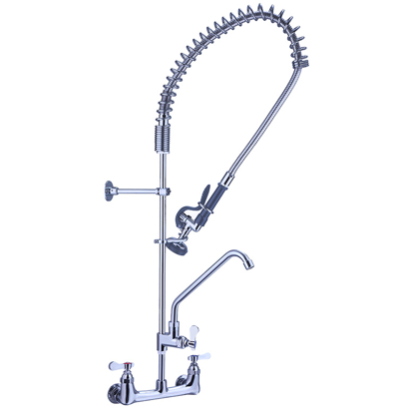

HYL-CK-FT-HS10	Wall-Mount Dual-Hole Dual-Temperature Pre-Rinse Faucet with Swing Faucet	Dual Temperature	Dual Hole, 8 inch (203 mm) center distance, 25 mm cutout	12 inch swing faucet included	1312 × 400 mm (H × Projection), Cutout 25 mm

技术配置

配置项目	系列详情
型号选项	Standard model and model with 12 inch swing faucet
主要材料	Brass casting body with polished chrome plating
安装类型	Wall-mount, dual hole installation with 8 inch (203 mm) center distance
Working Height	980 mm ±5%
Wall Bracket	150 mm ±5% length
Backflow Prevention	Check valve at water inlet
Water Inlet Connection	1/2 inch male thread
Swing Faucet Option	Selected model includes 12 inch swing faucet for sink filling
Cutout Diameter	25 mm
制造公差	Wall bracket length ±5%, working height ±5%
