Commercial Spiral Dough Mixer Series (8–100 kg Dough)

This commercial spiral dough mixer series is designed for dough mixing, flour preparation, bakery production, pizza dough processing, pastry preparation, steamed bun dough mixing, noodle dough preparation, and other commercial bakery or foodservice applications. It is suitable for bakeries, restaurants, hotels, central kitchens, canteens, catering kitchens, food factories, pastry shops, pizza shops, and commercial food processing areas.

The series includes high-end, mid-range, and economy spiral dough mixer models with dough capacity options from 8 kg to 100 kg. Different configurations are available for small-batch dough preparation, medium-volume bakery production, and larger commercial mixing requirements.

Selected models use stainless steel mixing bowls, spiral hooks, and center rods for hygienic dough contact and durable daily operation. Mid-range and economy models are designed with two timer settings for manual or automatic cycle operation, while selected models include protective safety guards with emergency stop switches for safer kitchen use.

High-end models are available with single-motor and double-motor configurations. Selected models include different hook speed and bowl speed settings to support dough mixing consistency according to production requirements. Power configurations range from 0.65 kW to 16.5 kW, depending on model capacity and machine grade.

产品特点

Designed for commercial dough mixing, flour preparation, bakery production, and food processing applications.
Available in high-end, mid-range, and economy spiral dough mixer configurations.
Dough capacity options range from 8 kg to 100 kg according to model configuration.
Selected models use stainless steel mixing bowl, spiral hook, and center rod for hygienic dough contact.
Selected models support manual or automatic cycle operation through two timer settings.
Protective safety guard with emergency stop switch is available on selected models.
Single-speed, dual-speed, and variable-frequency model options are available.
Selected high-end models include single-motor or double-motor drive configuration.
Multiple voltage and power configurations support different commercial kitchen installation requirements.

应用领域

Suitable for bakeries, pastry shops, pizza shops, restaurants, hotel kitchens, central kitchens, school canteens, factory dining halls, catering kitchens, food processing plants, noodle production areas, and other commercial foodservice locations that require reliable dough mixing equipment.

型号	产品名称	Dough Capacity	电源配置	主要规格	产品尺寸
High-End Dough Mixer Models (25–50 kg Dough Capacity)

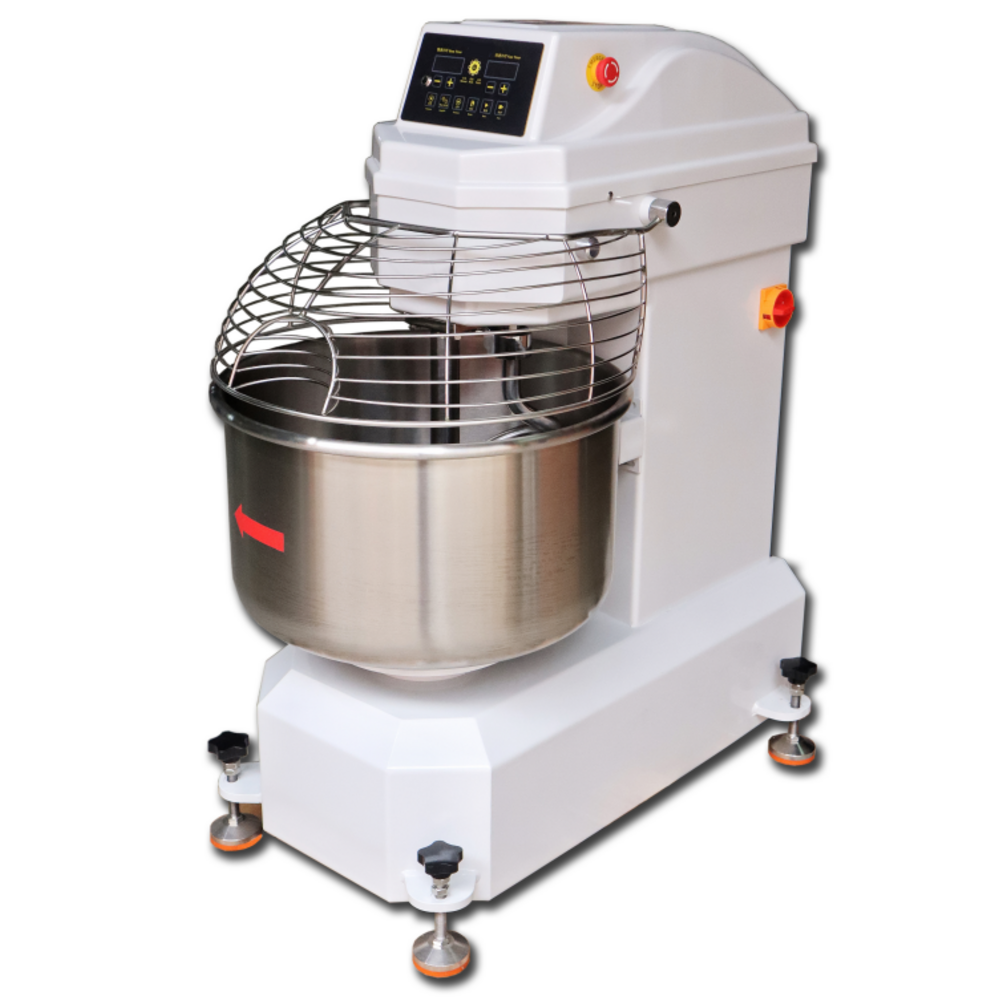

HYL-CK-BK-HM01	High-End Spiral Dough Mixer	25 kg dough capacity; 12.5 kg flour capacity	380V / 50Hz, 2.2 kW input power	Bowl size Φ442 × 298 mm; hook speed 136 / 295 rpm; bowl speed 14 / 28 rpm; 260 kg machine weight; single motor	500 × 920 × 1230 mm
HYL-CK-BK-HM02	High-End Spiral Dough Mixer	50 kg dough capacity; 25 kg flour capacity	380V / 50Hz, 4.0 kW input power	Bowl size Φ546 × 350 mm; hook speed 135 / 289 rpm; bowl speed 20 / 20 rpm; 290 kg machine weight; double motor	600 × 1000 × 1380 mm
Mid-Range Dough Mixer Models (8–20 kg Dough Capacity)

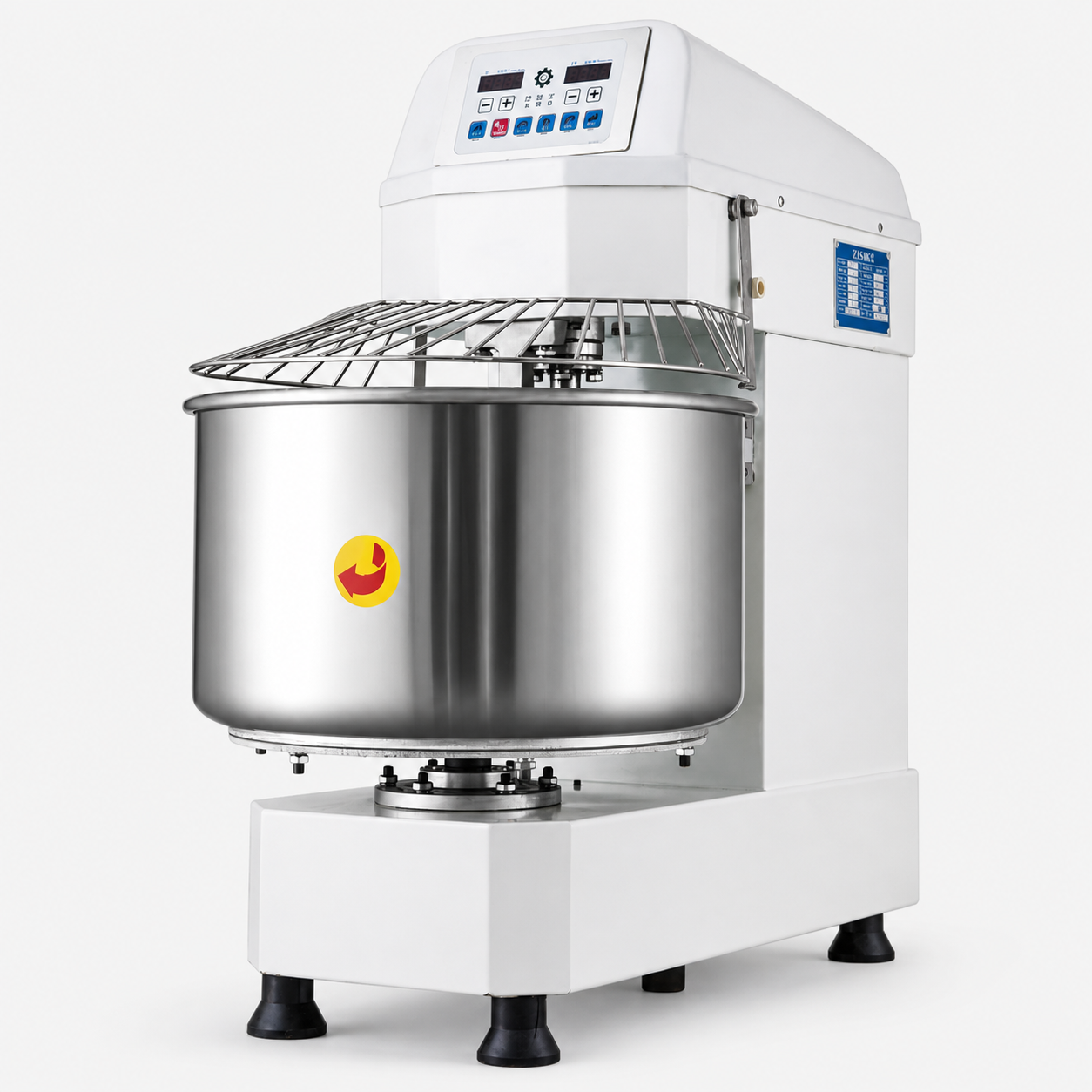

HYL-CK-BK-HM03	Mid-Range Spiral Dough Mixer	8 kg dough capacity	380V / 50Hz, 0.65 / 0.85 kW power rating, 1.6 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	680 × 400 × 770 mm
HYL-CK-BK-HM04	Mid-Range Spiral Dough Mixer	12 kg dough capacity	380V / 50Hz, 0.85 / 1.1 kW power rating, 1.9 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	430 × 770 × 810 mm
HYL-CK-BK-HM05	Mid-Range Spiral Dough Mixer	16 kg dough capacity	380V / 50Hz, 1.1 / 2.2 kW power rating, 2.7 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	850 × 470 × 940 mm

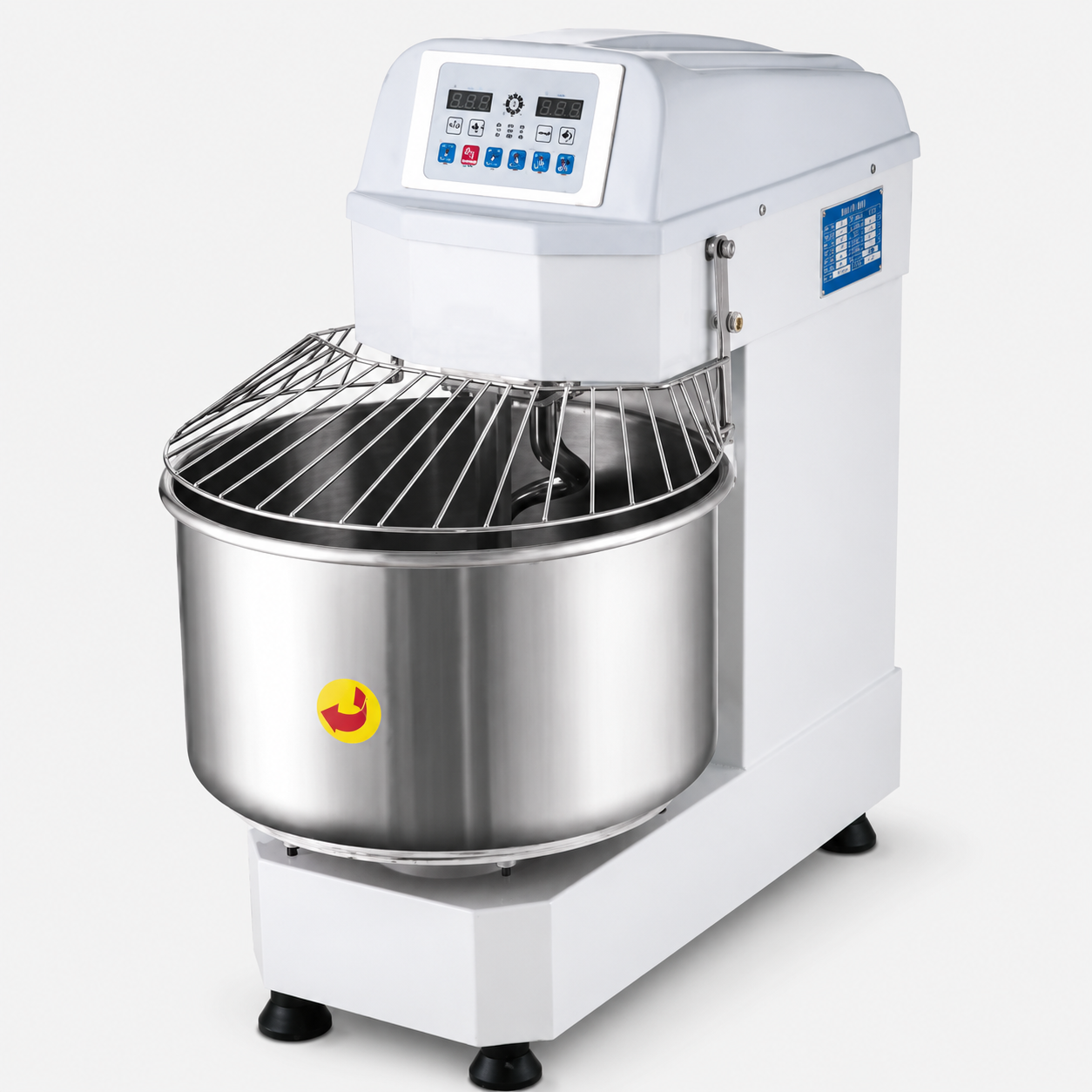

HYL-CK-BK-HM06	Mid-Range Spiral Dough Mixer	20 kg dough capacity	220V / 380V, 50Hz, 1.1 / 2.2 kW power rating, 2.2 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	900 × 520 × 950 mm
Economy Dough Mixer Models (8–100 kg Dough Capacity)

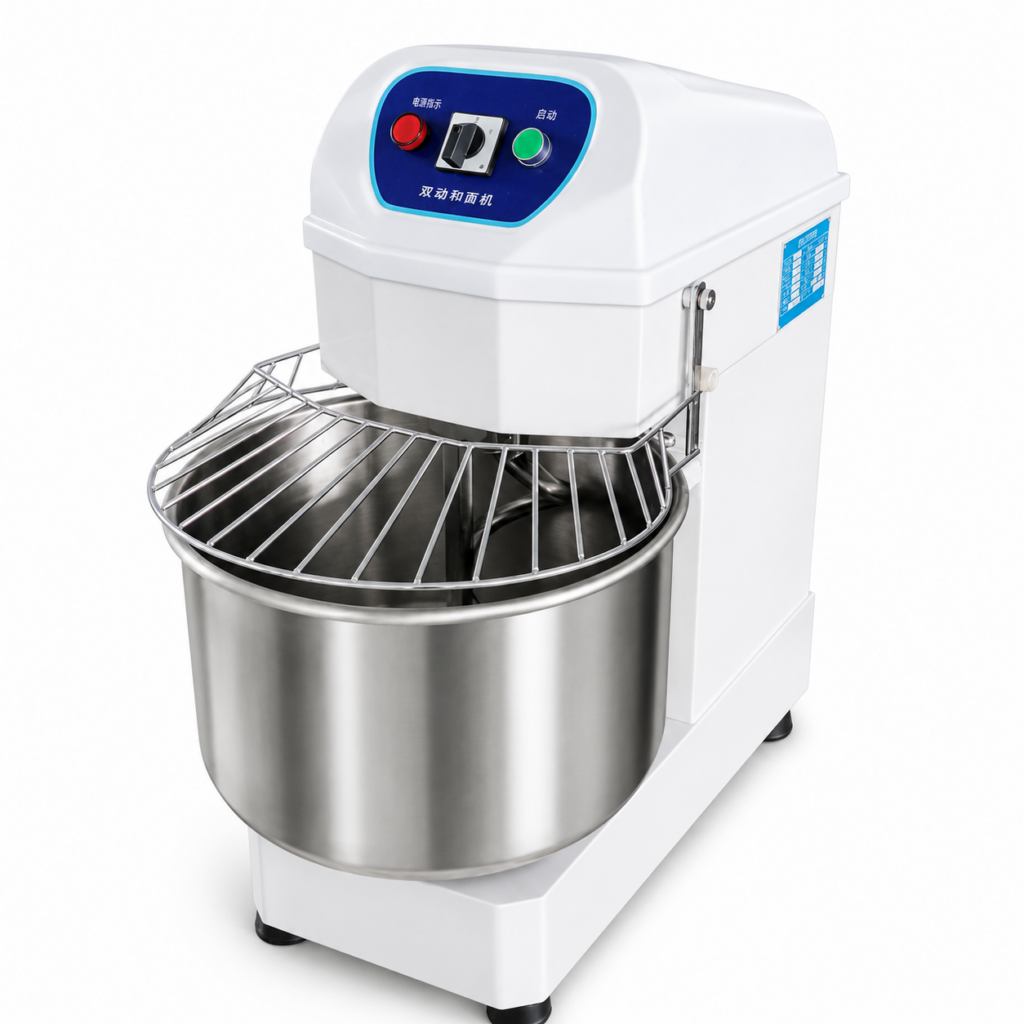

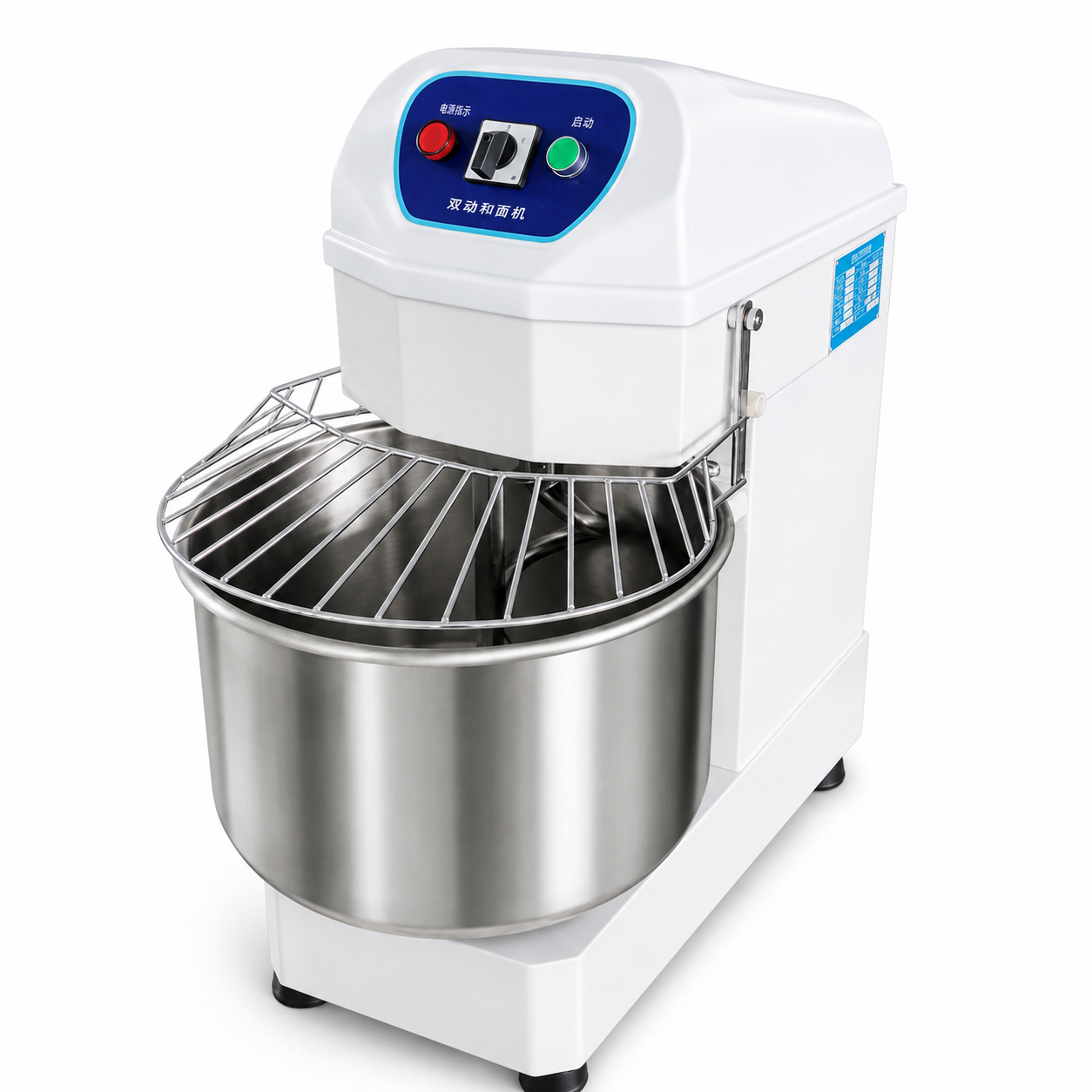

HYL-CK-BK-HM07	Economy Spiral Dough Mixer	8 kg dough capacity	220V / 50Hz, 0.9 kW power rating, 1.6 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 185 rpm	400 × 700 × 740 mm
HYL-CK-BK-HM08	Economy Spiral Dough Mixer	12 kg dough capacity	380V / 50Hz, 0.8 / 1.5 kW power rating, 1.9 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	445 × 800 × 790 mm

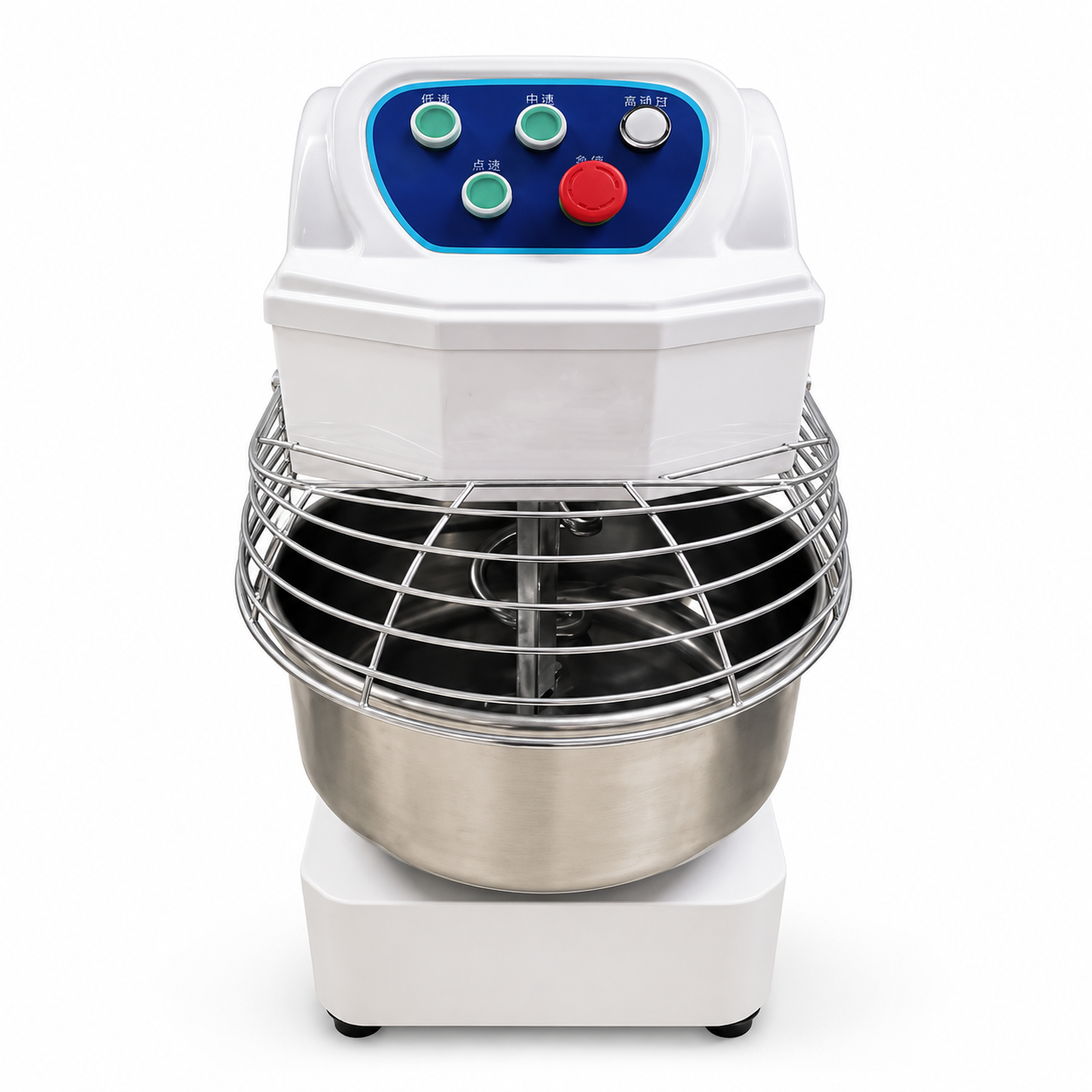

HYL-CK-BK-HM09	Economy Variable-Frequency Spiral Dough Mixer	8 kg dough capacity	220V / 50Hz, 1.1 kW power rating	Variable-frequency configuration; manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	To be confirmed according to final order data

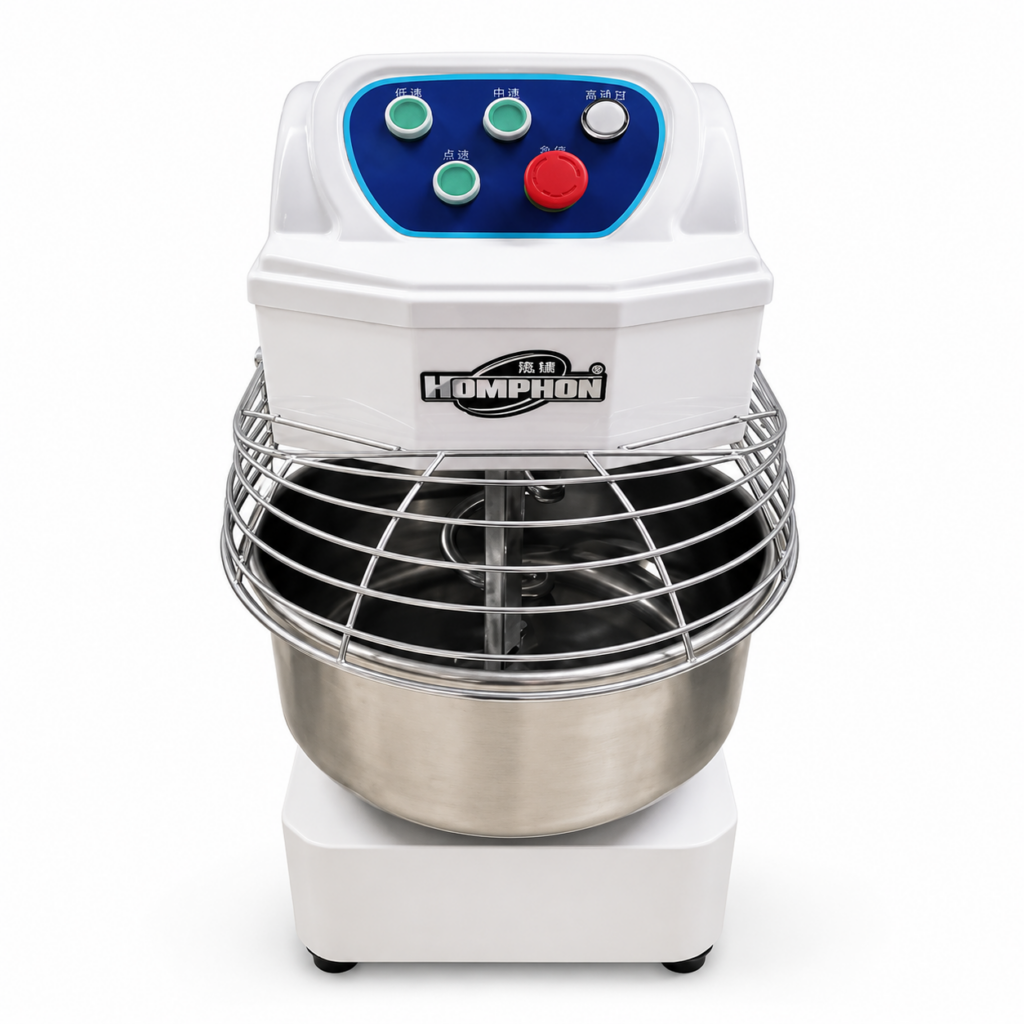

HYL-CK-BK-HM10	Economy Variable-Frequency Spiral Dough Mixer	8 kg dough capacity	220V / 50Hz, 1.1 kW power rating	Variable-frequency configuration; manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 115 / 230 rpm	To be confirmed according to final order data
HYL-CK-BK-HM11	Economy Spiral Dough Mixer	16 kg dough capacity	220V / 50Hz, 1.1 / 2.2 kW power rating, 2.7 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 101 / 102 rpm	900 × 500 × 960 mm
HYL-CK-BK-HM12	Economy Spiral Dough Mixer	20 kg dough capacity	380V / 50Hz, 1.5 / 2.4 kW power rating, 2.2 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 107 / 210 rpm	1100 × 530 × 980 mm

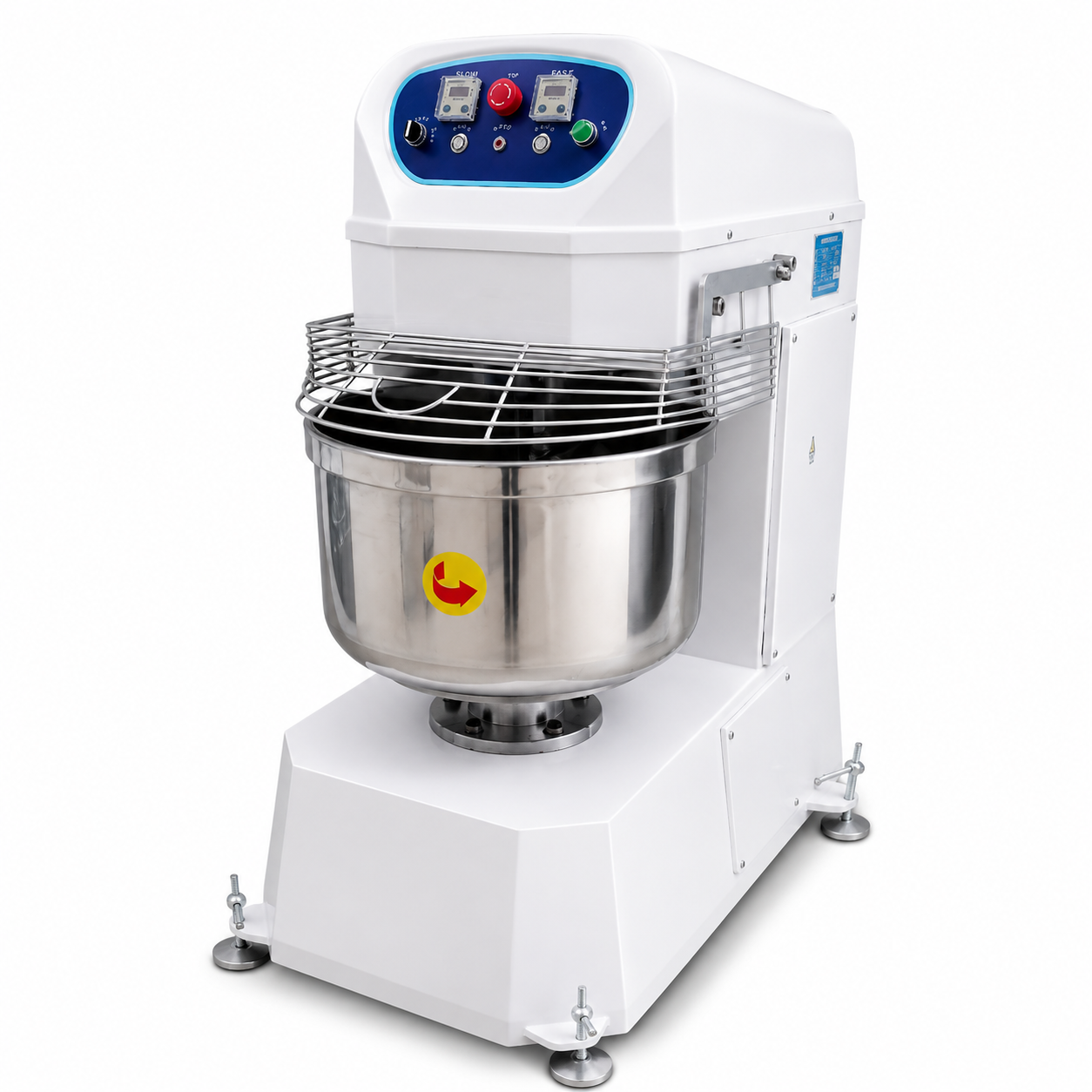

HYL-CK-BK-HM13	Economy Spiral Dough Mixer	25 kg dough capacity	380V / 50Hz, 1.5 / 2.4 kW power rating, 3.9 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 107 / 210 rpm	1150 × 750 × 1325 mm

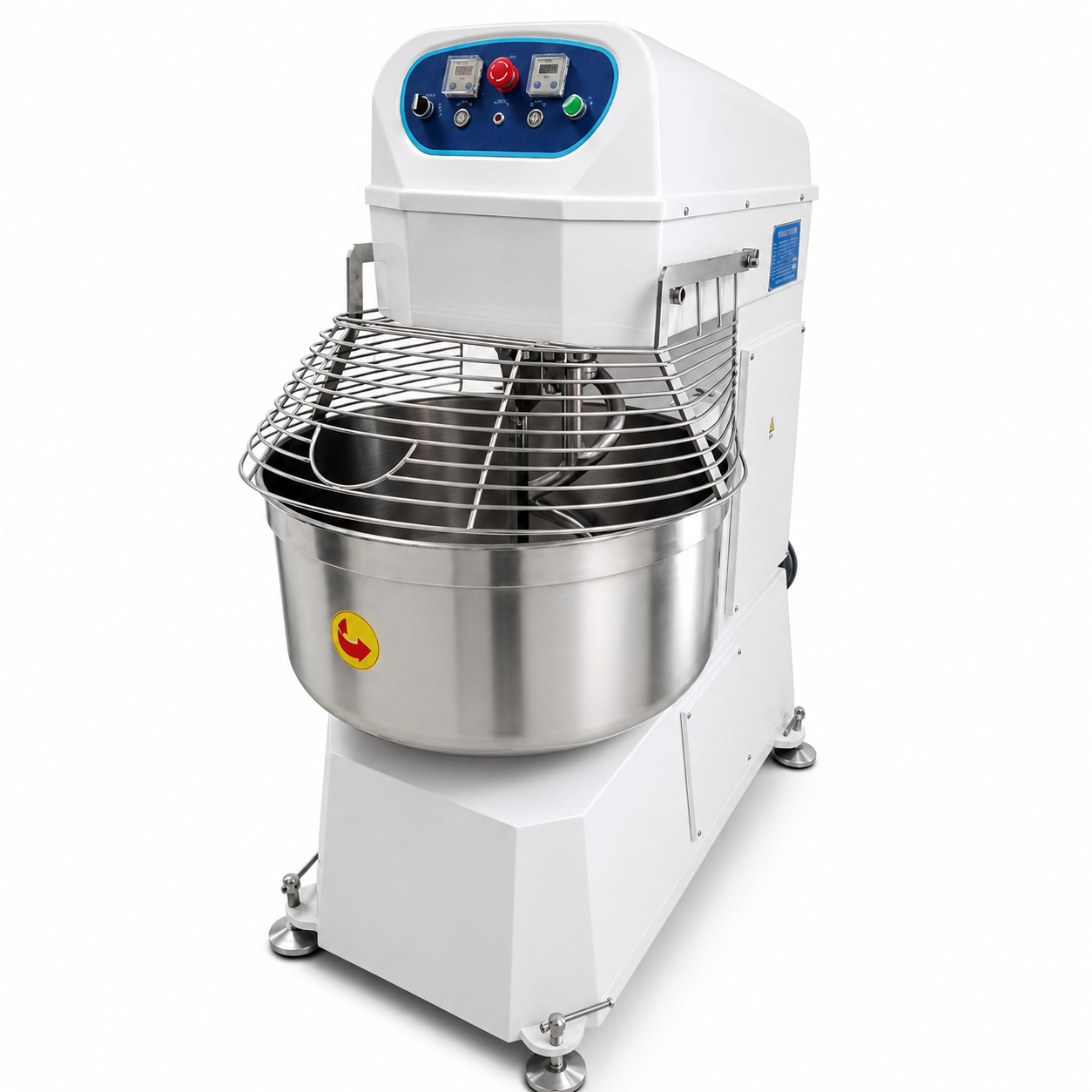

HYL-CK-BK-HM14	Economy Spiral Dough Mixer	50 kg dough capacity	380V / 50Hz, 2.8 / 5.6 kW power rating, 7.4 kW input power	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 107 / 210 rpm	1125 × 750 × 1430 mm
HYL-CK-BK-HM15	Economy Spiral Dough Mixer	75 kg dough capacity	380V / 50Hz, 13 kW power rating	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 107 / 210 rpm	970 × 1400 × 1700 mm
HYL-CK-BK-HM16	Economy Spiral Dough Mixer	100 kg dough capacity	380V / 50Hz, 16.5 kW power rating	Manual or automatic cycle operation; stainless steel bowl, spiral hook, and center rod; emergency stop switch; mixing speed 107 / 210 rpm	970 × 1400 × 1700 mm

技术配置

配置项目	系列详情
设备应用	Dough mixing, flour preparation, bakery production, pizza dough processing, pastry preparation, steamed bun dough mixing, and noodle dough preparation
机器等级选项	High-end, mid-range, and economy spiral dough mixer models are available
Dough Capacity Range	8 kg to 100 kg dough capacity, depending on model configuration
电源选项	220V / 50Hz and 380V / 50Hz configurations are available, depending on model selection
Power Rating Range	0.65 kW to 16.5 kW power options, depending on model capacity and drive configuration
Main Contact Parts	Selected models use stainless steel mixing bowl, spiral hook, and center rod for dough contact areas
Control Operation	Selected models support manual or automatic cycle operation through two timer settings
Safety Configuration	Selected models include protective safety guard and emergency stop switch for safer operation
驱动器配置	Single-motor, double-motor, dual-speed, and variable-frequency configurations are available according to model selection
