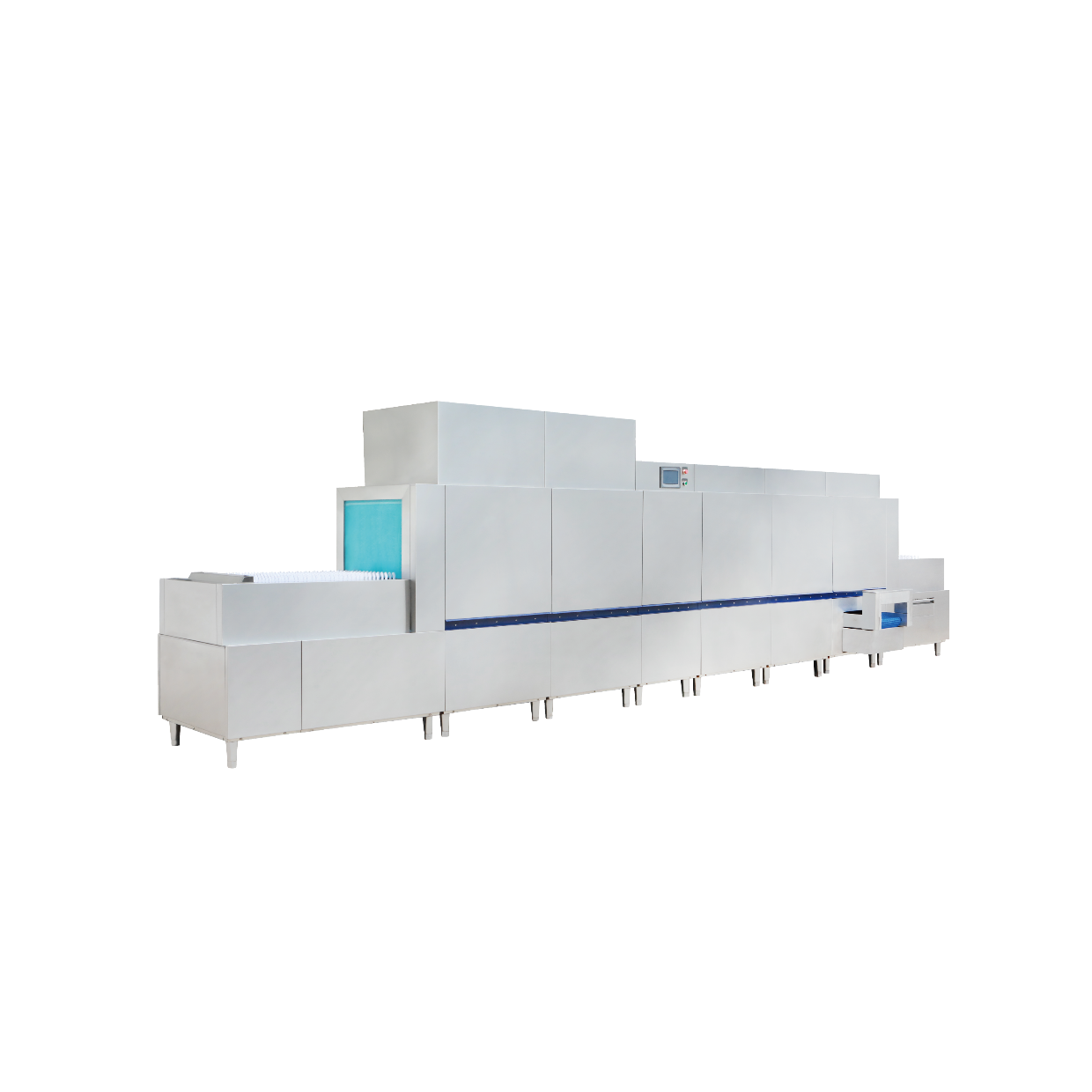

飞行式洗碗机 10000 系列（42-90 千瓦）

This flight-type dishwasher series represents the highest-capacity continuous warewashing solution, delivering up to 10000 dishes per hour for the largest hotel banquet kitchens, central kitchens, institutional canteens, and industrial catering facilities. The series features a robust three-stage main wash, dual rinse, and two-stage drying configuration that ensures thorough cleaning and fast drying even under extreme throughput demands.

The series includes two models to suit different site energy conditions. The standard model operates with ambient-temperature inlet water and a rated heating power of 90 kW, while the energy-saving model accepts pre-heated inlet water at 50°C to 60°C, reducing the heating demand to 42 kW. Both models maintain a water consumption of 450 L per hour, a main wash temperature of 65°C, and a final rinse temperature of 85°C. The extended 8000 mm flight-type conveyor with multiple wash and drying zones allows truly continuous loading of mixed ware types without interruption.

All primary structure components are manufactured from grade 304 stainless steel for corrosion resistance and hygiene in demanding wet environments. Water supply uses a G3/4 inch inlet, and drainage uses a G1-1/2 inch drain outlet. The multi-zone design helps deliver consistently clean and dry results at the highest throughput rates, making these machines the flagship solution for facilities that cannot compromise on warewashing capacity or drying performance.

产品特点

• Designed for the ultimate high-capacity continuous warewashing with an extended multi-zone flight-type conveyor.
• 每小时最多可清洗 10000 个碗碟。
• Three main wash zones, dual rinse, and two drying zones for thorough cleaning and fast drying.
• Standard model accepts ambient inlet water at 90 kW; energy-saving model accepts 50–60°C pre-heated water at 42 kW.
• 每小时耗水 450 升。
• 主洗温度为 65°C，最后漂洗温度为 85°C。
• 304 级不锈钢结构，经久耐用。
• G3/4 英寸进水口和 G1-1/2 英寸排水口。
• 380 伏电源，适用于所有型号。

应用领域

Suitable for the largest hotel banquet kitchens, central kitchens, institutional canteens, industrial catering facilities, and other maximum-capacity foodservice environments that require the highest-throughput continuous flight-type dishwashing with advanced drying performance.
