燃气开放式燃烧器系列（14-42 千瓦）
Gas Open Burner Range Series (14–42 kW) - 图片 2
Gas Open Burner Range Series (14–42 kW) - 图片 3

燃气开放式燃烧器系列（14-42 千瓦）

This gas open burner range series includes two-burner, four-burner, and six-burner models with single-ring and double-ring burner options. Heat load ranges from 14 kW to 42 kW. The series features Wenhua burners, thermocouple flame failure protection, and 304-grade stainless steel panels for restaurants, hotels, canteens, central kitchens, and commercial foodservice areas.

    申请报价

    请输入您的电子邮件地址，我们将尽快给您回复。

    分类： 品牌：

    This gas open burner range series is designed for commercial boiling, pan cooking, sauce heating, soup preparation, and general kitchen cooking applications. It is suitable for restaurants, hotel kitchens, canteens, central kitchens, catering kitchens, school kitchens, factory dining halls, and other commercial foodservice environments.

    The series includes two-burner, four-burner, and six-burner configurations, with single-ring and double-ring burner options. Heat load ranges from 14 kW to 42 kW, allowing customers to choose the right model according to cooking volume, kitchen layout, and daily operation requirements.

    Each model is equipped with Wenhua burners and thermocouple flame failure protection to improve daily gas operation safety. The compact open burner structure is suitable for multiple pots and pans, making it practical for continuous commercial kitchen use.

    The countertop is made from 1.5 mm thick 304-grade stainless steel, while the front panel, side panels, and back panel are made from 1.0 mm thick 304-grade stainless steel. This structure supports hygienic operation, easy cleaning, and durable commercial kitchen use.

    产品特点

    • Designed for commercial boiling, pan cooking, soup preparation, sauce heating, and daily kitchen cooking.
    • Available in two-burner, four-burner, and six-burner configurations.
    • Single-ring and double-ring burner options are available for different cooking needs.
    • 14 kW to 42 kW heat load range for different kitchen output requirements.
    • Wenhua burner configuration supports stable commercial cooking performance.
    • Thermocouple flame failure protection helps improve gas operation safety.
    • 304-grade stainless steel panels support hygienic and durable daily operation.

    应用领域

    Suitable for restaurants, hotel kitchens, canteens, central kitchens, catering kitchens, school kitchens, factory dining halls, food courts, and other commercial foodservice areas that require reliable open burner cooking equipment.

    型号 产品名称 热负荷 Burner Configuration Safety Configuration 产品尺寸 产品图像

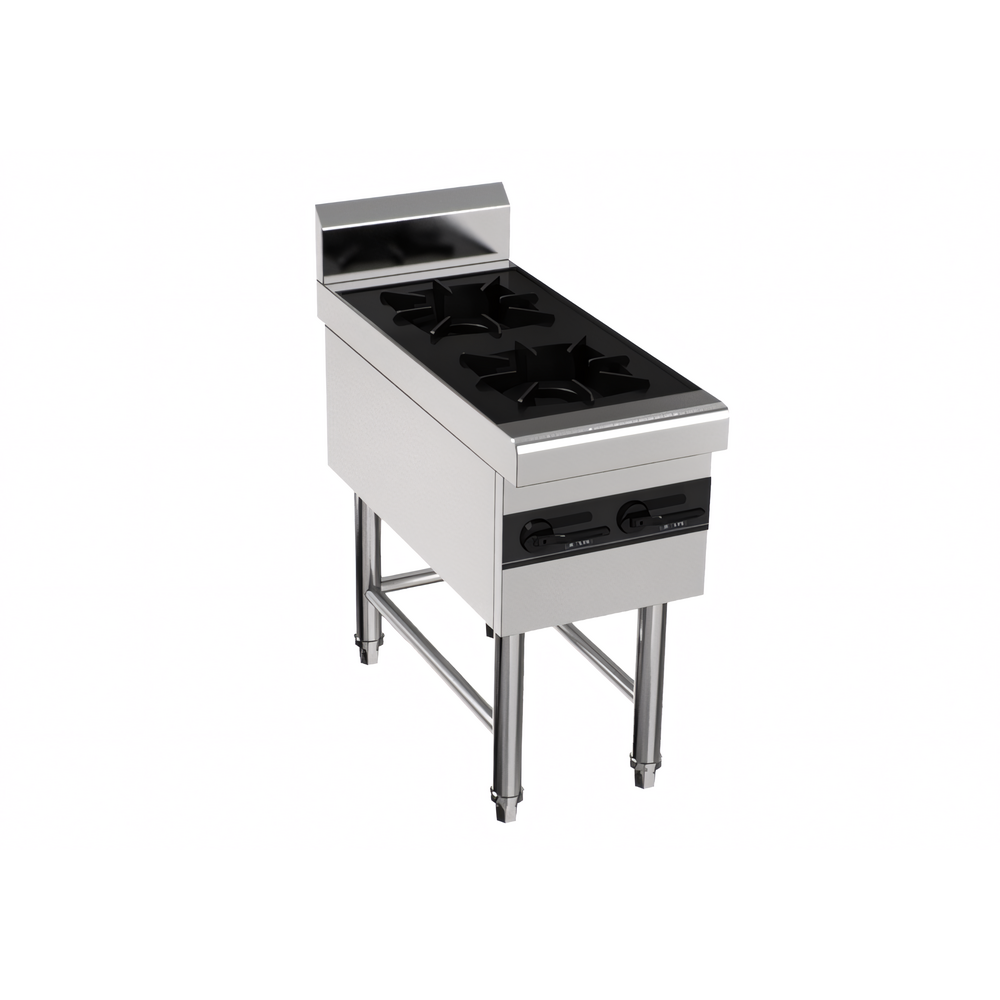

    HYL-CK-CHR-PT01 Two-Burner Double-Ring Gas Open Burner Range 7 kW × 2 = 14 kW 7-inch Wenhua burner × 2 Thermocouple flame failure protection 400 × 900 × 810 mm HYL-CK-CHR-PT01

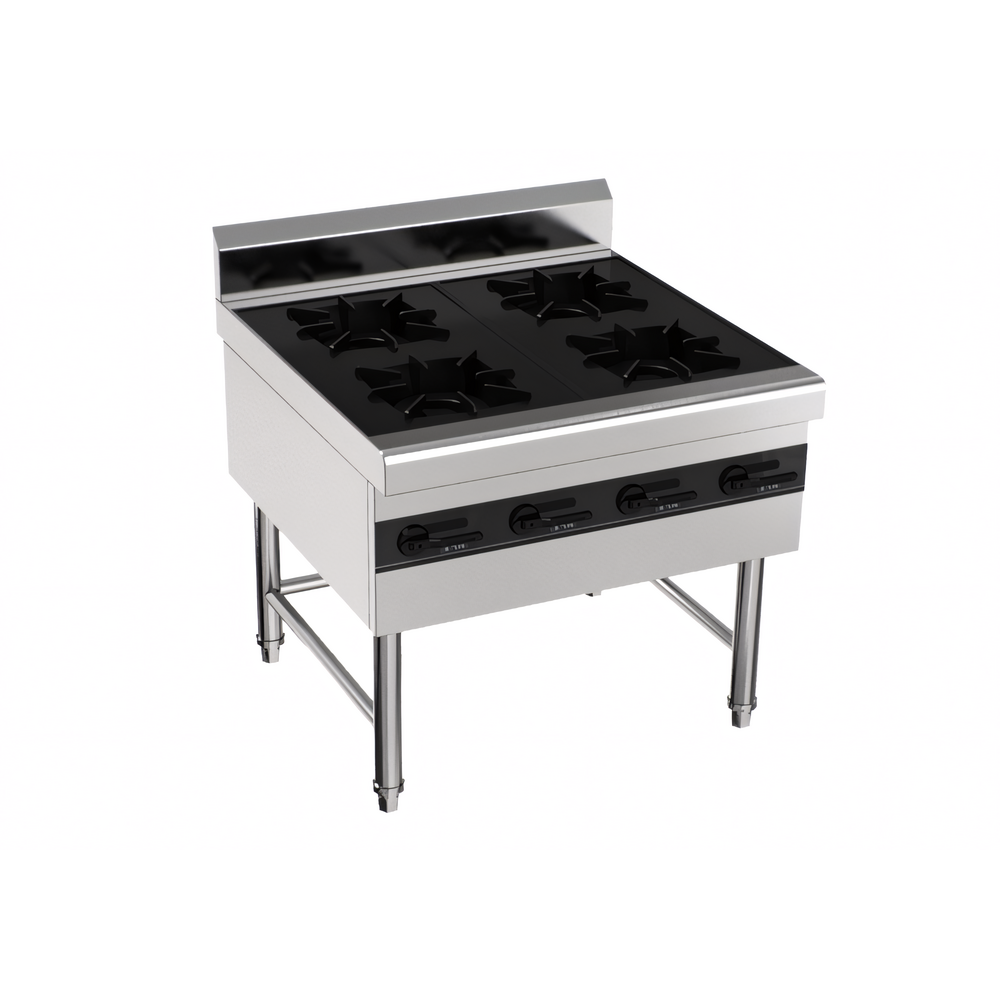

    HYL-CK-CHR-PT02 Four-Burner Single-Ring Gas Open Burner Range 6 kW × 4 = 24 kW 6-inch Wenhua burner × 4 Thermocouple flame failure protection 800 × 760 × 810 mm HYL-CK-CHR-PT02
    HYL-CK-CHR-PT03 Four-Burner Double-Ring Gas Open Burner Range 7 kW × 4 = 28 kW 7-inch Wenhua burner × 4 Thermocouple flame failure protection 900 × 900 × 810 mm HYL-CK-CHR-PT03
    HYL-CK-CHR-PT04 Six-Burner Single-Ring Gas Open Burner Range 6 kW × 6 = 36 kW 6-inch Wenhua burner × 6 Thermocouple flame failure protection 900 × 760 × 810 mm HYL-CK-CHR-PT04

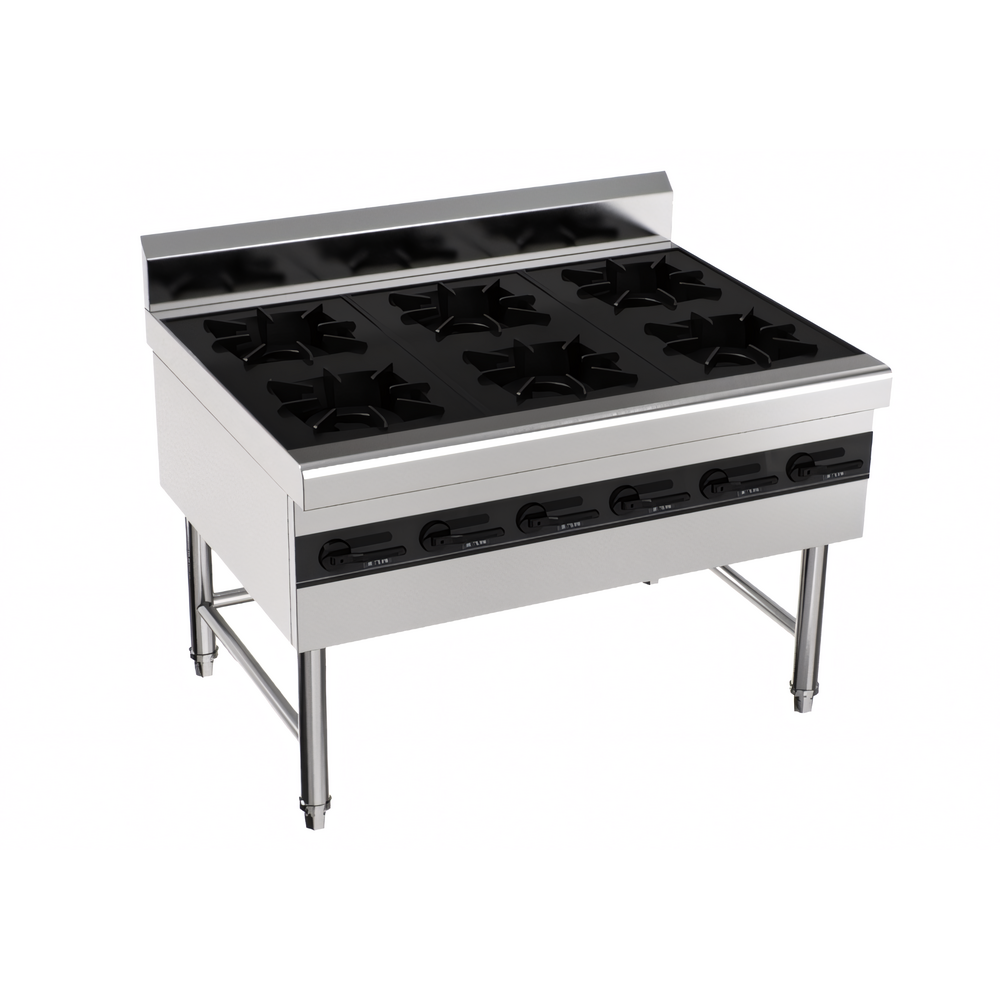

    HYL-CK-CHR-PT05 Six-Burner Double-Ring Gas Open Burner Range 7 kW × 6 = 42 kW 7-inch Wenhua burner × 6 Thermocouple flame failure protection 1200 × 900 × 810 mm HYL-CK-CHR-PT05

    技术配置

    配置项目 系列详情
    烹饪应用 Boiling, pan cooking, soup preparation, sauce heating, and general commercial kitchen cooking
    Burner Options 6-inch Wenhua burner and 7-inch Wenhua burner options are available depending on model configuration
    Safety Protection Thermocouple flame failure protection
    主要材料 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front panel, side panels, and back panel
