Product Overview
The 75-Inch Outdoor High-Brightness LCD Module Series is designed for professional outdoor display integration projects requiring strong sunlight readability, flexible brightness selection, stable operation, and reliable system integration. The series is available in 1000, 1500, 2000, 2500, and 3000 nits configurations.
Two 4K Wide-T display platforms are available: LU01 with a 68°C surface-grade panel and LU02 with an 80°C surface-grade panel. Customers can select the appropriate platform according to operating-temperature requirements, image characteristics, color performance, haze, and power consumption.
All configurations use a DLED high-brightness backlight, support wide viewing angles, manual or automatic brightness adjustment, and landscape or portrait installation. The module is intended for integration into a properly designed display enclosure and is not supplied as a complete standalone IP-rated outdoor display.
Product Features
- High-Brightness Options: Available in 1000, 1500, 2000, 2500, and 3000 nits configurations for different outdoor and high-ambient-light applications.
- 4K UHD Resolution: Both LU01 and LU02 platforms provide 3840 × 2160 4K UHD resolution.
- Wide-Temperature Platforms: LU01 supports 0°C to 50°C operation, while LU02 supports -30°C to 80°C operation according to the selected panel platform.
- Sunlight Readable: High-brightness DLED backlight improves display visibility in strong ambient-light and daylight environments.
- Manual or Automatic Dimming: Brightness can be adjusted from approximately 30% to 100% according to the selected control configuration.
- Wide Viewing Angle: Supports approximately +89°/-89° horizontal and +89°/-89° vertical viewing angles under typical conditions.
- Long Operating Lifetime: Designed with an MTBF of approximately 50,000 hours for commercial and industrial applications.

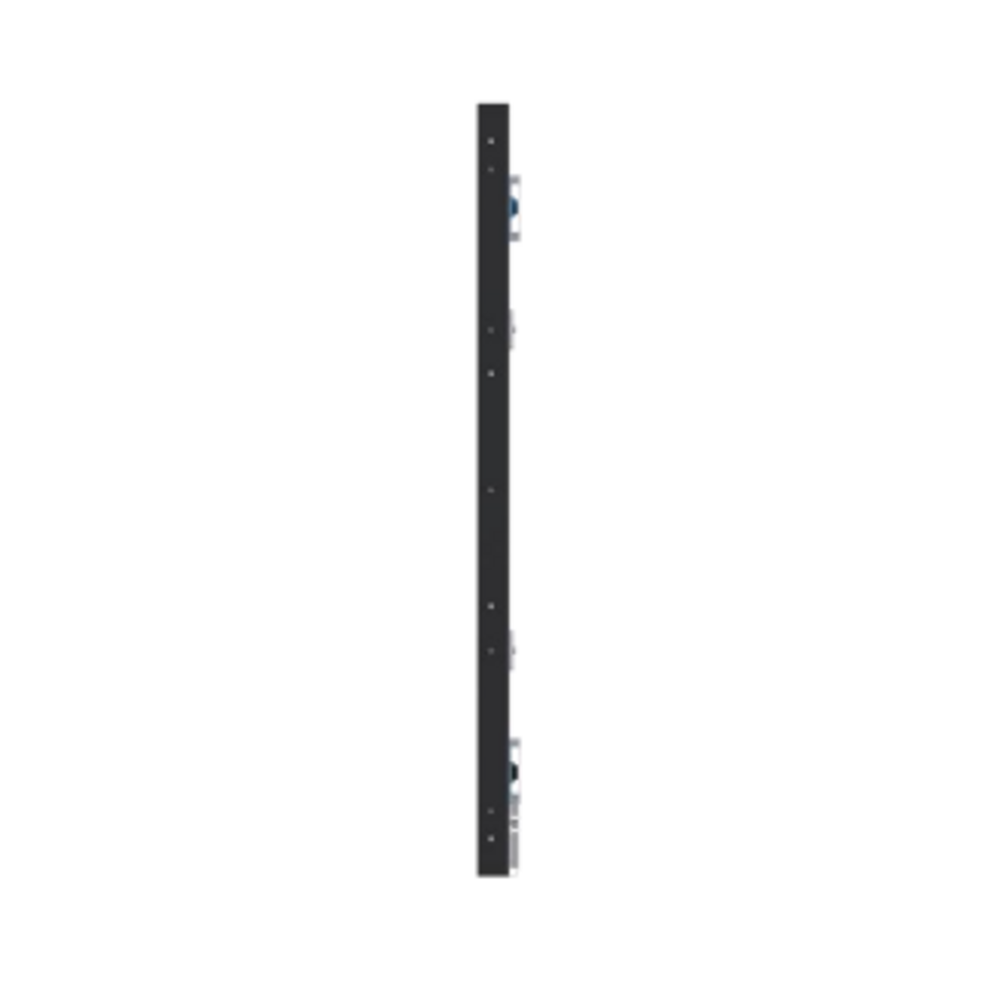

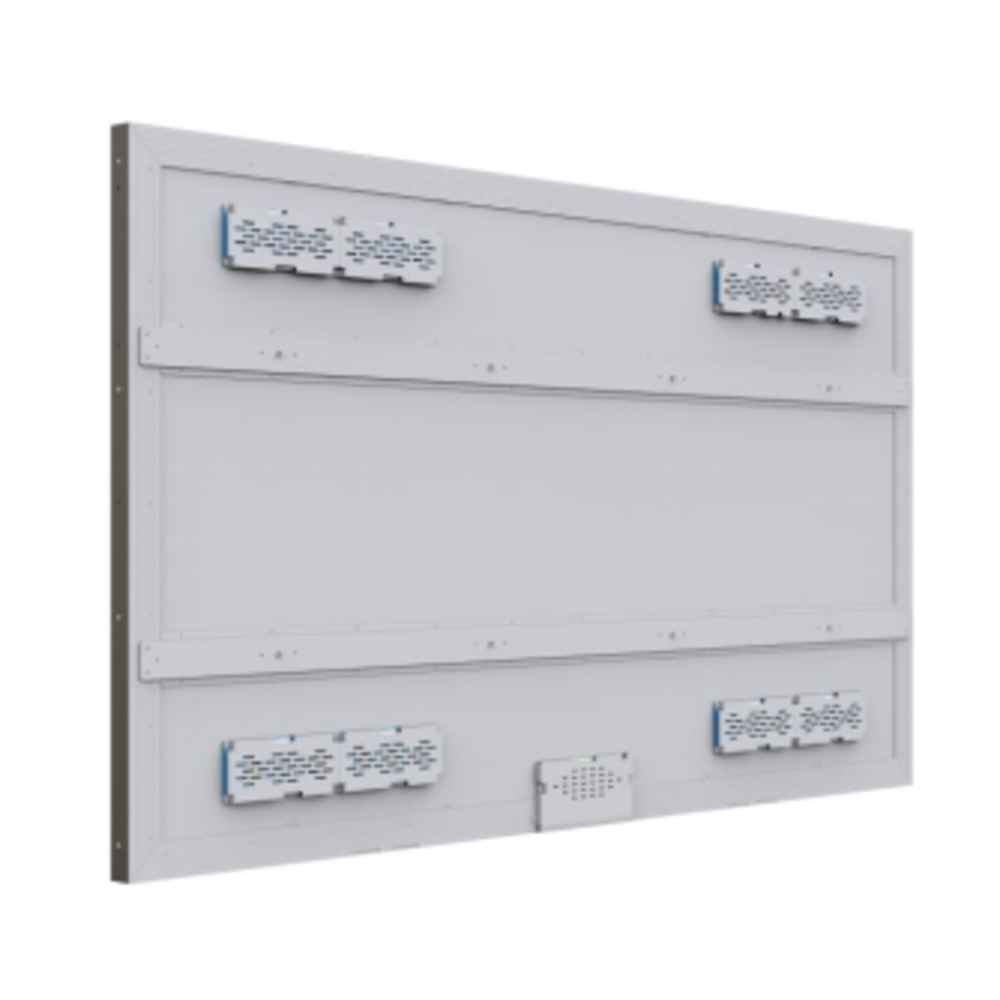

- Outdoor Aluminum Structure: The module uses a white aluminum structure suitable for customized outdoor display systems.
- Landscape and Portrait Installation: Supports horizontal or vertical installation according to the final enclosure and application design.
- Flexible System Integration: Suitable for commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects.
Configuration Options
| Model Number | Platform | Resolution | Brightness | Power Consumption |
Operating Temperature |
Overall Dimensions |
Picture |
|---|---|---|---|---|---|---|---|
| HYL-DM750-LU01-10 | LU01 4K Wide-T 68°C Surface Grade |
3840 × 2160 | 1000 nits | 246W | 0°C to 50°C | 1685.80 × 964.00 × 52.50 mm |
 |
| HYL-DM750-LU01-15 | 1500 nits | 316W | |||||
| HYL-DM750-LU01-20 | 2000 nits | 396W | |||||
| HYL-DM750-LU01-25 | 2500 nits | 452W | |||||
| HYL-DM750-LU01-30 | 3000 nits | 597W | |||||
| HYL-DM750-LU02-10 | LU02 4K Wide-T 80°C Surface Grade |
3840 × 2160 | 1000 nits | 360W | -30°C to 80°C | ||
| HYL-DM750-LU02-15 | 1500 nits | 460W | |||||
| HYL-DM750-LU02-20 | 2000 nits | 540W | |||||
| HYL-DM750-LU02-25 | 2500 nits | 657W | |||||
| HYL-DM750-LU02-30 | 3000 nits | 868W |
Technical Configuration
| Configuration Item | Series Details |
|---|---|
| Screen Size | 75 inch |
| Resolution | 3840 × 2160 4K UHD |
| Brightness Options | 1000, 1500, 2000, 2500, and 3000 nits |
| LCD Platforms | LU01 4K Wide-T / LD750DGY-SRA2; LU02 4K Wide-T / DV750QUB-R01 |
| Backlight Type | DLED high-brightness backlight |
| Refresh Rate | 60Hz |
| Dimming Mode | Manual or automatic brightness adjustment, approximately 30%-100% |
| Viewing Angle | +89°/-89° horizontal and +89°/-89° vertical typical |
| Active Area | LU01: 1649.70 × 927.90 mm; LU02: 1649.664 × 927.936 mm |
| Pixel Pitch | 0.4296 × 0.4296 mm |
| Display Colors | LU01: 10-bit / 1.07 billion colors; LU02: 8-bit + FRC / 1.07 billion colors |
| Response Time | 8 ms typical for both platforms |
| Contrast Ratio | 1200:1 typical for both platforms |
| Color Gamut | LU01: approximately 72% NTSC; LU02: approximately 89% NTSC |
| Haze | LU01: 3%; LU02: 1% |
| Operating Temperature | LU01: 0°C to 50°C; LU02: -30°C to 80°C |
| Storage Temperature | LU01: -20°C to 60°C; LU02: -30°C to 80°C |
| Power Consumption | LU01: 246W / 316W / 396W / 452W / 597W; LU02: 360W / 460W / 540W / 657W / 868W |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm |
| Weight | 38.5 kg ±0.2 |
| Structure | White aluminum outdoor module structure suitable for landscape or portrait integration |
| Touch Panel / AD Board / Speaker | Not included as standard |
| IP Rating | None / None. The LCD module itself is not supplied with an IP rating. |
| Humidity | ≤90% |
| Warranty | 24 months |
| Application Areas | Commercial displays, outdoor digital signage, industrial equipment, transportation systems, exhibitions, information terminals, and customized display projects |
Platform Comparison
| Comparison Item | LU01 4K Wide-T |
LU02 4K Wide-T |
|---|---|---|
| Open Cell | LD750DGY-SRA2 | DV750QUB-R01 |
| Panel Surface Grade | 68°C Wide-T | 80°C Wide-T |
| Resolution | 3840 × 2160 | 3840 × 2160 |
| Pixel Pitch | 0.4296 × 0.4296 mm | 0.4296 × 0.4296 mm |
| Display Colors | 10-bit / 1.07 billion colors | 8-bit + FRC / 1.07 billion colors |
| Response Time | 8 ms typical | 8 ms typical |
| Contrast Ratio | 1200:1 typical | 1200:1 typical |
| Color Gamut | Approx. 72% NTSC | Approx. 89% NTSC |
| Haze | 3% | 1% |
| Brightness Options | 1000 / 1500 / 2000 / 2500 / 3000 nits | 1000 / 1500 / 2000 / 2500 / 3000 nits |
| Power Range | 246W / 316W / 396W / 452W / 597W | 360W / 460W / 540W / 657W / 868W |
| Operating Temperature | 0°C to 50°C | -30°C to 80°C |
| Storage Temperature | -20°C to 60°C | -30°C to 80°C |
Mechanical Drawing

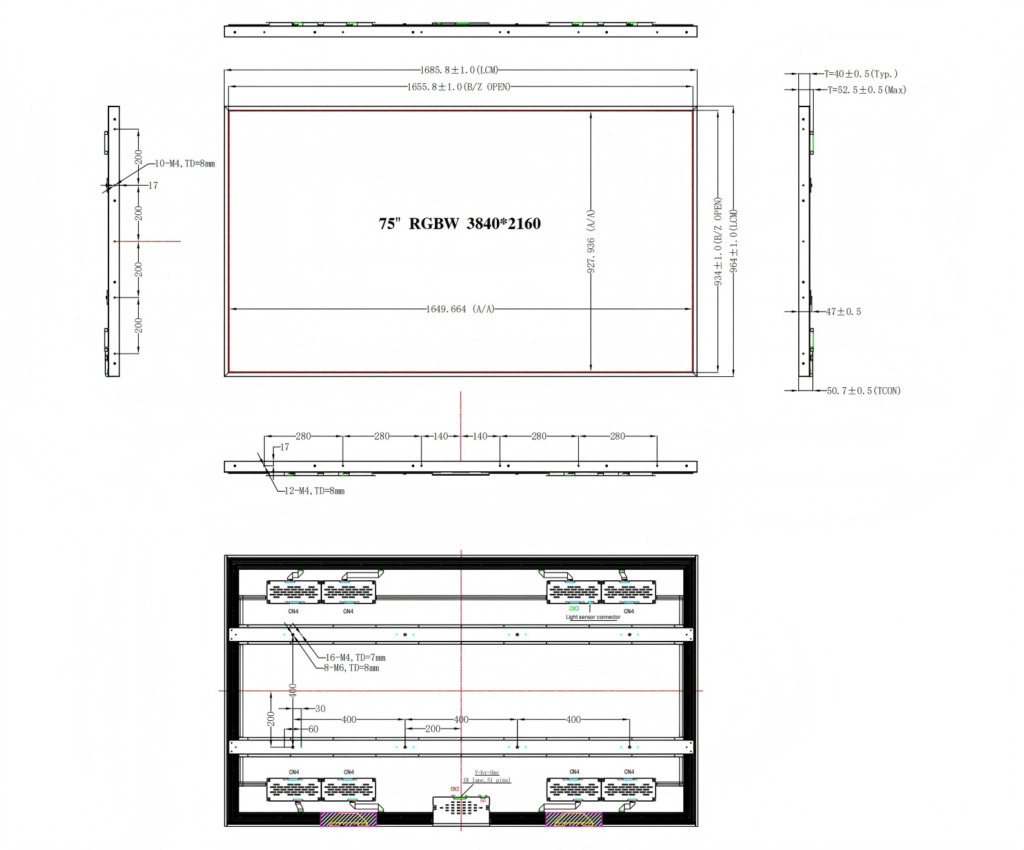

The 75-inch series includes separate V1 and V0 mechanical drawing versions. Please confirm the applicable mechanical drawing according to the selected LU01 or LU02 platform before enclosure design, system integration, or mass production.
The 75-inch LU01 and LU02 platforms share the same nominal overall module dimensions and use one common mechanical drawing type for this product page. Please confirm the final mechanical drawing before enclosure design, system integration, or mass production.
