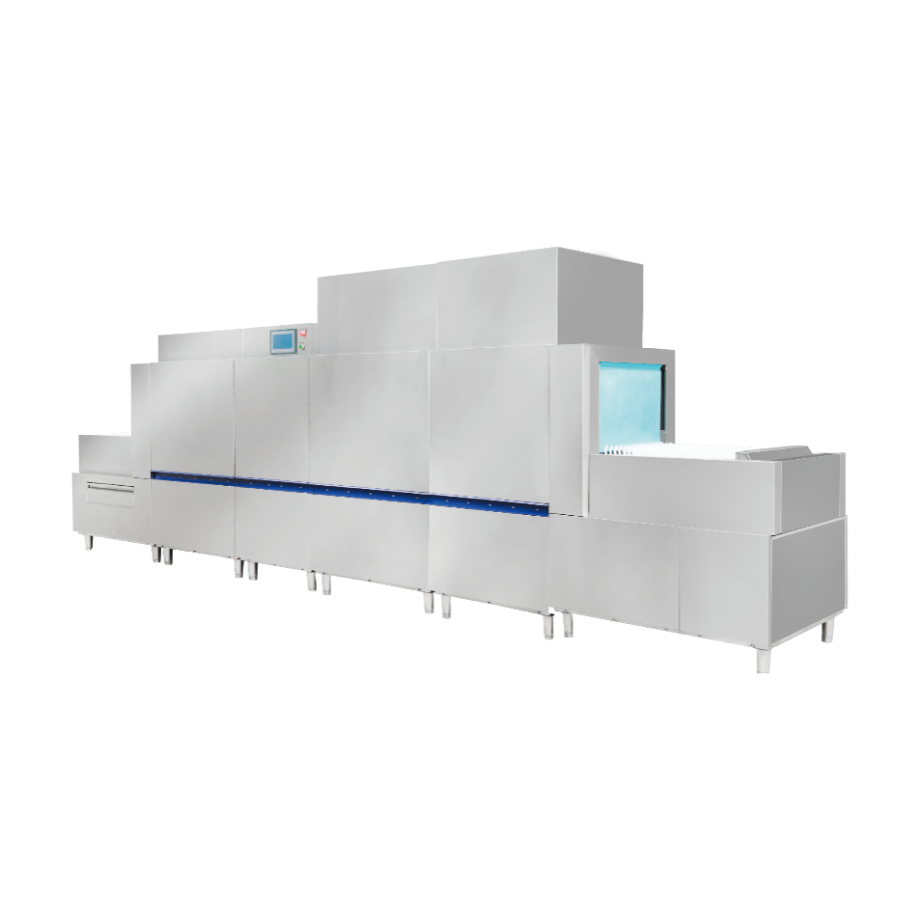

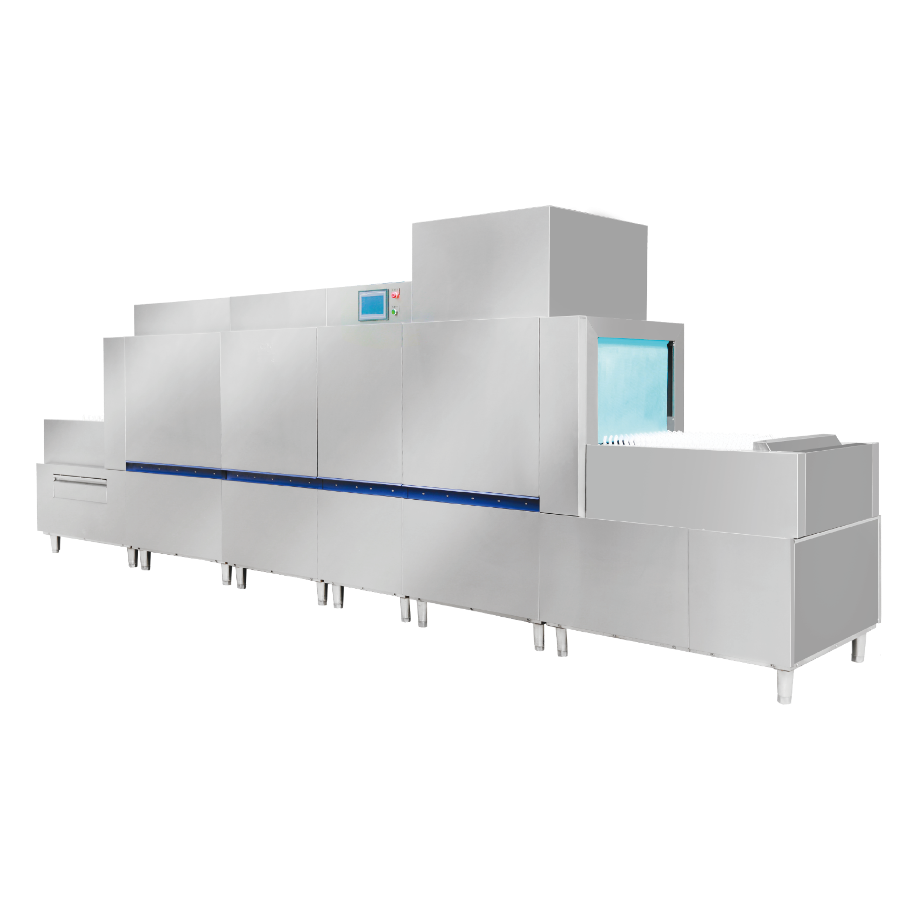

飞行式洗碗机 6500 系列（30.5-80 千瓦）

This flight-type dishwasher series is designed for the most demanding ultra-high-volume warewashing operations in hotel banquet kitchens, central kitchens, institutional canteens, and industrial catering facilities. With a cleaning capacity of up to 6500 dishes per hour, it represents the maximum-throughput solution for the busiest warewashing stations. The series offers multiple drying configurations to suit different workflow and energy supply requirements.

The series includes four models covering two drying configurations: a single dryer version and a double dryer version. Both configurations feature extended wash zones with a main wash temperature of 65°C and a rinse temperature of 85°C. Each model is available as a standard version accepting ambient-temperature inlet water, or as an energy-saving version optimized for 50°C to 60°C pre-heated inlet water, which reduces power consumption from 78 kW to 30.5 kW depending on configuration. All models share a water consumption of 450 L per hour.

All primary structure components are manufactured from grade 304 stainless steel for corrosion resistance and hygiene in demanding wet environments. Water supply uses a G3/4 inch inlet, and drainage uses a G1-1/2 inch drain outlet. The extended flight-type conveyor with multiple wash and drying zones allows continuous and uninterrupted loading of diverse ware types, making these machines the ideal choice for facilities that cannot compromise on throughput or drying performance.

产品特点

• Designed for ultra-high-volume continuous warewashing with a long flight-type conveyor.
• Maximum cleaning capacity of 6500 dishes per hour.
• Single dryer and double dryer configurations available.
• 标准型号接受常温进水；节能型号接受 50-60°C 的预热水。
• 每小时耗水 450 升。
• 主洗温度为 65°C，最后漂洗温度为 85°C。
• 304 级不锈钢结构，经久耐用。
• G3/4 英寸进水口和 G1-1/2 英寸排水口。
• 380 伏电源，适用于所有型号。

应用领域

Suitable for hotel banquet kitchens, central kitchens, institutional canteens, industrial catering facilities, and other maximum-capacity foodservice environments that require the highest-throughput continuous flight-type dishwashing with integrated hot air drying.

技术配置
