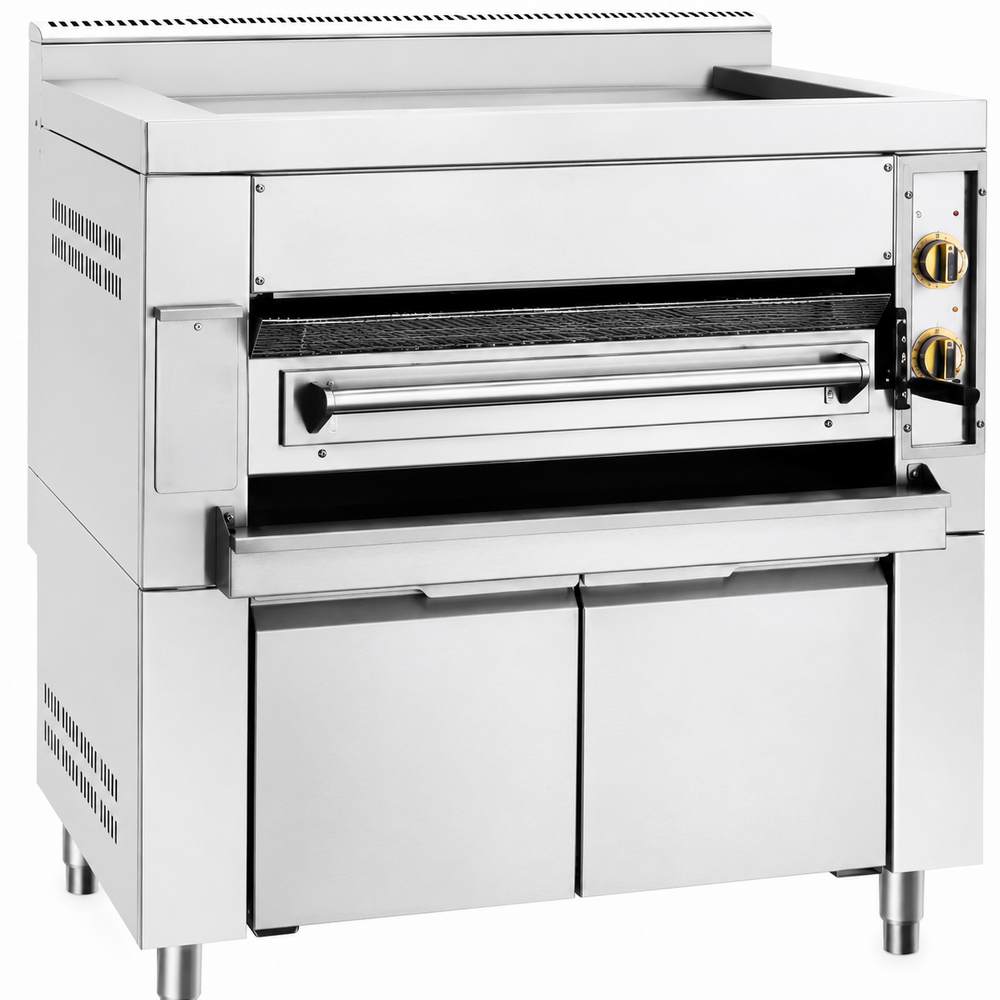

Electric Overhead Barbecue Grill Series (18–24 kW)

This electric overhead barbecue grill series is designed for commercial grilling, barbecue cooking, meat preparation, seafood grilling, vegetable grilling, and hot kitchen operation. It is suitable for restaurants, hotel kitchens, western kitchens, barbecue restaurants, food courts, catering kitchens, central kitchens, and other professional foodservice environments.

The series uses electric infrared heating from the top section. Food does not directly contact an open flame, helping reduce burning risk while supporting stable grilling performance. Infrared heating provides fast heat transfer and helps retain moisture in ingredients during cooking.

Two power configurations are available: 18 kW and 24 kW. Each model uses 380V / 50Hz power supply. The heating system is divided into upper and lower control groups, allowing operators to adjust heating intensity according to different cooking requirements.

The pull-out grilling rack can be raised or lowered to control the cooking temperature near the food surface. The effective grilling area is 750 × 650 mm. Removable oil guide pans and oil collection boxes support easier daily cleaning and maintenance.

The unit uses air insulation to reduce contamination risk from insulation materials. A cooling fan is included to protect electrical wiring and reduce body temperature during operation. The 18 mm thick low-alloy steel griddle plate measures 855 × 625 mm, and a hard chrome surface can be selected according to project requirements.

Product Features

• Designed for commercial grilling, barbecue cooking, meat preparation, seafood grilling, and vegetable grilling.
• Electric overhead infrared heating supports fast heat transfer and stable cooking performance.
• Food does not directly contact an open flame, helping reduce burning risk.
• 18 kW and 24 kW power options are available.
• Upper and lower heating groups support separate control.
• Energy switch control allows flexible heat adjustment.
• Maximum temperature control up to 300 °C.
• Adjustable pull-out grilling rack supports convenient food loading and cooking control.
• 750 × 650 mm effective grilling area supports commercial kitchen operation.
• Removable oil guide pan and oil collection box support easier cleaning.
• Cooling fan helps protect electrical wiring and reduce body temperature.
• 18 mm thick low-alloy steel griddle plate with optional hard chrome surface.

Application Areas

Suitable for restaurants, hotel kitchens, western kitchens, barbecue restaurants, food courts, catering kitchens, central kitchens, open kitchens, grilling stations, and commercial foodservice areas that require electric overhead barbecue grilling equipment.

Technical Configuration
