商用电磁炉中式炒锅系列（15-34 千瓦）

This commercial induction Chinese wok range series includes single-wok, double-wok, rear station, and no-rear-station models with 15–34 kW power options. Selected models use Φ400 mm or Φ500 mm microcrystal concave heating panels and include Ø500 mm or Ø600 mm iron woks, making the series suitable for Chinese restaurants, hotels, central kitchens, canteens, and commercial foodservice operations.

    申请报价

    请输入您的电子邮件地址，我们将尽快给您回复。

    分类： 品牌：

    This commercial induction Chinese wok range series is designed for Chinese restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, school kitchens, factory dining halls, and high-demand foodservice operations. It is suitable for stir-frying, boiling, sauce preparation, soup heating, and daily commercial Chinese cooking.

    The series includes single-wok, double-wok, rear station, and no-rear-station configurations. Power options include 15 kW, 17 kW, 20 kW, 30 kW, 32 kW, and 34 kW models, allowing customers to choose a suitable structure according to kitchen layout, cooking volume, and menu requirements.

    Selected models are equipped with Φ400 mm or Φ500 mm microcrystal concave heating panels and matching Ø500 mm or Ø600 mm iron woks. The concave induction structure is suitable for Chinese wok cooking and helps provide concentrated heating performance for commercial stir-frying applications.

    The main structure uses 304-grade stainless steel panels. Selected models use 1.5 mm thick 304-grade stainless steel countertop panels, 1.0 mm thick front panels, side panels, and back panels, and 430-grade 2.0 mm frame structures. Some models use a double-layer countertop with thermal insulation cotton for better heat insulation.

    产品特点

    • Designed for commercial Chinese stir-frying, boiling, soup heating, and sauce preparation.
    • Available in single-wok, double-wok, rear station, and no-rear-station configurations.
    • 15 kW to 34 kW power options for different kitchen output requirements.
    • Selected models use Φ400 mm or Φ500 mm microcrystal concave heating panels.
    • Selected models include Ø500 mm or Ø600 mm iron wok configuration.
    • 304-grade stainless steel panels support hygienic and durable commercial kitchen operation.
    • Selected models use double-layer insulated countertop structure.
    • Suitable for restaurants, hotels, central kitchens, canteens, and catering operations.

    应用领域

    Suitable for Chinese restaurants, hotel kitchens, central kitchens, catering kitchens, canteens, school kitchens, factory dining halls, food courts, and other commercial foodservice areas that require reliable induction Chinese wok cooking equipment.

    型号 产品名称 电源配置 Heating Panel / Wok 主要材料 产品尺寸 产品图像

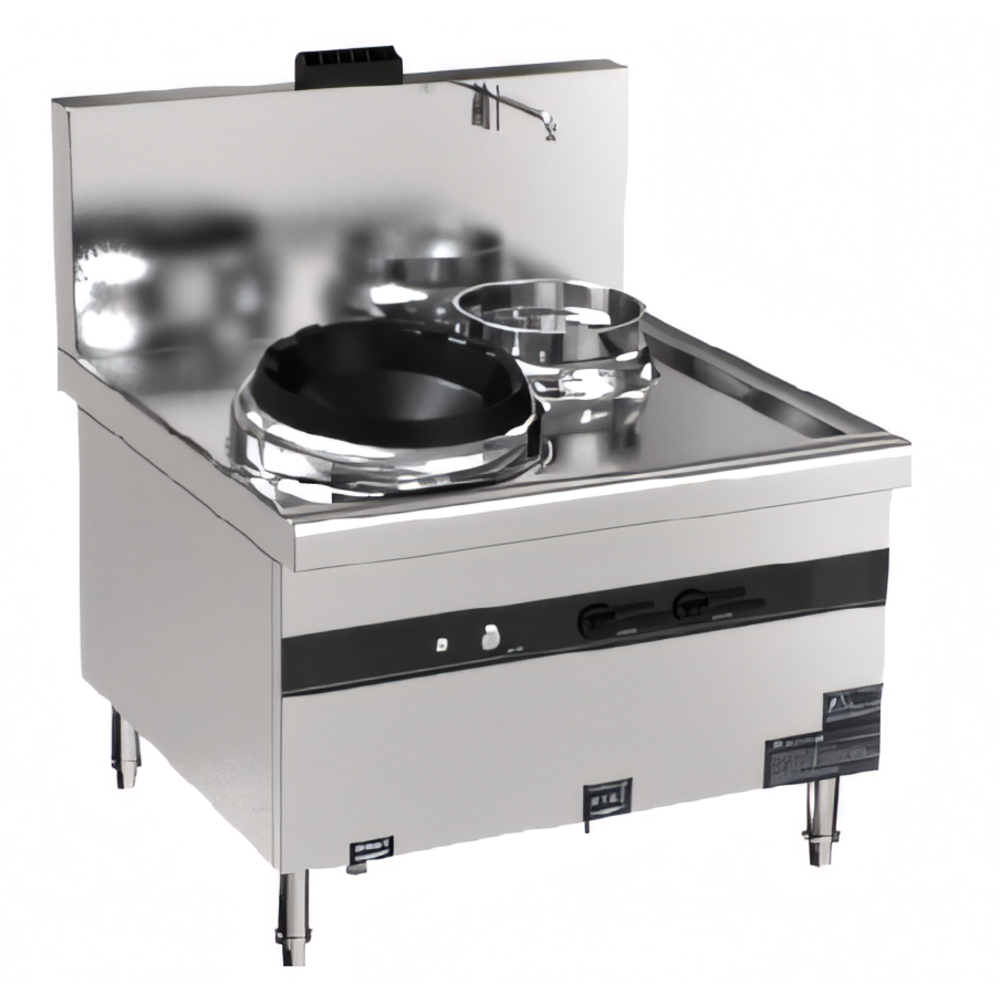

    HYL-CK-CHR-DCCL01 Single-Wok Induction Chinese Wok Range with Rear Station 380V 3N / 50Hz, 15 kW + 2 kW Φ400 mm microcrystal concave panel, 1 × Ø500 mm iron wok 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel panels; 2.0 mm 430-grade frame; double-layer insulated countertop 1000 × 1100 × 1250 mm HYL-CK-CHR-DCCL01
    HYL-CK-CHR-DCCL02 Double-Wok Induction Chinese Wok Range with Rear Stations 380V 3N / 50Hz, (15 kW + 2 kW) × 2 Φ400 mm microcrystal concave panel, 2 × Ø500 mm iron woks 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel panels; 2.0 mm 430-grade frame; double-layer insulated countertop 2000 × 1100 × 1250 mm HYL-CK-CHR-DCCL02

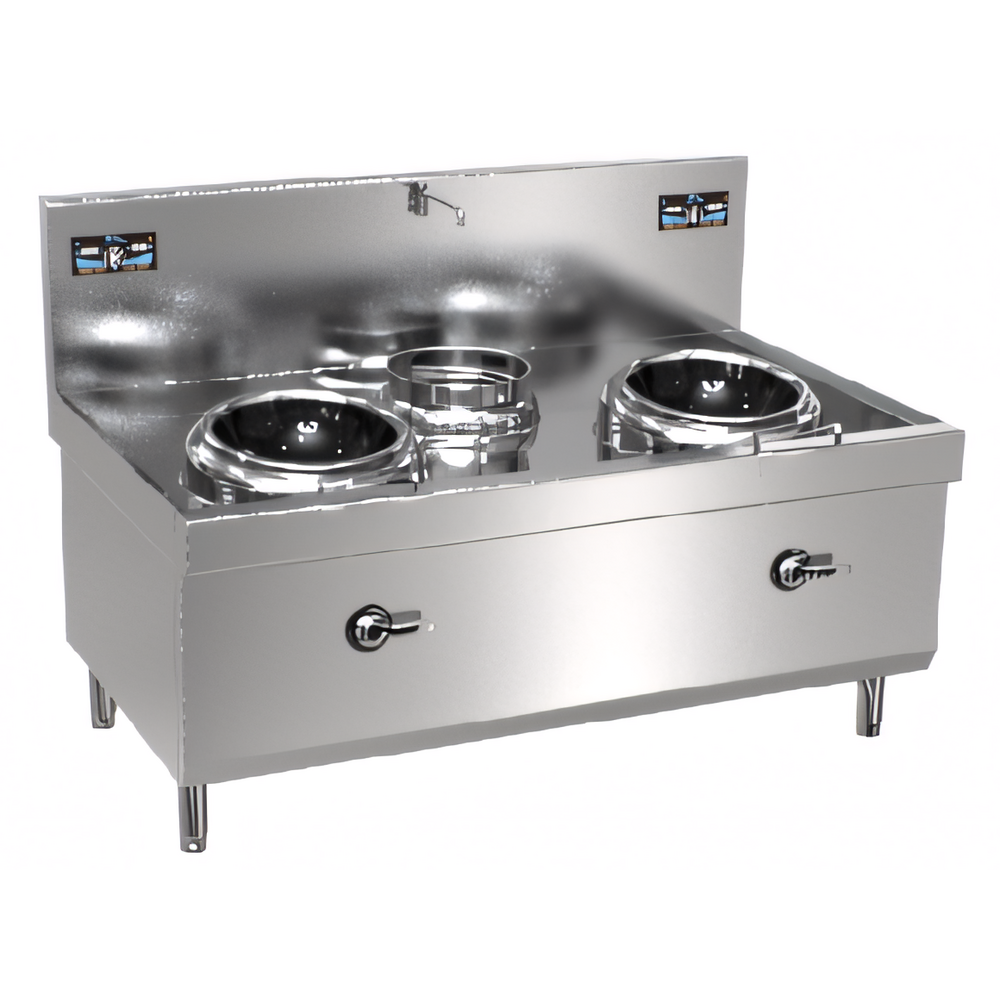

    HYL-CK-CHR-DCCL03 Double-Wok Induction Chinese Wok Range with Single Rear Station 380V 3N / 50Hz, 15 kW × 2 + 2 kW Φ400 mm microcrystal concave panel, 2 × Ø500 mm iron woks 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel panels; 2.0 mm 430-grade frame; double-layer insulated countertop 1800 × 1100 × 1250 mm HYL-CK-CHR-DCCL03

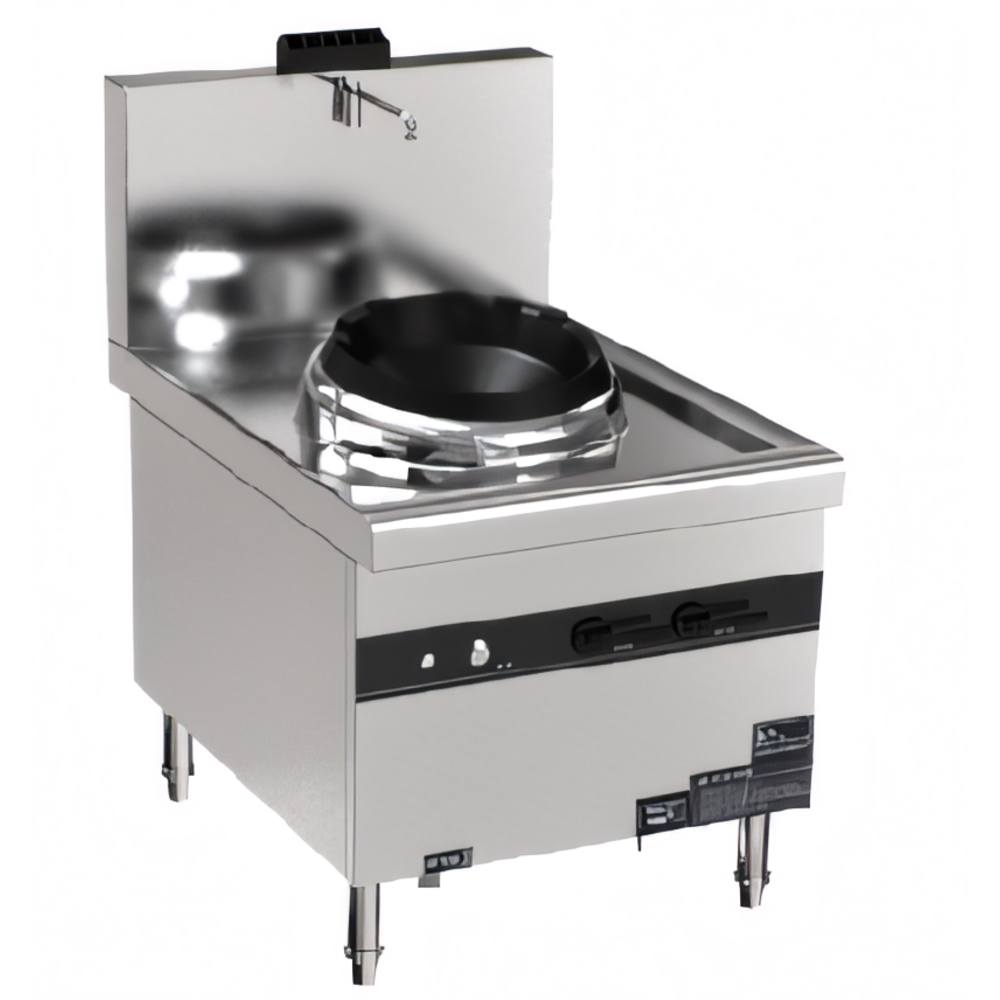

    HYL-CK-CHR-DCCL09 Single-Wok Induction Chinese Wok Range without Rear Station 380V 3-phase / 50Hz, 15 kW 1 × Ø500 mm iron wok 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front, side, and back panels 800 × 900 × 1250 mm HYL-CK-CHR-DCCL09

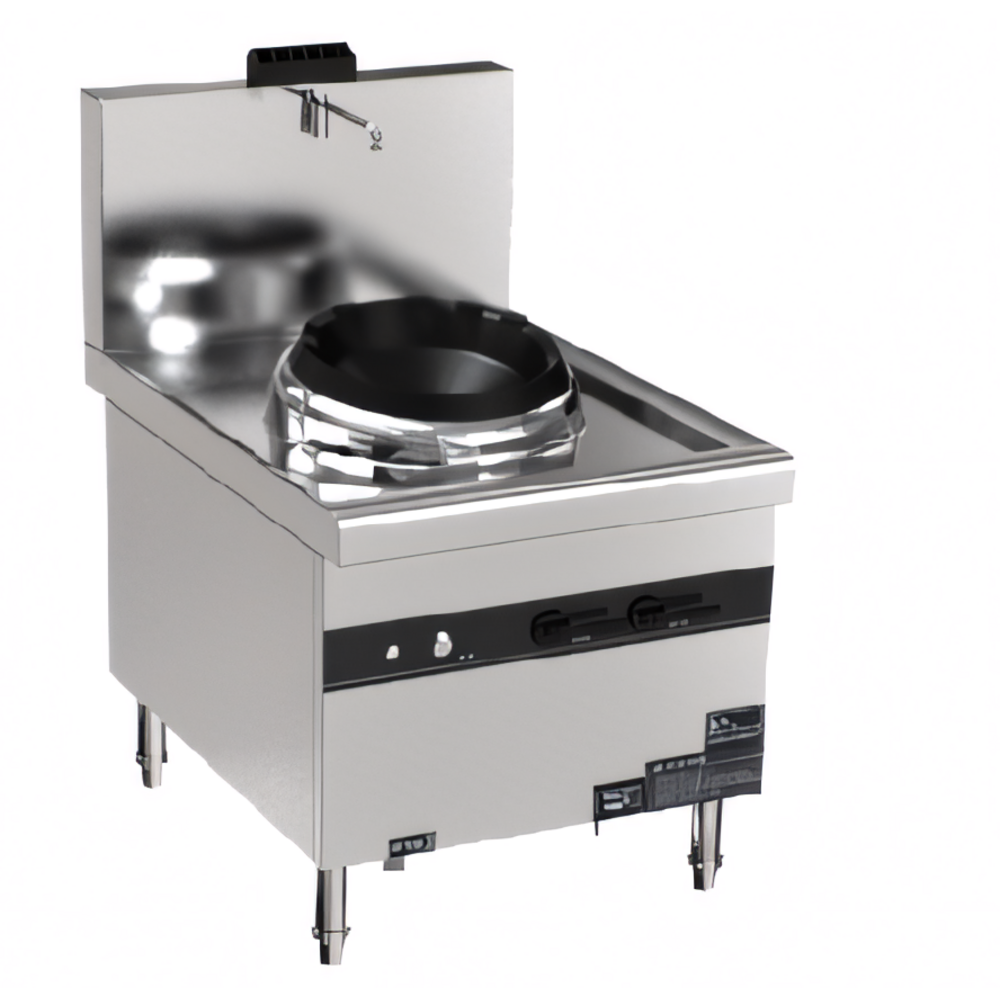

    HYL-CK-CHR-DCCL10 Single-Wok Frameless Induction Chinese Wok Range without Rear Station 380V + E, 50/60Hz, 15 kW Φ400 mm microcrystal concave panel, 1 × Ø500 mm iron wok Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front, side, and back panels 800 × 900 × 1250 mm HYL-CK-CHR-DCCL10
    HYL-CK-CHR-DCCL11 Single-Wok Frameless Induction Chinese Wok Range with Rear Station 380V + E, 50/60Hz, 15 kW Φ400 mm microcrystal concave panel, 1 × Ø500 mm iron wok Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front, side, and back panels 1000 × 1100 × 1250 mm HYL-CK-CHR-DCCL11

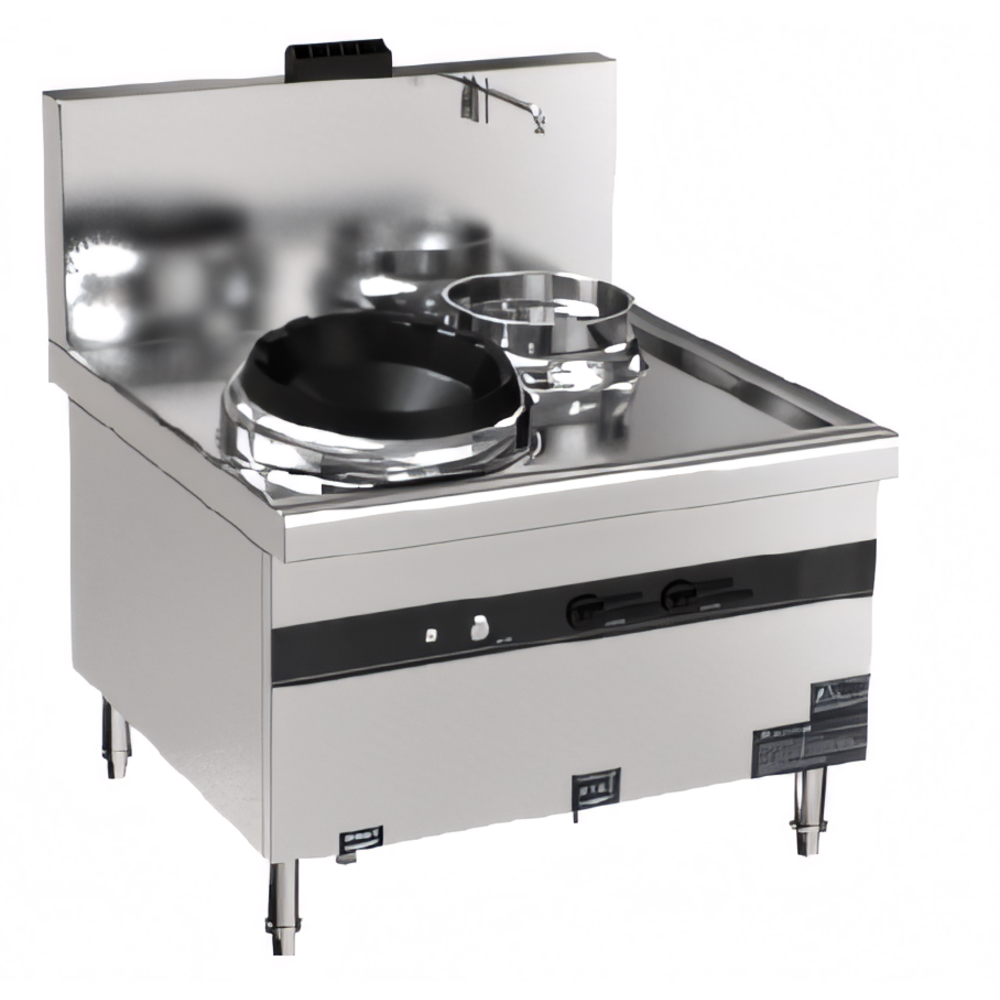

    HYL-CK-CHR-DCCL12 Single-Wok Frameless Induction Chinese Wok Range with Rear Station 380V + E, 50/60Hz, 20 kW Φ500 mm microcrystal concave panel, 1 × Ø600 mm iron wok Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front, side, and back panels 1100 × 1100 × 1250 mm HYL-CK-CHR-DCCL12
    HYL-CK-CHR-DCCL13 Double-Wok Frameless Induction Chinese Wok Range with Single Rear Station 380V + E, 50/60Hz, 15 kW + 15 kW Φ400 mm microcrystal concave panel, 2 × Ø500 mm iron woks Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front, side, and back panels 1800 × 1100 × 1250 mm HYL-CK-CHR-DCCL13

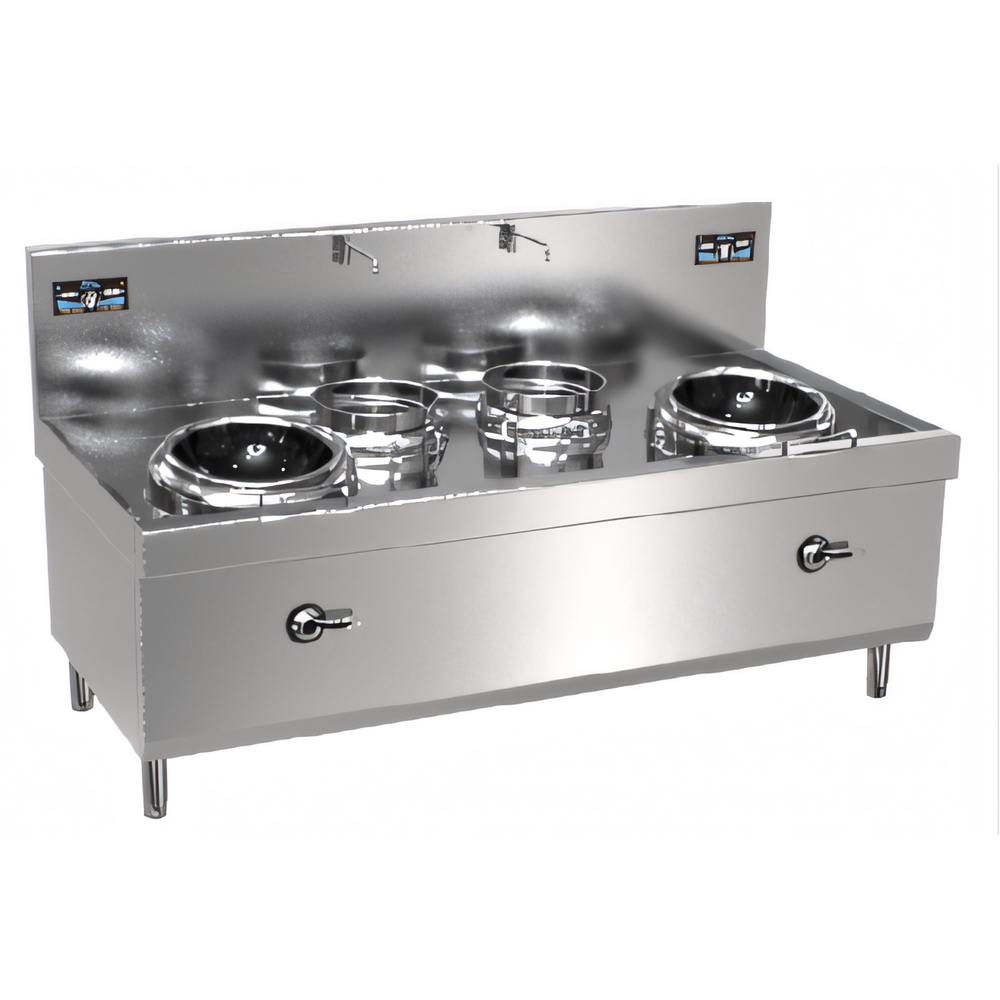

    HYL-CK-CHR-DCCL14 Double-Wok Frameless Induction Chinese Wok Range with Rear Stations 380V + E, 50/60Hz, 15 kW + 15 kW Φ400 mm microcrystal concave panel, 2 × Ø500 mm iron woks Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel front, side, and back panels 2000 × 1100 × 1250 mm HYL-CK-CHR-DCCL14

    技术配置

    配置项目 系列详情
    烹饪应用 Chinese stir-frying, boiling, sauce preparation, soup heating, and daily commercial cooking
    Structure Options Single-wok, double-wok, rear station, no-rear-station, framed structure, and frameless structure models are available
    Heating Panel Options Φ400 mm and Φ500 mm microcrystal concave heating panels are available depending on model configuration
    Wok Configuration Selected models include Ø500 mm or Ø600 mm iron wok
    背板高度 450 mm back panel height
    主要材料 Selected models use 1.5 mm 304-grade stainless steel countertop, 1.0 mm 304-grade stainless steel front panel, side panels, and back panel; selected framed models use 2.0 mm 430-grade frame and double-layer insulated countertop
