商用电磁大型炒锅系列（Φ700–Φ1000毫米）
Commercial Induction Large Wok Stove Series (Φ700–Φ1000 mm) - 图片 2

商用电磁大型炒锅系列（Φ700–Φ1000毫米）

This commercial induction large wok stove series includes single-wok and double-wok models with Φ700 mm to Φ1000 mm large wok options. Power options range from 15 kW to 50 kW, making the series suitable for large-batch stir-frying, soup preparation, sauce cooking, braising, and high-volume Chinese cooking in restaurants, hotels, central kitchens, canteens, and catering operations.

    索取报价

    输入您的邮箱，我们会尽快回复您。.

    分类： 品牌：

    This commercial induction large wok stove series is designed for high-volume Chinese cooking in restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, school kitchens, factory dining halls, and commercial foodservice operations. It is suitable for large-batch stir-frying, boiling, soup preparation, sauce cooking, braising, and other heavy-duty Chinese cooking tasks.

    The series includes single-wok and double-wok configurations, with large wok diameter options from Φ700 mm to Φ1000 mm. Power options range from 15 kW to 50 kW, allowing customers to choose the suitable model according to cooking volume, kitchen layout, and daily production requirements.

    Selected models use a framed structure with a 2.0 mm 430-grade stainless steel frame and double-layer insulated countertop. Selected models use a frameless structure with 304-grade stainless steel panels. The countertop is made from 1.5 mm thick 304-grade stainless steel, while selected front, side, and back panels are made from 1.0 mm thick 304-grade stainless steel.

    The large wok structure is suitable for high-volume food preparation and commercial Chinese cooking methods. The 450 mm back panel height helps reduce splashing during cooking and supports cleaner kitchen operation.

    产品特点

    • Designed for large-batch Chinese stir-frying, boiling, soup cooking, sauce preparation, and commercial kitchen production.
    • Available in single-wok and double-wok configurations.
    • Large wok diameter options from Φ700 mm to Φ1000 mm.
    • Power options from 15 kW to 50 kW for different kitchen output requirements.
    • Selected models use framed structure with double-layer insulated countertop.
    • Selected models use frameless structure for a clean and practical kitchen design.
    • 304级不锈钢面板支持卫生且耐用的商业操作。.
    • 450 mm back panel height supports cleaner cooking operation.

    应用领域

    Suitable for Chinese restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, school kitchens, factory dining halls, food courts, and other commercial foodservice areas that require high-volume induction wok cooking equipment.

    型号 产品名称 Wok Diameter 电源配置 结构配置 产品尺寸 产品图片
    HYL-CK-CHR-DCCL04 Single-Wok Induction Large Wok Stove Φ800 mm 380V 3-phase / 50Hz, 20 kW Framed structure; 2.0 mm 430-grade frame; double-layer insulated countertop; 450 mm back panel height 1000 × 1100 × 1250 mm HYL-CK-CHR-DCCL04
    HYL-CK-CHR-DCCL05 Single-Wok Induction Large Wok Stove Φ900 mm 380V 3-phase / 50Hz, 25 kW Framed structure; 2.0 mm 430-grade frame; double-layer insulated countertop; 450 mm back panel height 1100 × 1200 × 1250 mm HYL-CK-CHR-DCCL05

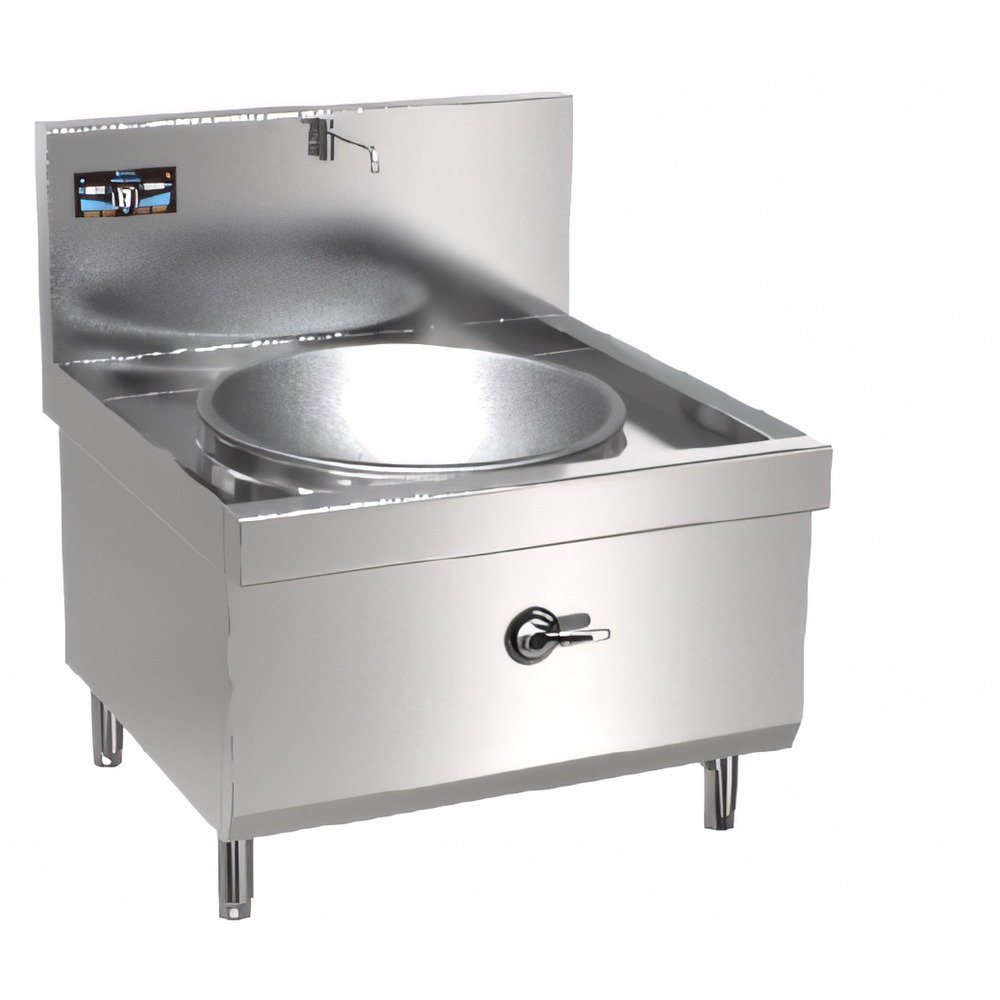

    HYL-CK-CHR-DCCL06 Single-Wok Induction Large Wok Stove Φ1000 mm 380V 3-phase / 50Hz, 30 kW Framed structure; 2.0 mm 430-grade frame; double-layer insulated countertop; 450 mm back panel height 1200 × 1300 × 1250 mm HYL-CK-CHR-DCCL06

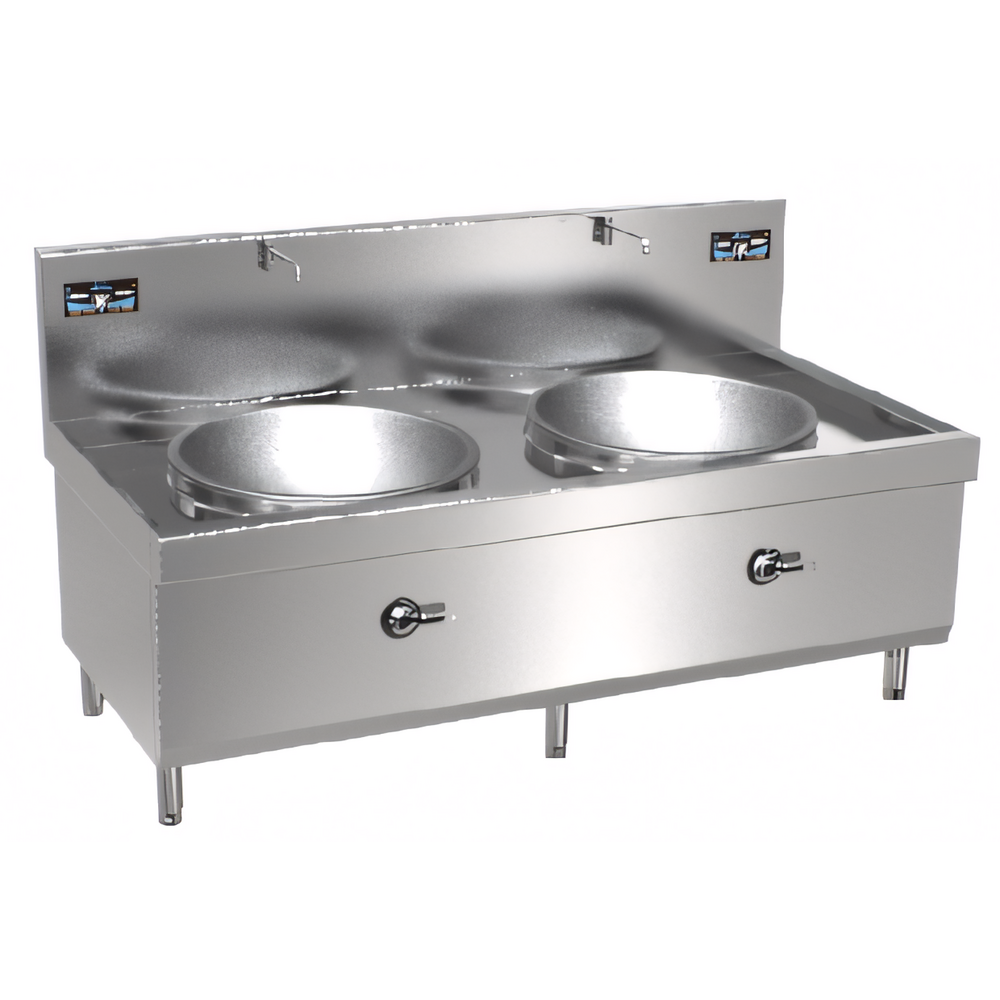

    HYL-CK-CHR-DCCL07 Double-Wok Induction Large Wok Stove Φ800 mm × 2 380V 3-phase / 50Hz, 20 kW × 2 = 40 kW Framed structure; 2.0 mm 430-grade frame; double-layer insulated countertop; 450 mm back panel height 2000 × 1100 × 1250 mm HYL-CK-CHR-DCCL07
    HYL-CK-CHR-DCCL08 Double-Wok Induction Large Wok Stove Φ900 mm × 2 380V 3-phase / 50Hz, 25 kW × 2 = 50 kW Framed structure; 2.0 mm 430-grade frame; double-layer insulated countertop; 450 mm back panel height 2200 × 1200 × 1250 mm HYL-CK-CHR-DCCL08
    HYL-CK-CHR-DCCL15 Single-Wok Frameless Induction Large Wok Stove Φ700 mm 380V + E, 50/60Hz, 15 kW Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel panels; 450 mm back panel height 900 × 1000 × 1250 mm HYL-CK-CHR-DCCL15
    HYL-CK-CHR-DCCL16 Single-Wok Frameless Induction Large Wok Stove Φ800 mm 380V + E, 50/60Hz, 20 kW Frameless structure; 1.5 mm 304-grade stainless steel countertop; 1.0 mm 304-grade stainless steel panels; 450 mm back panel height 1000 × 1100 × 1250 mm HYL-CK-CHR-DCCL16
    HYL-CK-CHR-DCCL17 Single-Wok Induction Large Wok Stove Φ900 mm 380V + E, 50/60Hz, 25 kW 450 mm 背板高度 1100 × 1200 × 1250 mm HYL-CK-CHR-DCCL17

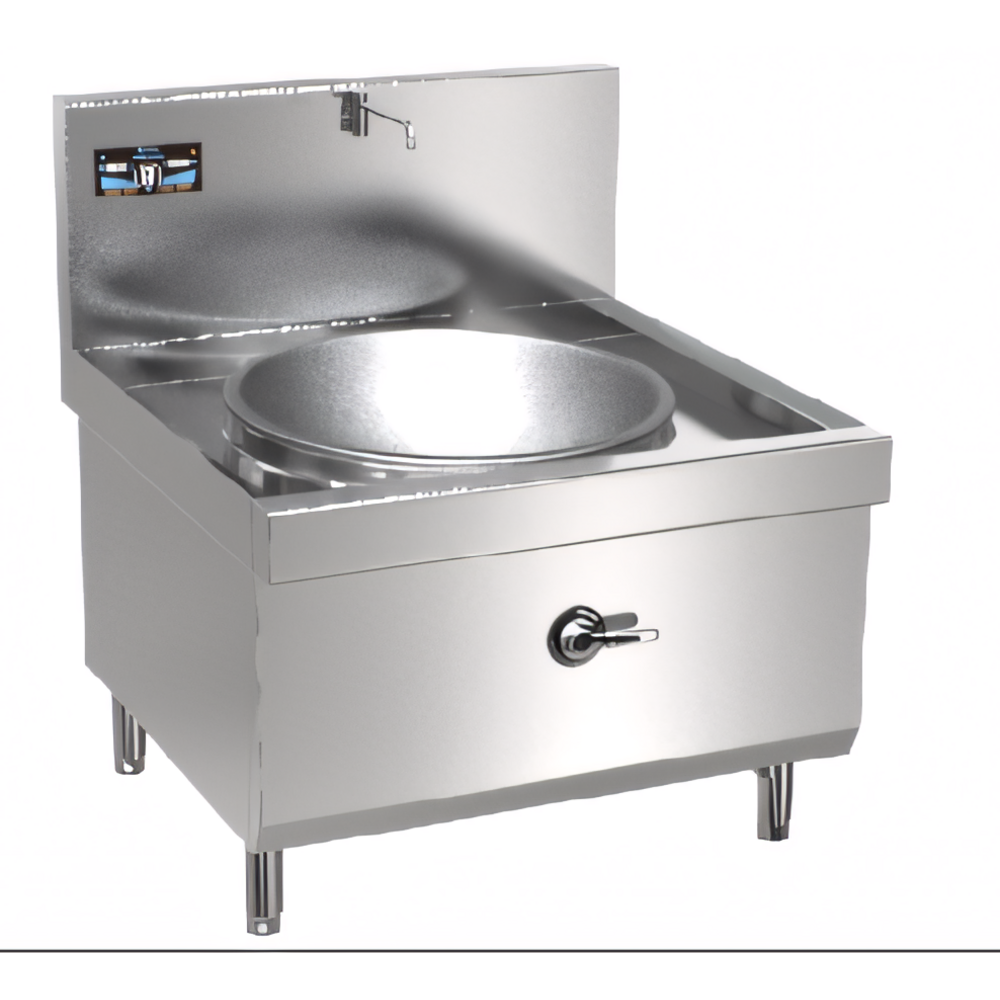

    HYL-CK-CHR-DCCL18 Single-Wok Induction Large Wok Stove Φ1000 mm 380V + E, 50/60Hz, 30 kW 450 mm 背板高度 1200 × 1300 × 1250 mm HYL-CK-CHR-DCCL18

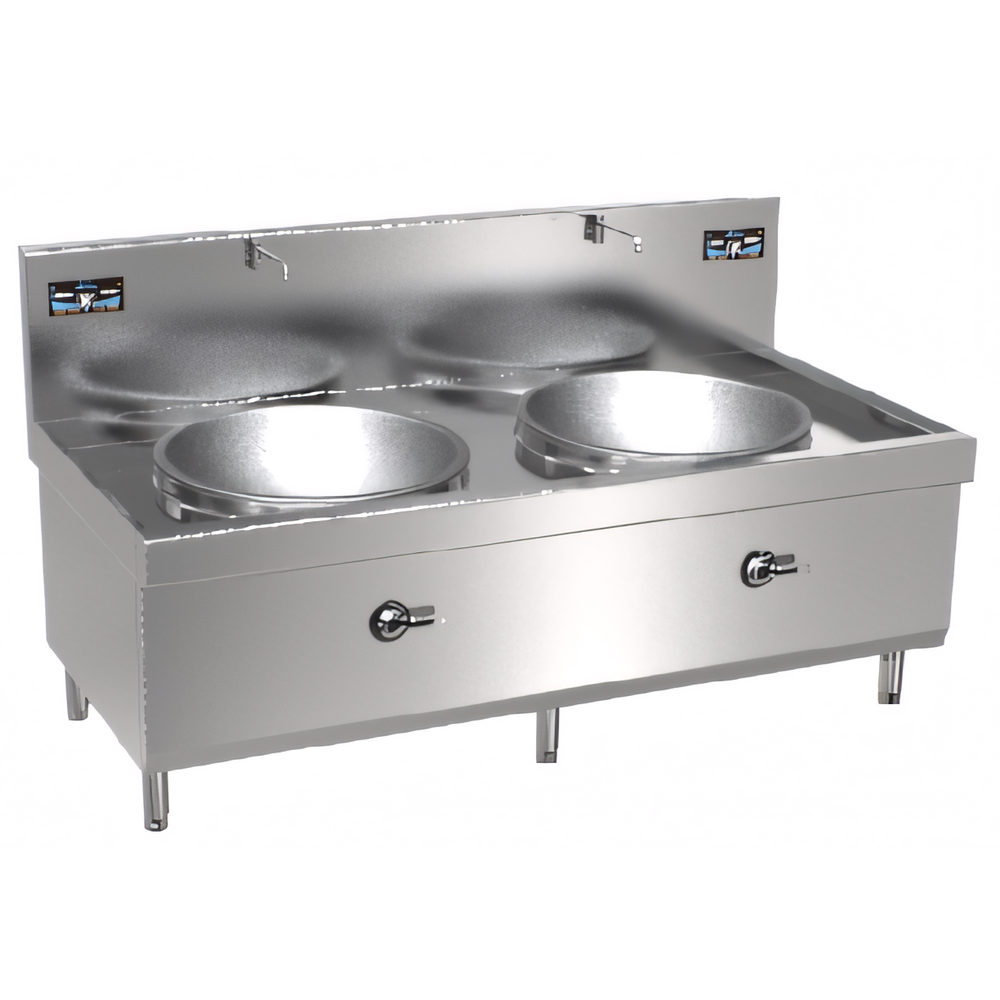

    HYL-CK-CHR-DCCL19 Double-Wok Induction Large Wok Stove Φ700 mm × 2 380V + E, 50/60Hz, 15 kW + 15 kW = 30 kW 450 mm 背板高度 1800 × 1000 × 1250 mm HYL-CK-CHR-DCCL19
    HYL-CK-CHR-DCCL20 Double-Wok Induction Large Wok Stove Φ800 mm × 2 380V + E, 50/60Hz, 20 kW + 20 kW = 40 kW 450 mm 背板高度 2000 × 1100 × 1250 mm HYL-CK-CHR-DCCL20
    HYL-CK-CHR-DCCL21 Double-Wok Induction Large Wok Stove Φ900 mm × 2 380V + E, 50/60Hz, 25 kW + 25 kW = 50 kW 450 mm 背板高度 2200 × 1200 × 1250 mm HYL-CK-CHR-DCCL21

    技术配置

    配置项 系列详情
    烹饪应用 大批量翻炒、煮沸、制汤、酱料烹饪、炖煮及高产量中式烹饪
    炒锅直径选项 提供Φ700 mm、Φ800 mm、Φ900 mm及Φ1000 mm大炒锅选项
    Structure Options 提供单炒灶、双炒灶、框架结构及无框架结构型号
    背板高度 450 mm 背板高度
    主要材料 部分型号采用1.5 mm 304级不锈钢台面、1.0 mm 304级不锈钢前面板、侧面板及后面板；部分框架型型号采用2.0 mm 430级框架和双层隔热台面
