Electric Steamer Cabinet Series (20–54 kW)

This electric steamer cabinet series is designed for commercial steaming applications in restaurants, hotel kitchens, central kitchens, canteens, catering kitchens, school kitchens, factory dining halls, and prepared meal production areas. It is suitable for steaming rice, vegetables, seafood, meat products, dim sum, meal trays, GN pans, and other prepared food items.

The series includes single-door electric steamer cabinets, three-door electric steamer cabinets, intelligent four-chamber steamer cabinets, split-opening double-door steamer cabinets, viewing glass door trolley steamer cabinets, and solid door trolley steamer cabinets. With 20 kW to 54 kW power options, the series can support different kitchen capacities, food production methods, and installation requirements.

Selected models are equipped with low-water protection, magnetic scale treatment pipe, insulated stainless steel water tank, automatic water replenishment, timing control, temperature holding function, chamber lighting, and dedicated drainage design. These features help improve steaming safety, operation convenience, and long-term commercial reliability.

The electric trolley steamer cabinet models are available with different door structures. HYL-CK-CHR-ZG20, HYL-CK-CHR-ZG21, and HYL-CK-CHR-ZG22 are viewing glass door models for easier checking during operation. HYL-CK-CHR-ZG23 is a solid door model without glass window for kitchens that prefer a closed stainless steel door structure.

For hard water areas, a water softening system must be installed before using this equipment to help reduce scale buildup and support long-term stable operation.

产品特点

Designed for commercial steaming, GN pan steaming, meal tray steaming, rice steaming, and prepared food production.
Available in single-door, three-door, four-chamber, split-opening double-door, trolley, glass-door, and solid-door configurations.
20 kW to 54 kW electric power options for different production capacities.
Selected models include low-water protection to help prevent dry heating.
Selected models include magnetic scale treatment pipe for water scale management.
Electric trolley models support timing control, temperature holding function, chamber lighting, and independent steam supply for each steaming layer.
Viewing glass door models allow easier operation checking during steaming.
Solid door model without glass window is available for closed stainless steel door requirements.
304-grade stainless steel structure and insulated water tank design support durable commercial operation.

应用领域

Suitable for restaurants, hotels, central kitchens, catering kitchens, canteens, school kitchens, factory dining halls, food courts, prepared meal production areas, dim sum kitchens, and other commercial foodservice locations that require stable electric steaming equipment.

型号	产品名称	Door Configuration	电源配置	Capacity Configuration	产品尺寸	供水连接

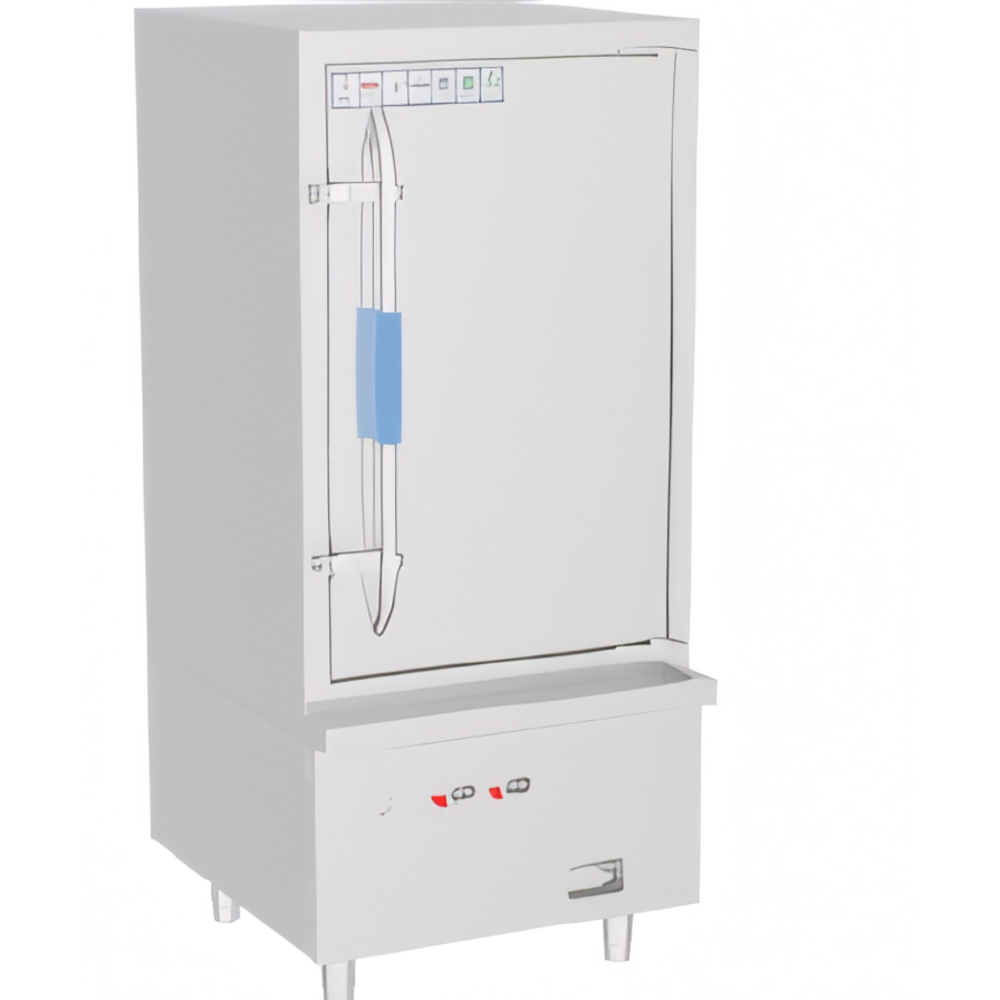

HYL-CK-CHR-ZG15	Single-Door Electric Steamer Cabinet	Standard cabinet door	380V 3N / 50Hz, 27 kW	10 layer racks; low-water protection	800 × 810 × 1800 mm	Configured by project

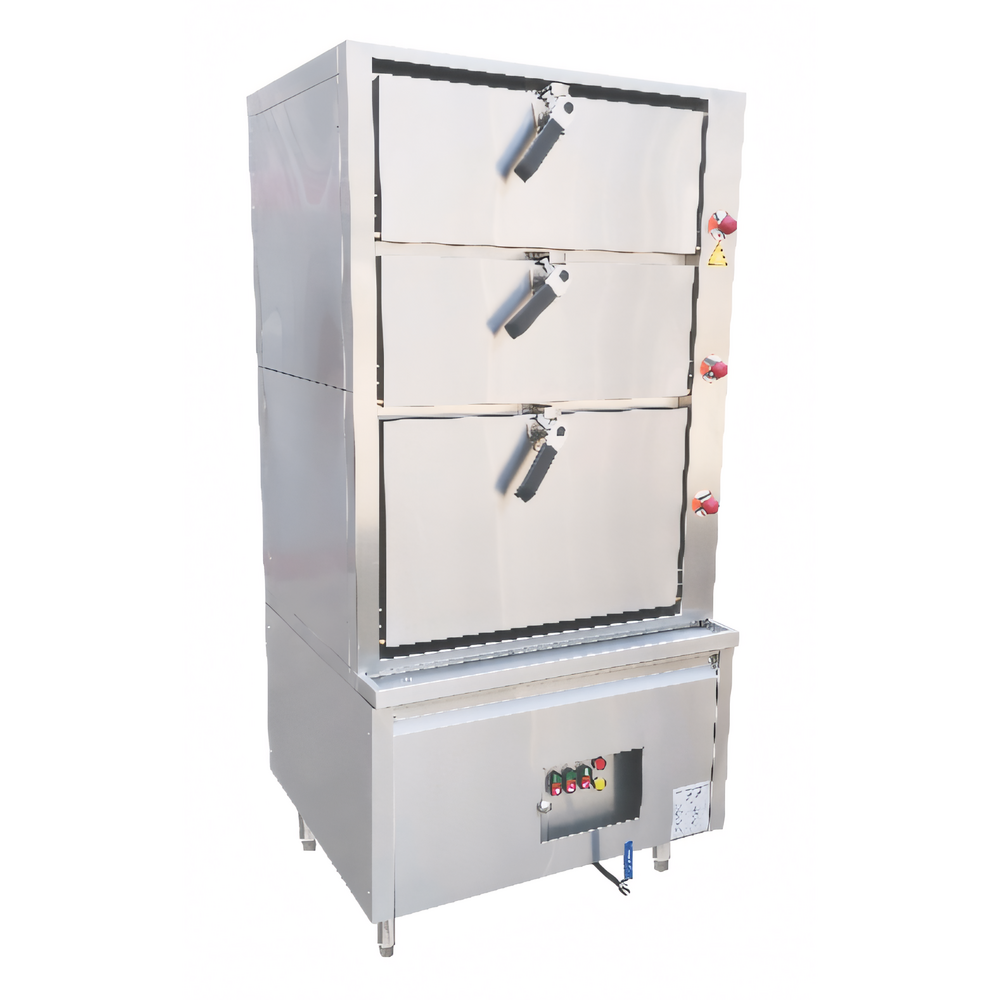

HYL-CK-CHR-ZG16	Three-Door Electric Steamer Cabinet	Standard cabinet door	380V 3N / 50Hz, 36 kW	4 layer racks; low-water protection	900 × 810 × 1900 mm	Water inlet DN15; drain outlet DN40

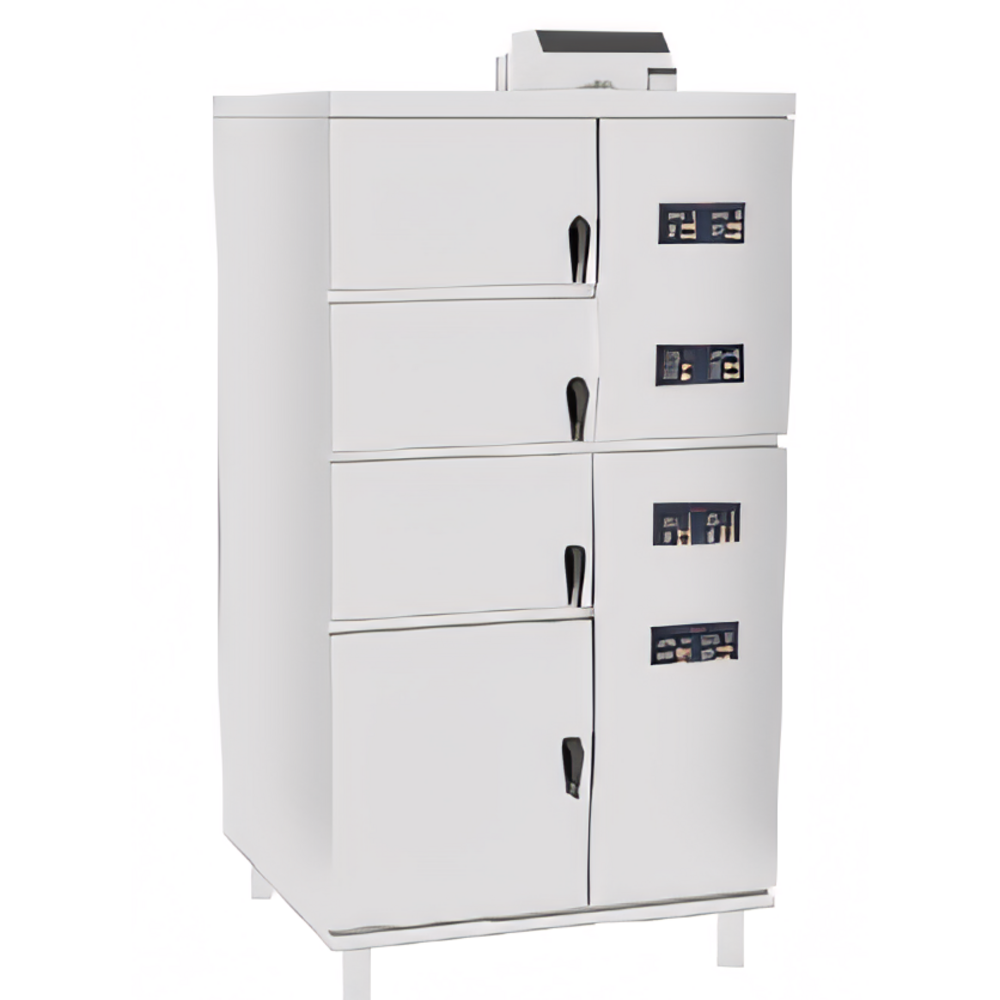

HYL-CK-CHR-ZG17	Four-Chamber Intelligent Electric Steamer Cabinet	Four-chamber door structure	380V 3N / 50Hz, 20 kW	Four independent chambers; suitable for 13 × GN 1/1 pans with 65 mm pan height	835 × 800 × 1700 mm	1/2 inch water inlet; 1.5 inch drain outlet

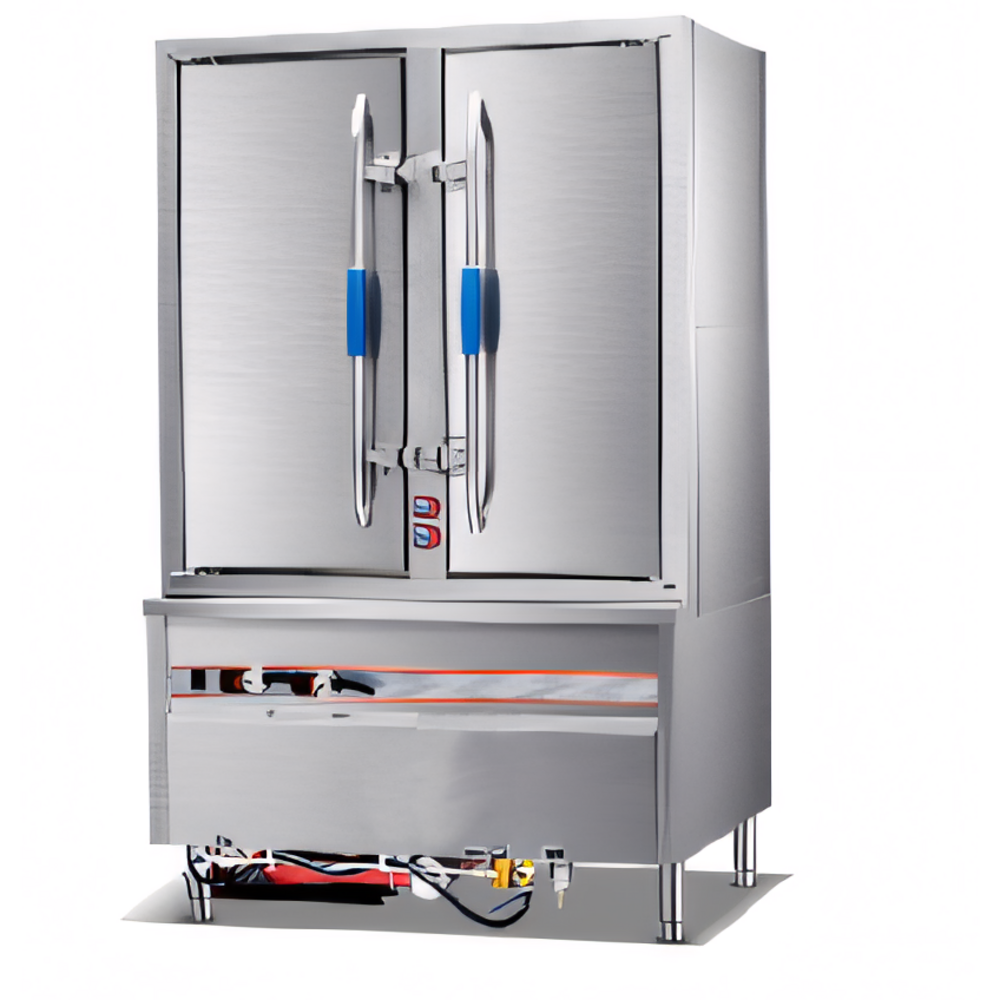

HYL-CK-CHR-ZG18	Split-Opening Electric Steamer Cabinet	Split-opening double door	380V 3N / 50Hz, 36 kW	20 pairs of pan brackets; suitable for 20 × 400 × 600 mm rice steaming pans; pans not included	1150 × 810 × 1800 mm	Water inlet DN15; drain outlet DN40

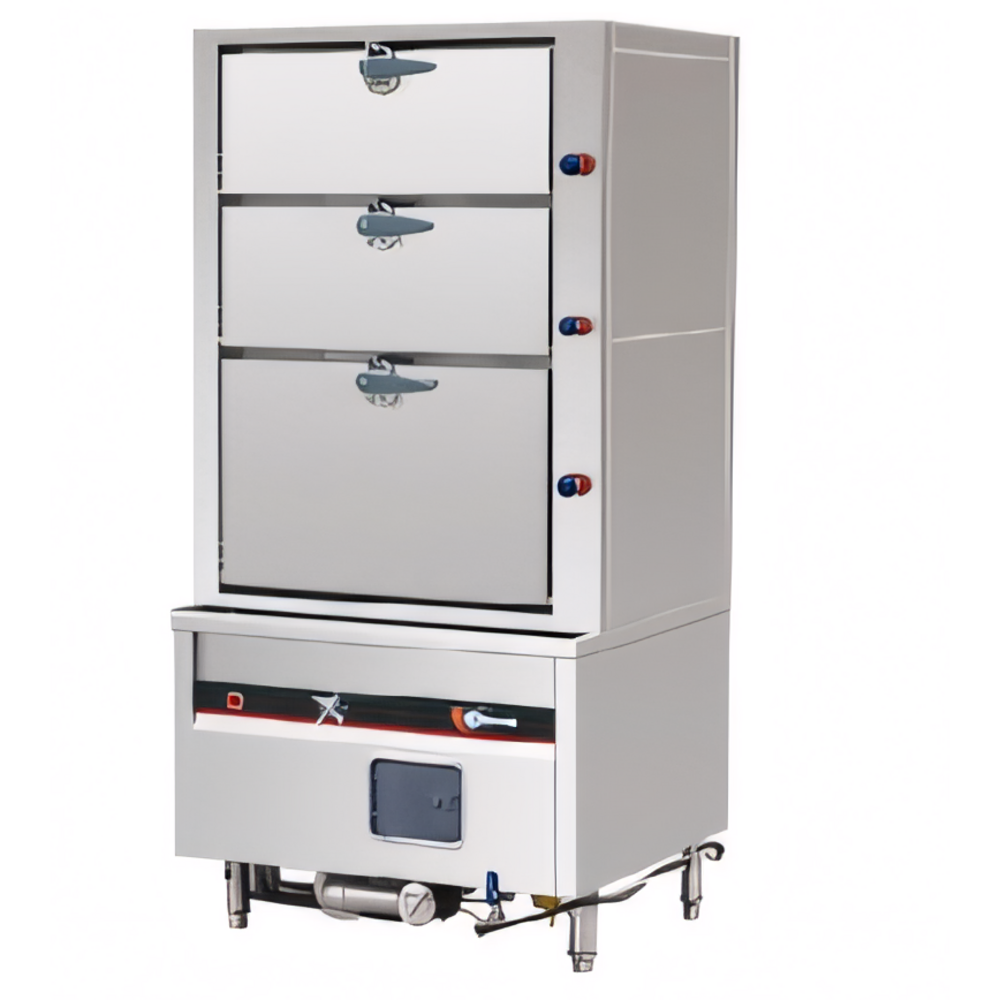

HYL-CK-CHR-ZG19	Wide Three-Door Electric Steamer Cabinet	Standard cabinet door	380V 3N / 50Hz, 36 kW	4 layer racks; low-water protection	1200 × 810 × 1900 mm	Water inlet DN15; drain outlet DN40

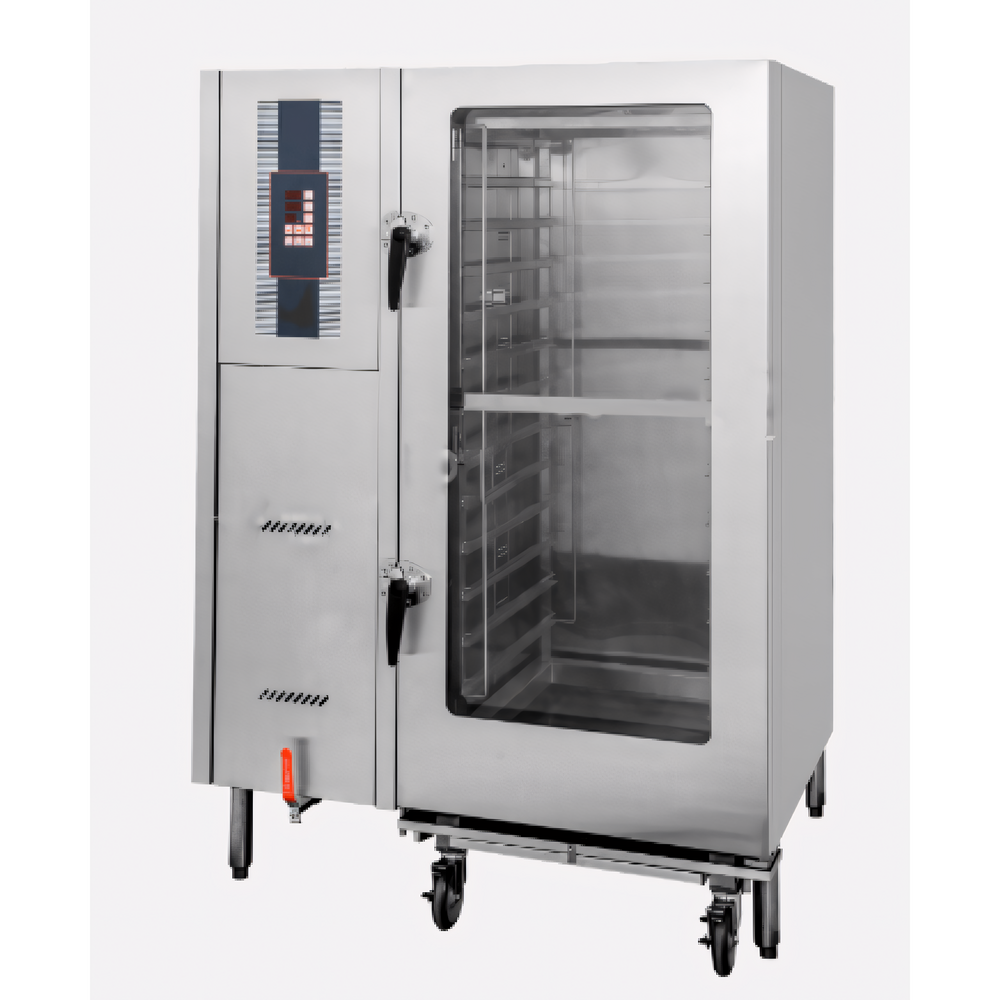

HYL-CK-CHR-ZG20	Viewing Glass Door Electric Trolley Steamer Cabinet	Viewing glass door	380V 3N / 50Hz, 54 kW	20 × GN 2/1 steam trolley; or 40 × GN 1/1 pans; pans not included	1050 × 900 × 1900 mm	Configured by project
HYL-CK-CHR-ZG21	Viewing Glass Door Electric Trolley Steamer Cabinet	Viewing glass door	380V 3N / 50Hz, 54 kW	20 × GN 2/1 steam trolley; or 40 × GN 1/1 pans; pans not included	1050 × 900 × 1900 mm	Configured by project
HYL-CK-CHR-ZG22	Viewing Glass Door 20-Pan Electric Trolley Steamer Cabinet	Viewing glass door	380V 3N / 50Hz, 36 kW + 2 kW	20 × GN 1/1 steam trolley; 1 × GN 1/1 pan per layer; pans not included	900 × 900 × 1900 mm	Configured by project

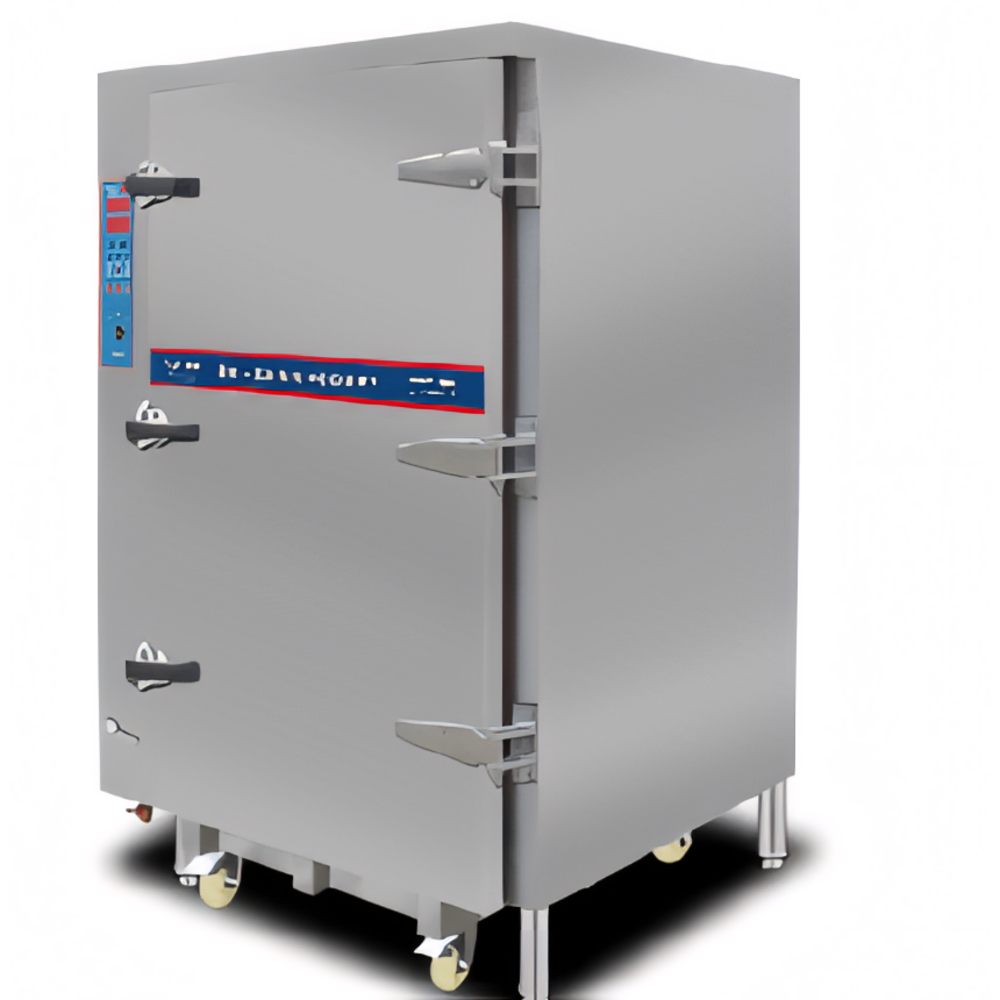

HYL-CK-CHR-ZG23	Solid Door Electric Trolley Steamer Cabinet	Solid door without glass window	380V 3N / 50Hz, 36 kW	20 × GN 2/1 steam trolley; 1 × GN 2/1 pan per layer	1050 × 900 × 1900 mm	Configured by project

技术配置

配置项目	系列配置
门选项	Viewing glass door models: HYL-CK-CHR-ZG20, HYL-CK-CHR-ZG21, HYL-CK-CHR-ZG22; solid door model without glass window: HYL-CK-CHR-ZG23
Electric Safety System	Low-water protection, over-temperature protection, and anti-dry-heating protection are available on selected models
Intelligent Cooking System	HYL-CK-CHR-ZG17 supports independent chamber operation, PID variable-frequency temperature control, multi-stage temperature curve control, and 0–105°C steaming control
Trolley Cabinet Function	Selected trolley models support 0–60 minute timing control, automatic shut-off after set time, 85°C holding function, chamber lighting, independent steam supply for each layer, and dedicated drainage design
Superheated Steam Function	Selected electric trolley models include 3 kW superheated steam function, with cabinet temperature up to 103°C for special heating applications
Water Replenishment	Selected trolley models use automatic water replenishment with float switch or float valve
水垢控制	Selected models include magnetic scale treatment pipe; water softening system must be installed in hard water areas
主要材料	Selected models use 1.2 mm 304-grade stainless steel upper frame or cabinet panels, 1.0 mm 304-grade stainless steel front, side, and back panels, 1.5 mm 304-grade stainless steel water tank, and insulated water tank structure
Water Quality Requirement	Water softening system must be installed in hard water areas
