Western Induction Wok Range Series (15–17 kW Power)

This western induction wok range series is designed for commercial stir-frying, wok cooking, sauce preparation, boiling, and high-output hot kitchen operation. It is suitable for restaurants, hotel kitchens, western kitchens, Asian kitchens, canteens, catering kitchens, central kitchens, food courts, and other professional foodservice environments.

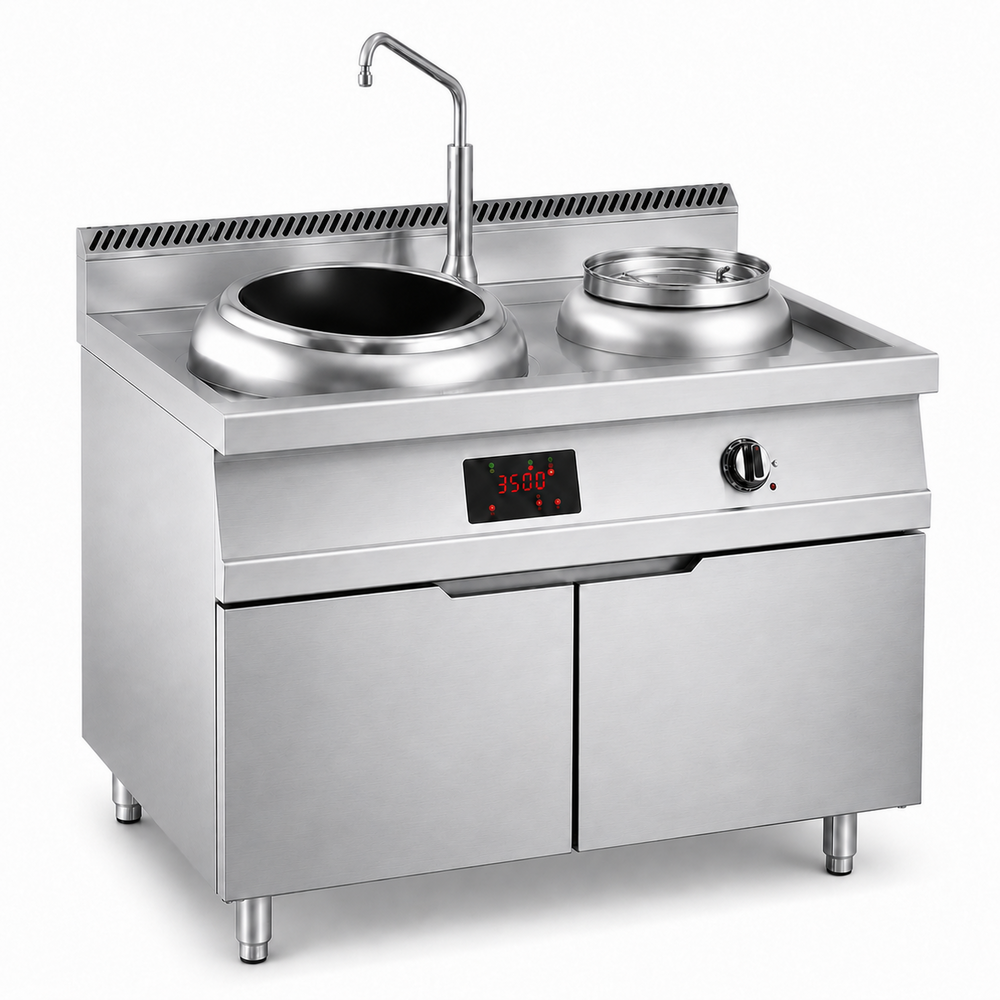

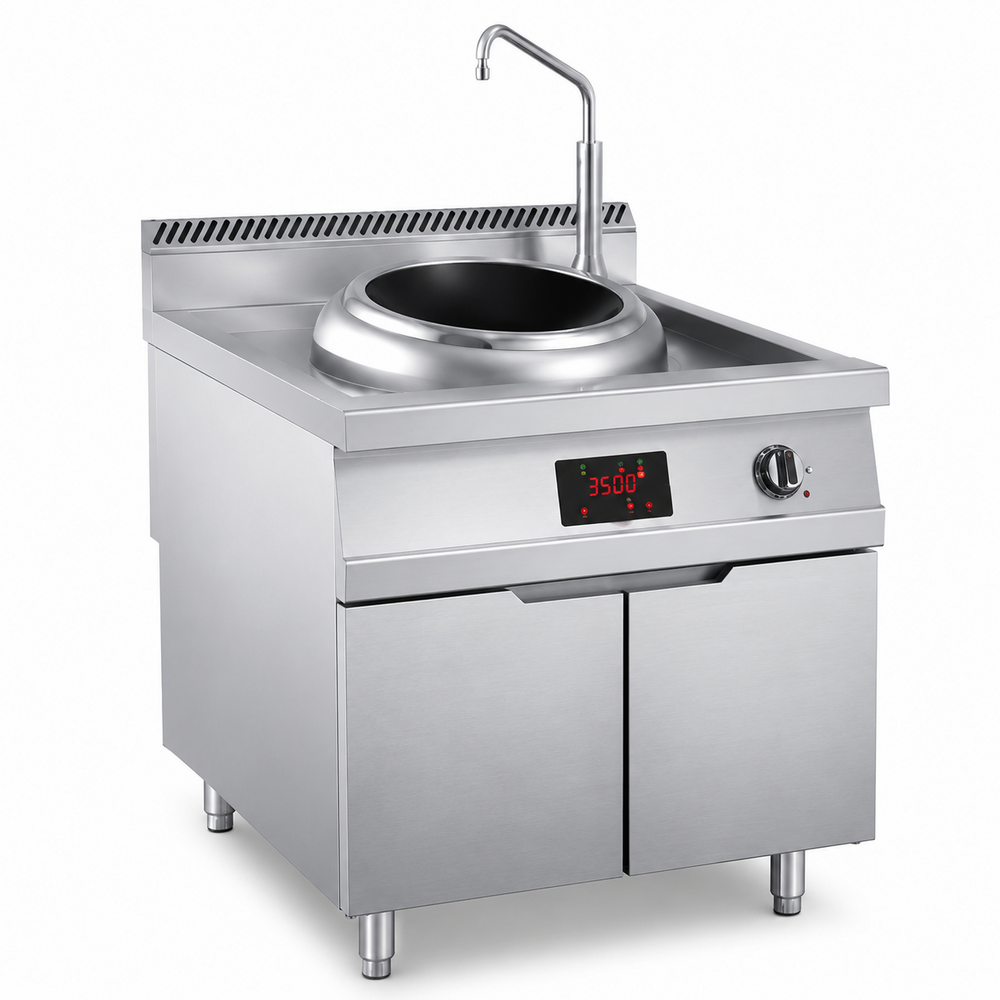

The series includes single-head induction wok range models and a single-head induction wok range with rear utility section. The compact 800 mm width models are suitable for standard cooking stations, while the 1200 mm width model provides additional rear working space for kitchens that require a wider operating area.

All models use SCHOTT black glass cooking surface and are equipped with one Φ18-inch wok. Standard models provide 15 kW induction heating power, while the rear utility section model provides 15 kW + 2 kW power configuration. Water inlet and drain outlet connections are included for professional kitchen operation.

The main structure uses a 430-grade stainless steel frame and 304-grade stainless steel working panels. The countertop uses 1.5 mm thick 304-grade stainless steel, while the control panel uses 1.5 mm thick 304-grade stainless steel. The side panels and back panel use 1.0 mm thick 304-grade stainless steel for long-term commercial kitchen use.

Product Features

• Designed for commercial stir-frying, wok cooking, sauce preparation, boiling, and hot kitchen operation.
• Single-head induction wok range structure for professional cooking stations.
• SCHOTT black glass cooking surface supports a clean and modern working area.
• Each model is equipped with one Φ18-inch wok.
• 15 kW induction heating power for standard models.
• 15 kW + 2 kW power configuration for the rear utility section model.
• DN15 water inlet and DN25 drain outlet are included.
• 750 mm and 900 mm depth configurations are available.
• 1.5 mm thick 304-grade stainless steel countertop supports durable daily operation.
• 430-grade stainless steel frame and 304-grade stainless steel panels support long-term commercial kitchen operation.

Application Areas

Suitable for restaurants, hotel kitchens, western kitchens, Asian kitchens, central kitchens, canteens, catering kitchens, school kitchens, factory dining halls, food courts, and commercial foodservice areas that require induction wok cooking equipment.

Technical Configuration
